Chapter 5 Operator Interface / Programming
Setup
Setup / Door Control
PHOTO 1 ENTER, PHOTO 2 ENTER and PHOTO 2 EXIT all toggle back and forth between NOT USED and USED
IN AUTO.

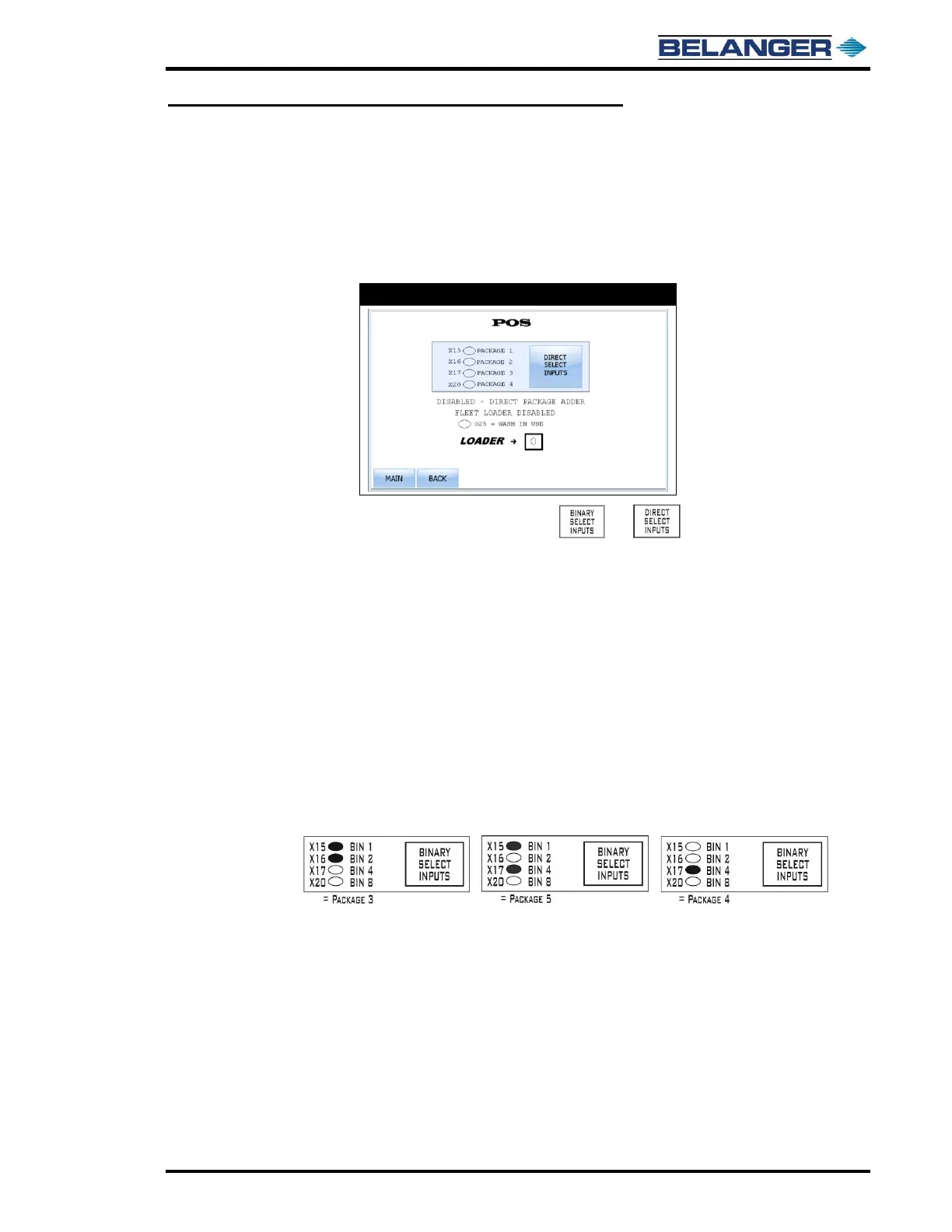

Setup / POS (Point of Sales)
X2 PRO
Pressing the “Select Input” toggles back and forth between and . You will notice that the display
also changes from BIN to PACKAGE in the larger box.
DIRECT SELECT INPUTS
When in DIRECT SELECT INPUTS mode, PACKAGE will be displayed instead of BIN. When in Direct Mode
and a Package is pressed, the fields will toggle as follows:
• PACKAGE 1 to PACKAGE 5
• PACKAGE 2 to PACKAGE 6
• PACKAGE 3 to PACKAGE 7
• PACKAGE 4 to PACKAGE 8
When in Direct Mode, Input will insert corresponding Package into Loader (i.e. if PACKAGE 1 is displayed,
PACKAGE 1 will be loaded into the Loader when Input X13 turns ON).
BINARY SELECT INPUTS
When in Binary Mode each Input is given a value. The Package that is inserted in the Loader is determined by
the sum of the Inputs turned ON (have filled ovals).
Examples:
Pressing the “Fleet Loader” toggles back and forth between FLEET LOADER ENABLED / FLEET LOADER
DISABLED.
