Chapter 4 Operator Interface / Standard User Screens

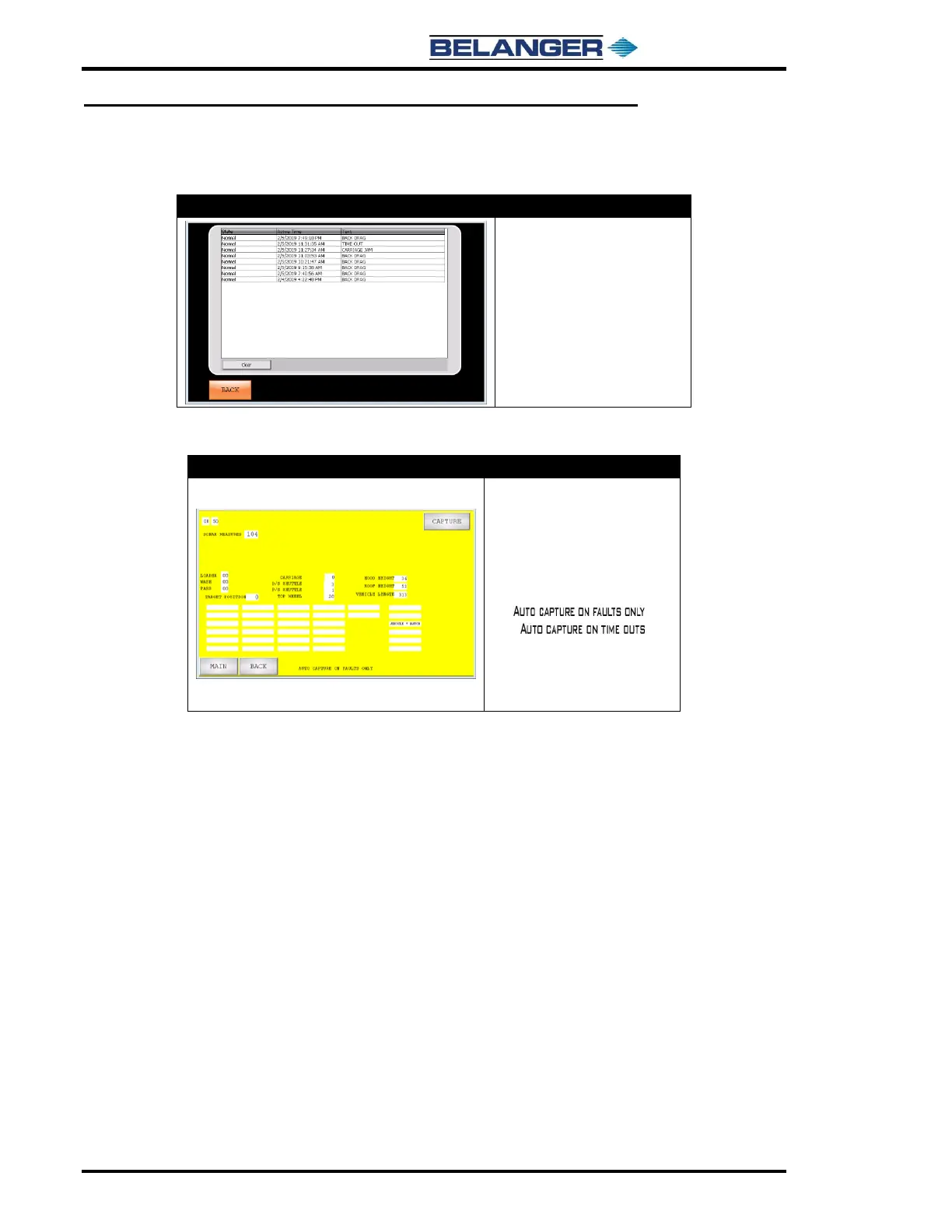

Faults
Faults / Alarms
X2 PRO
SCREEN KEY
• Pressing Clear will clear the
alarm list
Faults / More (Capture)
X2 PRO
SCREEN KEY
• Displays some of the status and
conditions of the machine at the
instant it last faulted or the
CAPTURE button was pressed
• Pressing the AUTO CAPTURE
toggle button alternates
between the fields shown below:
/
• CAPTURE: captures (updates)
status and conditions at the
instant button is pressed
