FULL SIDE WASHER
1MANUL854 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167 -5470 * Ph (248) 349-7010 * Fax (248) 380-9681 11
Installation
Identify Conveyor
The Full Side Washer assemblies can be installed in a tunnel with a Belanger® 13” or 14-1/2” wide
Conveyor that has either a single or double guide rail. Identifying the conveyor is crucial for properly
positioning the Full Side Washer assemblies during installation. The Belanger® conveyor options are
shown in the images below.

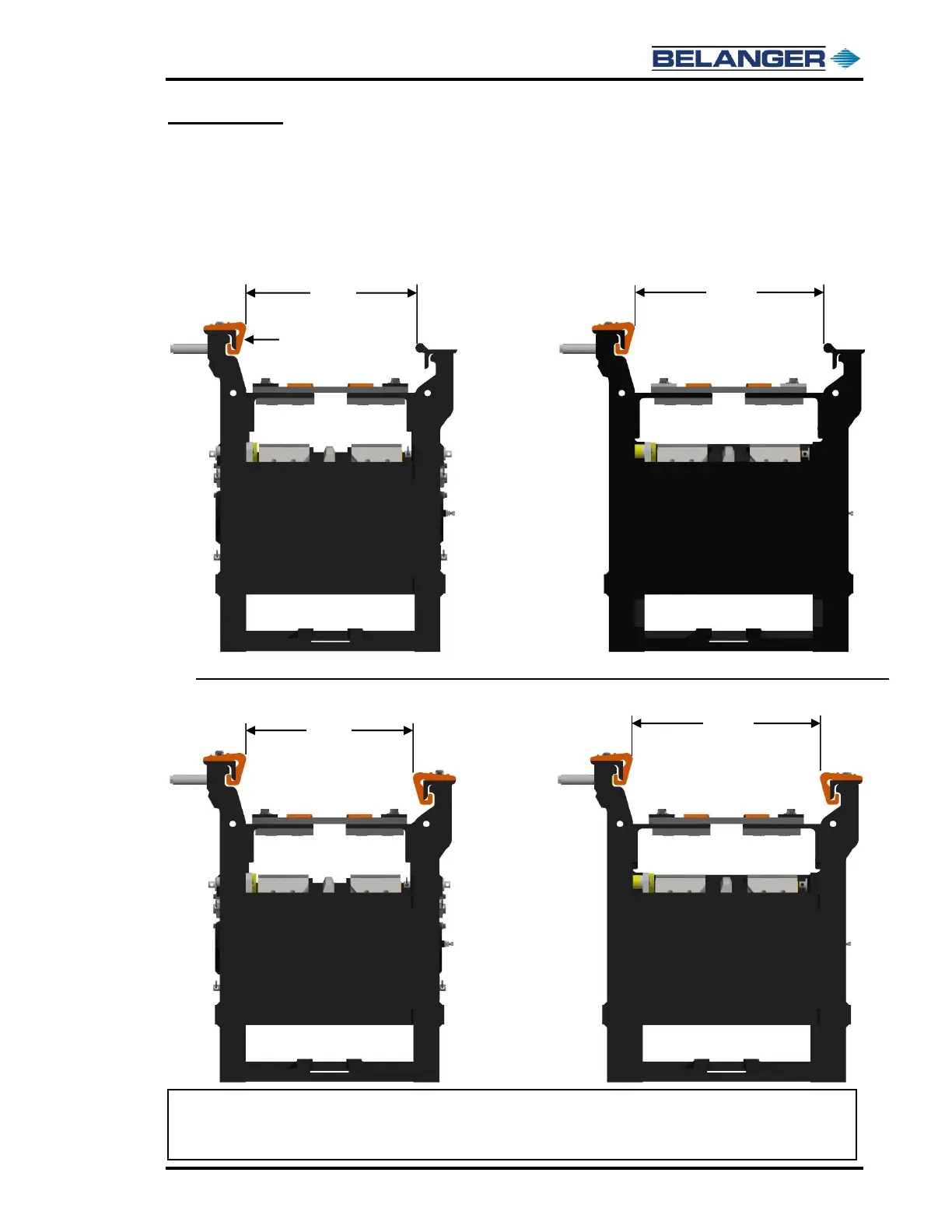

Single Guide Rail Conveyor Assemblies (13” & 14-1/2” Wide)
Double Guide Rail Conveyor Assemblies (13” & 14-1/2” Wide)
Note: In this manual, a 13” wide Conveyor is shown in all images. If a 14-1/2” wide Conveyor is
installed at the site be sure to add 1-1/2" to the dimensions to position the driver side Full Side
Washer assembly.
