FULL SIDE WASHER
14 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation

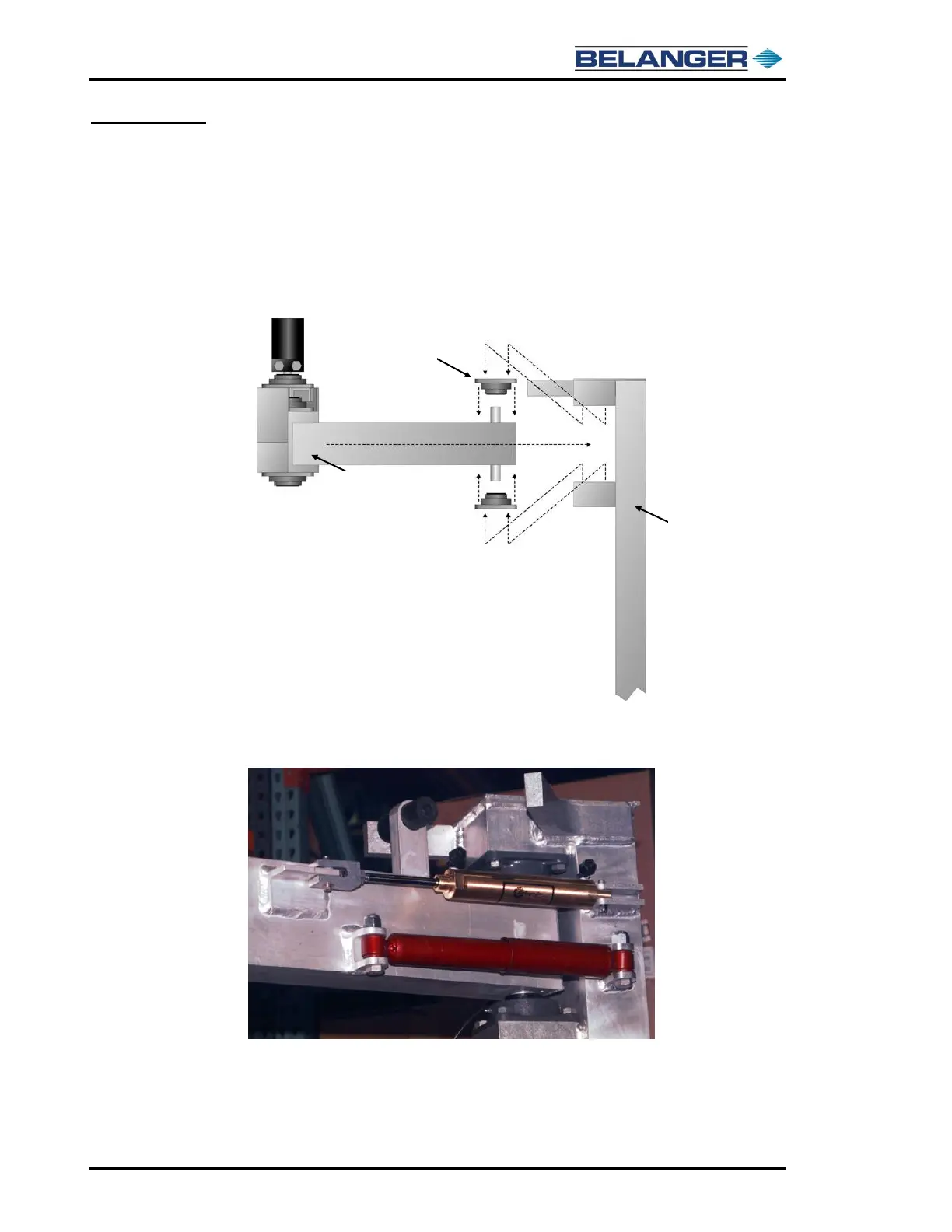

Attaching the Booms
Determine the driver side boom from the passenger side boom. The cylinder mounts face the inside.
1) Locate the passenger side boom assembly. Remove the boom shaft bearings from the passenger
side stand. Slide the bearings onto the boom-mounting shaft. Secure the boom to the stand
assembly.
2) Locate the driver side boom assembly. Remove the boom shaft bearings from the driver side stand.
Slide the bearings onto the boom-mounting shaft. Secure the boom to the stand assembly.
Attaching the boom to the leg assemblies
3) Secure the cylinder and the shock on both booms to their mounts.
Securing the cylinders to the boom and leg assemblies
Bearing
(typical)
Stand
(typical)
Boom
(typical)
