FULL SIDE WASHER
50 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Maintenance

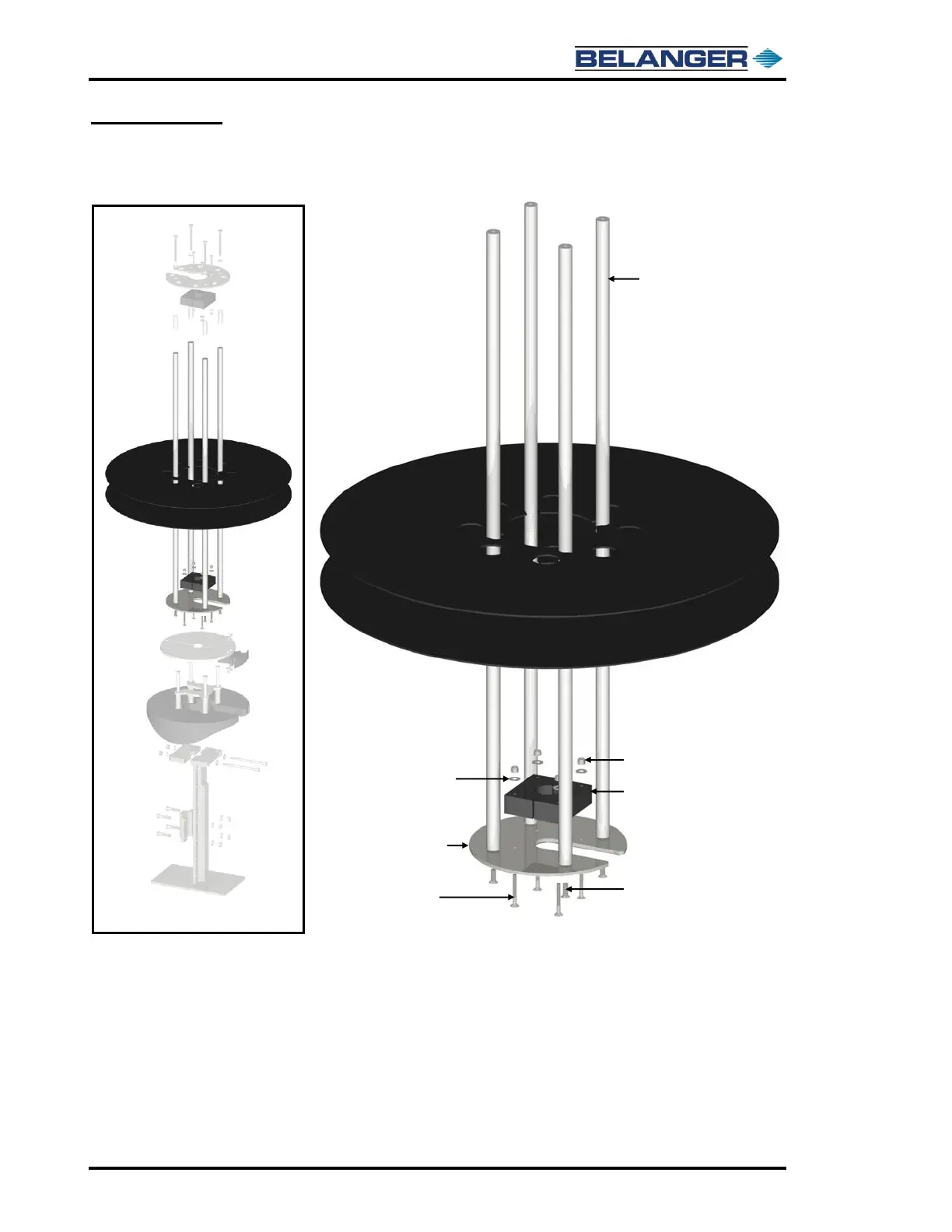

Exploded Parts View
Wave Hub Assembly (Middle Section)
Complete Assembly
1NUT-LC210 (4)
102099: Tie Bar (4)
3766: Cloth Skirt
3766: Cloth Skirt
1WASHR-FL332 (4)
3693: Plastic Bushing (2)
102129: Plate with Neolite
1FSTNR-FH313 (4)
1FSTNR-FH750 (4)
