Belanger Full Side Washer - Stands and Booms (Electric); Full Side Washer Air Panel (Electric): 108489

FULL SIDE WASHER
44 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Maintenance

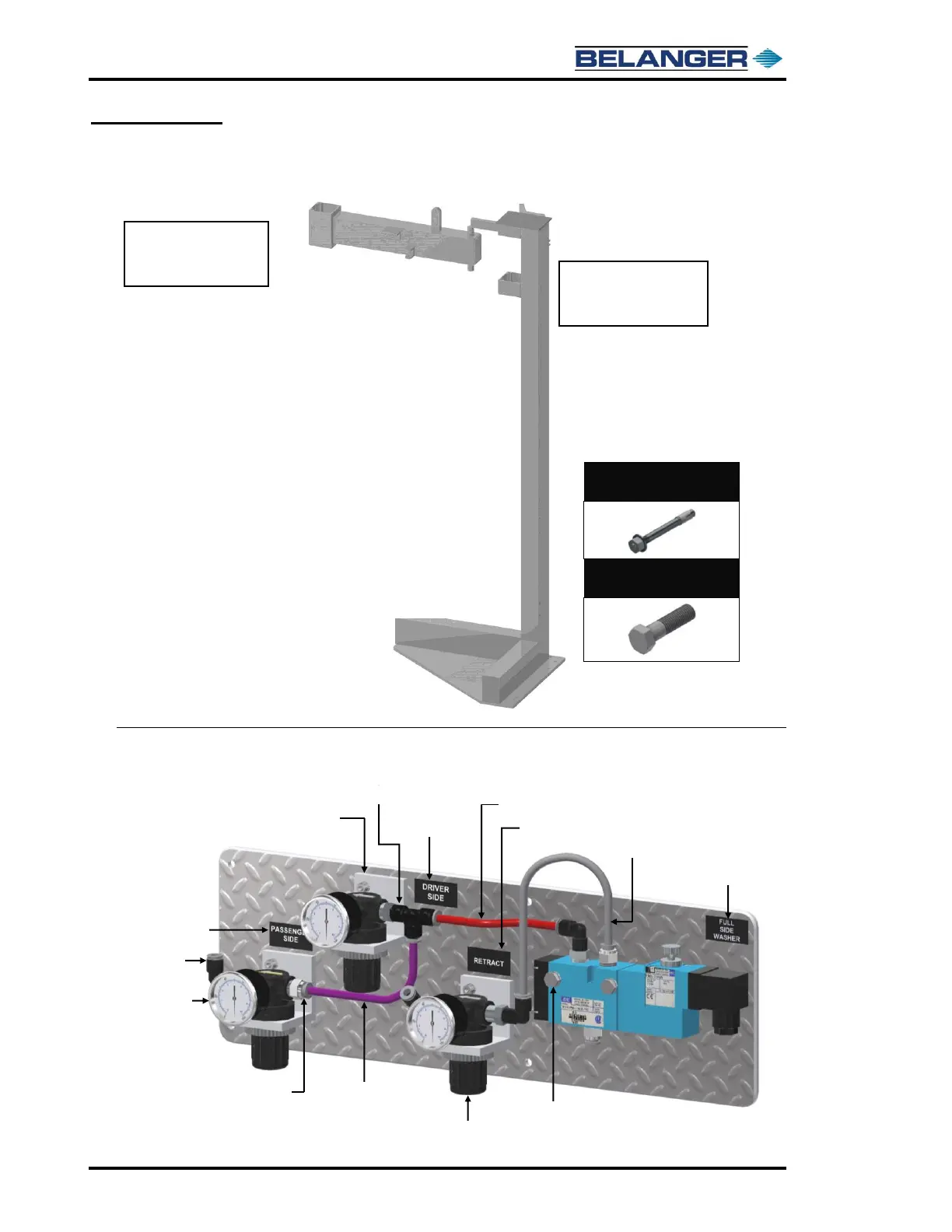

Exploded Parts View
Stands and Booms (Electric)
Full Side Washer Air Panel (Electric): 108489
108445: Boom Weldment (passenger side)
108444: Boom Weldment (driver side)
Shown on the following page:
103051: Leg Water Manifold Assembly (driver side)
• 1RETNR826 (3)
• 1WASHR-FL332 (3)
• 1CLAMP385 (3)
103034: Leg Water Manifold Assembly (passenger side)
• 1RETNR826 (3)
• 1WASHR-FL332 (3)
• 1CLAMP385 (3)
100075: Stand Weldment
(driver side)
100076: Stand Weldment
(passenger side)
1ELBOW-PL666 (4)
1VALVE-EL710
3699
1GAUGE500 (3)
1DECAL-MF325
1DECAL-MF409
2529: Bracket (3)
1FSTNR-SH177 (6)
1WASHR-LC115 (6)
1DECAL-MF045
1TEE-PL706
1AIRLN495 (10”)
1DECAL-MF180
1AIRLN300 (10”)
1MADAP-BR600 (4)
1RGLTR175 (3)
1FSTNR-HH081 (2) &
1WASHR-LC125 (2)
1AIRLN440 (10”)
FSW Stand Assembly:
DS: 107099
PS: 107100
FSW Arm Assembly:
DS: 107101
PS: 107102
1FSTNR-ST750
Lagbolt: 6 per DS & PS
1FSTNR-HH828
Leveling Bolt: 2 per DS & PS
