FULL SIDE WASHER
54 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Maintenance
Exploded Parts View

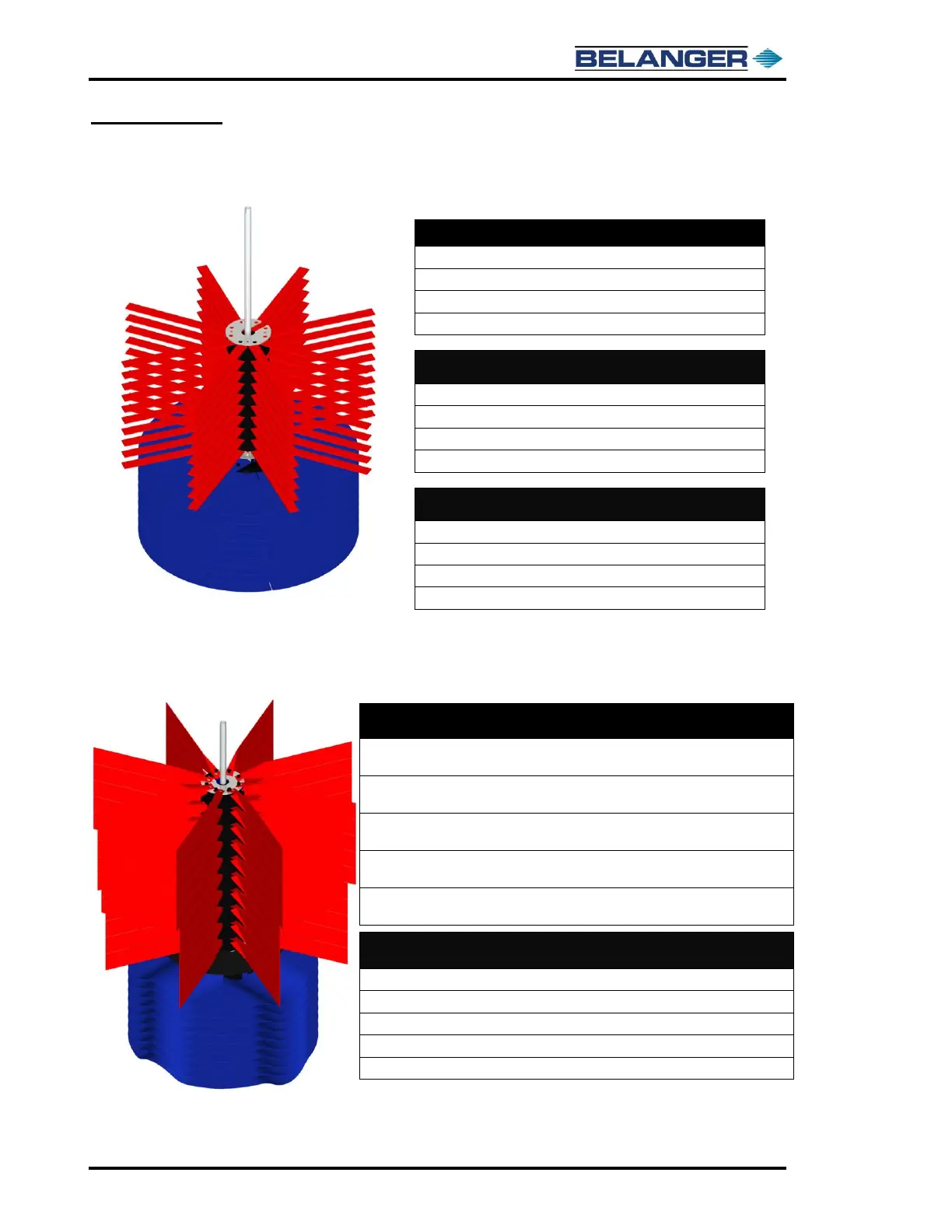

Wave Cleaning Material: Cloth Fill
Wave Cleaning Material: Neo-Tex™ Fill:
Upper Hub: Top 5 Rows
105515: 30” HH Cloth, Blue (40 pieces), 2 sets to fill both DS & PS
105517: 30” HH Cloth, Red (40 pieces), 2 sets to fill both DS & PS
105514: 30” HH Cloth, Black (40 pieces), 2 sets to fill both DS & PS
105516: 30” HH Cloth, Green (40 pieces), 2 sets to fill both DS & PS
Upper Hub: Bottom 5 Rows (includes cloth skirt)
105506: 28” HH Cloth, Blue (40 pieces), 2 sets to fill both DS & PS
105508: 28” HH Cloth, Red (40 pieces), 2 sets to fill both DS & PS
105505: 28” HH Cloth, Black (40 pieces), 2 sets to fill both DS & PS
105507: 28” HH Cloth, Green (40 pieces), 2 sets to fill both DS & PS
Lower Hub: All Rows
105477: 24” HH Cloth, Blue (20 pieces), 4 sets to fill both DS & PS
105479: 24” HH Cloth, Red (20 pieces), 4 sets to fill both DS & PS
105476: 24” HH Cloth, Black (20 pieces), 4 sets to fill both DS & PS
105478: 24” HH Cloth, Green (20 pieces), 4 sets to fill both DS & PS
Upper Hub: Complete Hub = 10 Rows
BLUE 105623 30” x 80 pcs of 6209 Top 5 Rows 1 set fills both DS & PS
BLUE 105619 28” x 80 pcs of 6205 Bottom 5 Rows 1 set fills both DS & PS
RED 105625 30” x 80 pcs of 6211 – Top 5 Rows 1 set fills both DS & PS
RED 105621 28” x 80 pcs of 6207 Bottom 5 Rows 1 set fills both DS & PS
BLACK 105622 30” x 80 pcs of 6208 - Top 5 Rows 1 set fills both DS & PS
BLACK 105618 28” x 80 pcs of 6204 - Bottom 5 Rows 1 set fills both DS & PS
GREEN 105624 30” x 80 pcs of 6210 - Top 5 Rows 1 set fills both DS & PS
GREEN 105620 28” x 80 pcs of 6206 - Bottom 5 Rows 1 set fills both DS & PS
YELLOW 105745 30” x 80 pcs of 6381 -Top 5 Rows 1 set fills both DS & PS
YELLOW 105742 28” x 80 pcs of 6378 - Bottom 5 Rows 1 set fills both DS & PS
Lower Hub: Complete Hub = 10 Rows
BLUE 105615 24” x 20 pcs of 6201 Fills 5 Rows 4 sets to fill both DS & PS
RED 105617 24” x 20 pcs of 6203 Fills 5 Rows 4 sets to fill both DS & PS
BLACK 105614 24” x 20 pcs of 6200 Fills 5 Rows 4 sets to fill both DS & PS
GREEN 105616 24” x 20 pcs of 6206 Fills 5 Rows 4 sets to fill both DS & PS
YELLOW 105727 24” x 20 pcs of 6372 Fills 5 Rows 4 sets to fill both DS & PS
DS = Driver Side PS = Passenger Side
DS = Driver Side PS = Passenger Side
