FULL SIDE WASHER
1MANUL854 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167 -5470 * Ph (248) 349-7010 * Fax (248) 380-9681 13
Installation

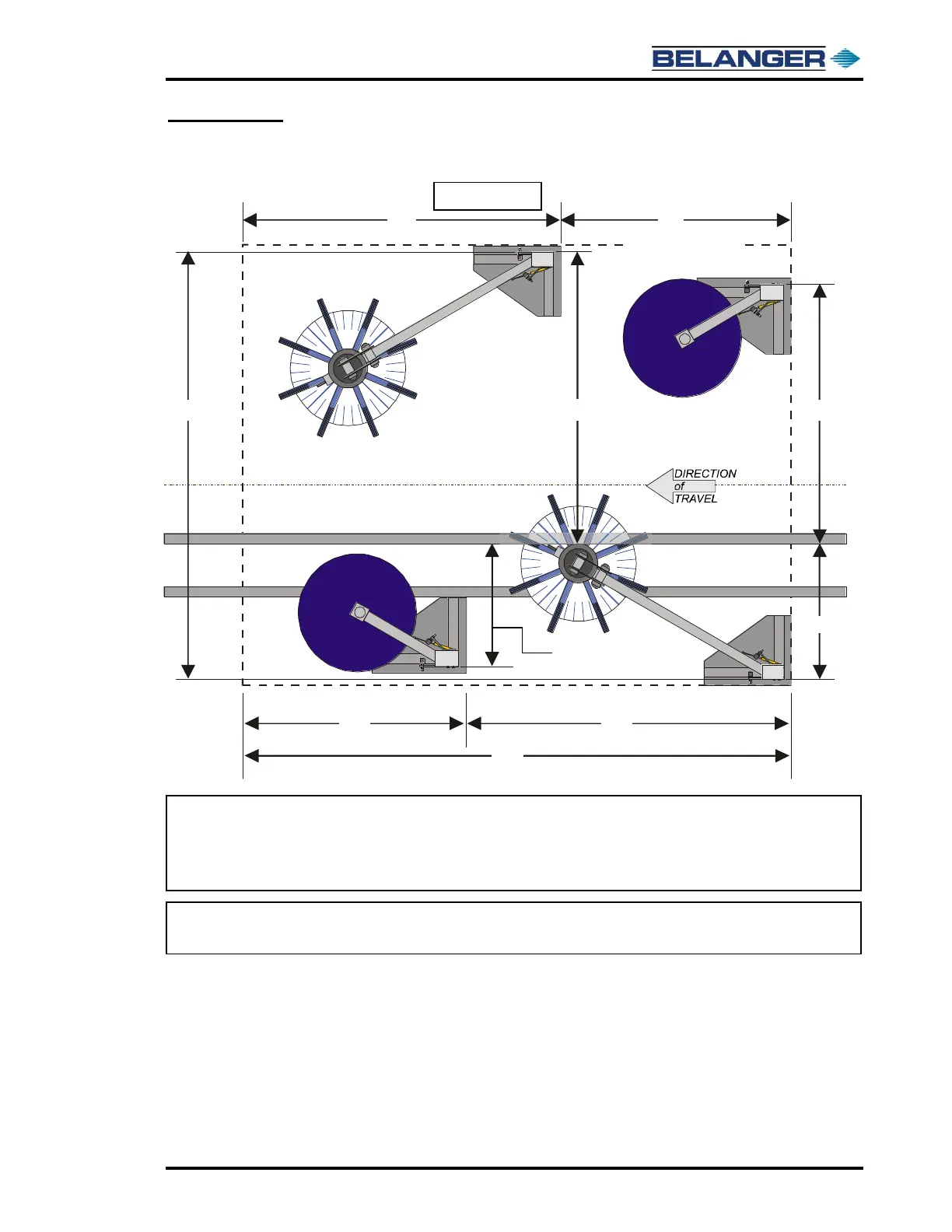

Tunnel Placement – Staggered with Wave Wraps™
Note: Dimension (13” Conveyor: 56” / 14-1/2” Conveyor: 57-1/2”) is taken from the outer edge of the
driver-side Full Side Washer leg to the inside guide rail of the conveyor.
Note: The 104” dimension is taken from the inside guide rail of the conveyor to the outer edge of the
passenger-side Full Side Washer leg.
Note: The above image is shown with cleaning material installed to indicate the operating envelope
required for proper function.
13” Conveyor: 56”
14-1/2” Conveyor: 57-1/2”
FIGURE 1b
218"
128"
90"
90"
128"
110"
170"
104"
60"
Operating Envelope
