Maintenance

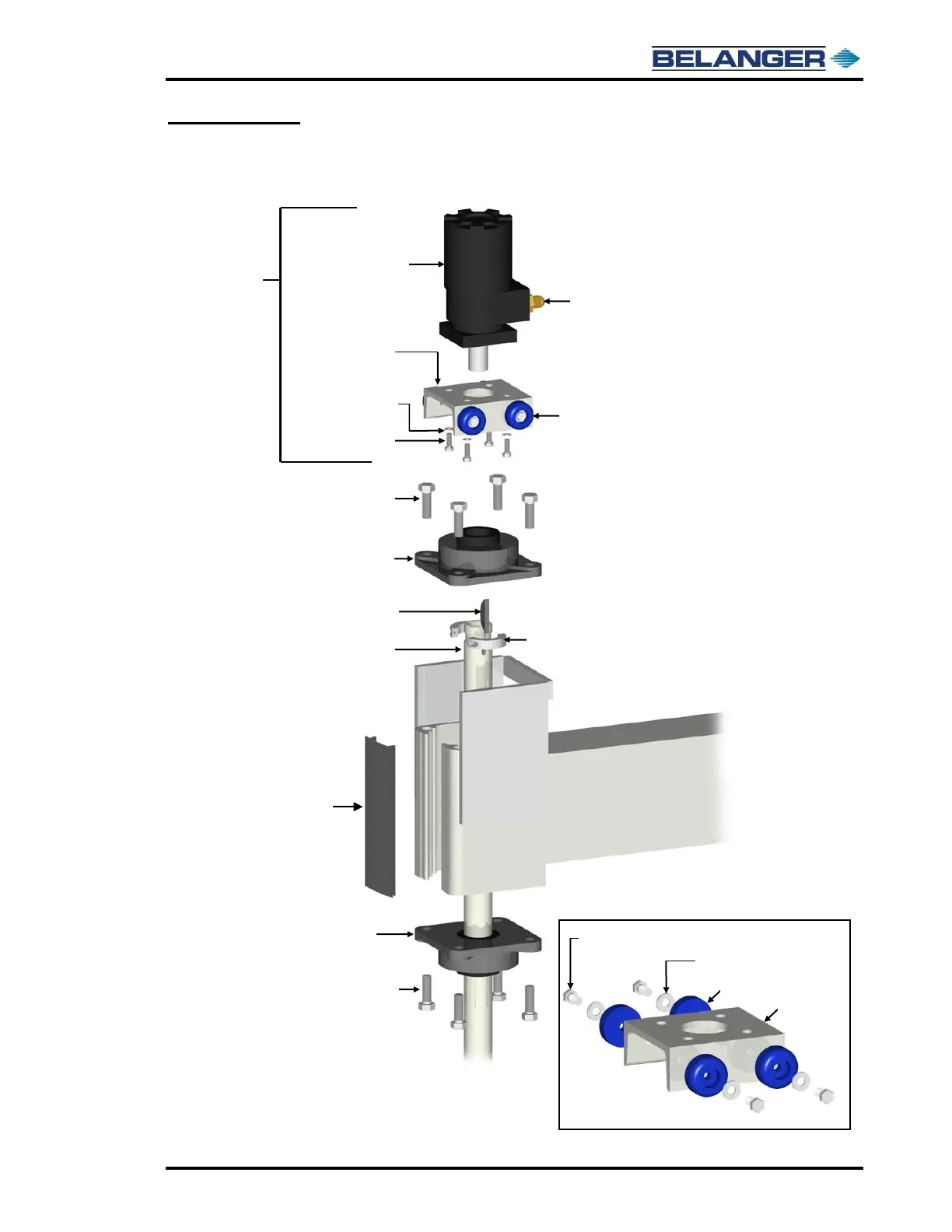

Exploded Parts View
Head Assembly (Hydraulic)
1513 (4)
1FSTNR-HH252 (4)
1FSTNR-HH684 (4)
1BERNG848: Bearing
1254: Woodruff Key
1FSTNR-HH684 (4)
1BERNG848: Bearing
1PLSTC-EX082
Length 8” (sold per foot)
Gray, Wide Filler Strip
1MOTOR-HY710:
Hydraulic Motor
1229:
Torque Channel
Hydraulic Motor
Assembly: 100109
1MCONC-ST375:
Male Connector
Bushing (2)
1WASHR-LC291 (4)
1COLLR333
835:
Shaft for Hydraulic Drive
See Enlarged
View Below
1513 (4)
Torque Channel
Assembly: 101229
1FSTNR-HH027 (4)
1WASHR-FL332 (4)
1229
