Belanger Full Side Washer - Stands and Booms (Hydraulic); Full Side Washer Air Panel (Hydraulic): 102060

FULL SIDE WASHER
1MANUL854 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167 -5470 * Ph (248) 349-7010 * Fax (248) 380-9681 43
Maintenance

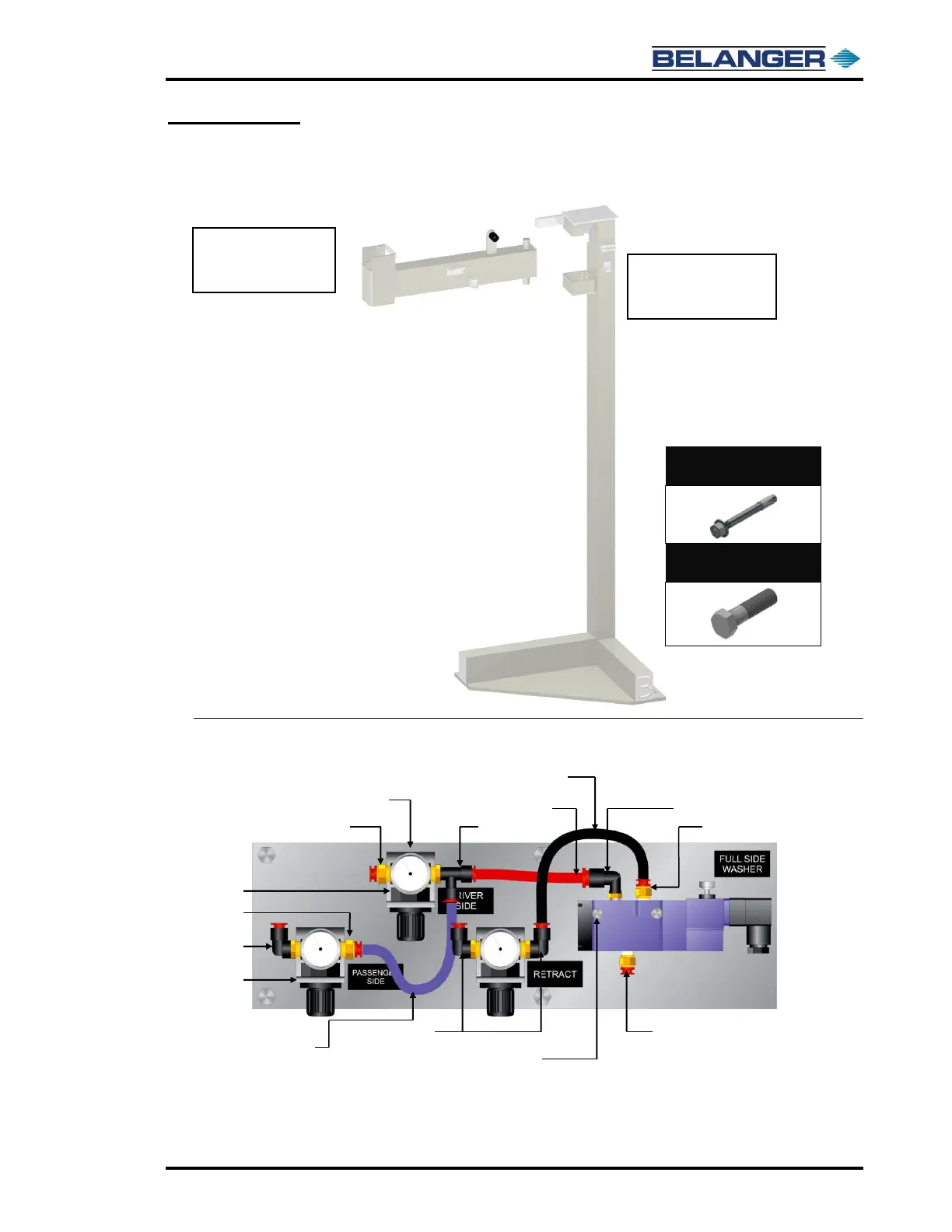

Exploded Parts View
Stands and Booms (Hydraulic)
Full Side Washer Air Panel (Hydraulic): 102060
100074A: Boom Weldment (passenger side)
100073A: Boom Weldment (driver side)
Shown on a following page:
103051: Water Manifold Assembly (driver side)
• 1RETNR826 (3)
• 1WASHR-FL332 (3)
• 1CLAMP385 (3)
103034: Water Manifold Assembly (passenger side)
• 1RETNR826 (3)
• 1WASHR-FL332 (3)
• 1CLAMP385 (3)
100075: Stand Weldment
(driver side)
100076: Stand Weldment
(passenger side)
1ELBOW-PL666
1GAUGE500 (3)
1MADAP-BR600
1RGLTR175 (3)
1ELBOW-PL666
1ELBOW-PL666
1TEE-PL706
1MADAP-BR600
1MADAP-BR600
1VALVE-EL710
1ELBOW-PL666
1FSTNR-HH081 (2)
1WASHR-LC125 (2)
3699
1MADAP-BR600
2529: Bracket (3)
1FSTNR-SH177 (6)
1WASHR-LC115 (6)
1AIRLN495 (5-1/2”)
1AIRLN300 (8-3/4”)
1AIRLN440 (8”)
FSW Stand Assembly:
DS: 106084
PS: 106085
FSW Arm Assembly:
DS: 106061A
PS: 106062A
1FSTNR-ST750
Lagbolt: 6 per DS & PS
1FSTNR-HH828
Leveling Bolt: 2 per DS & PS
