FULL SIDE WASHER
26 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation
Neo-Tex Cleaning Material
The aluminum hub configuration requires the installation of the lower hub first followed by the
installation of the upper hub. Once the two hubs are installed, you may then install the Wash Clips
and Neo-Tex.
Mounting Lower Hub

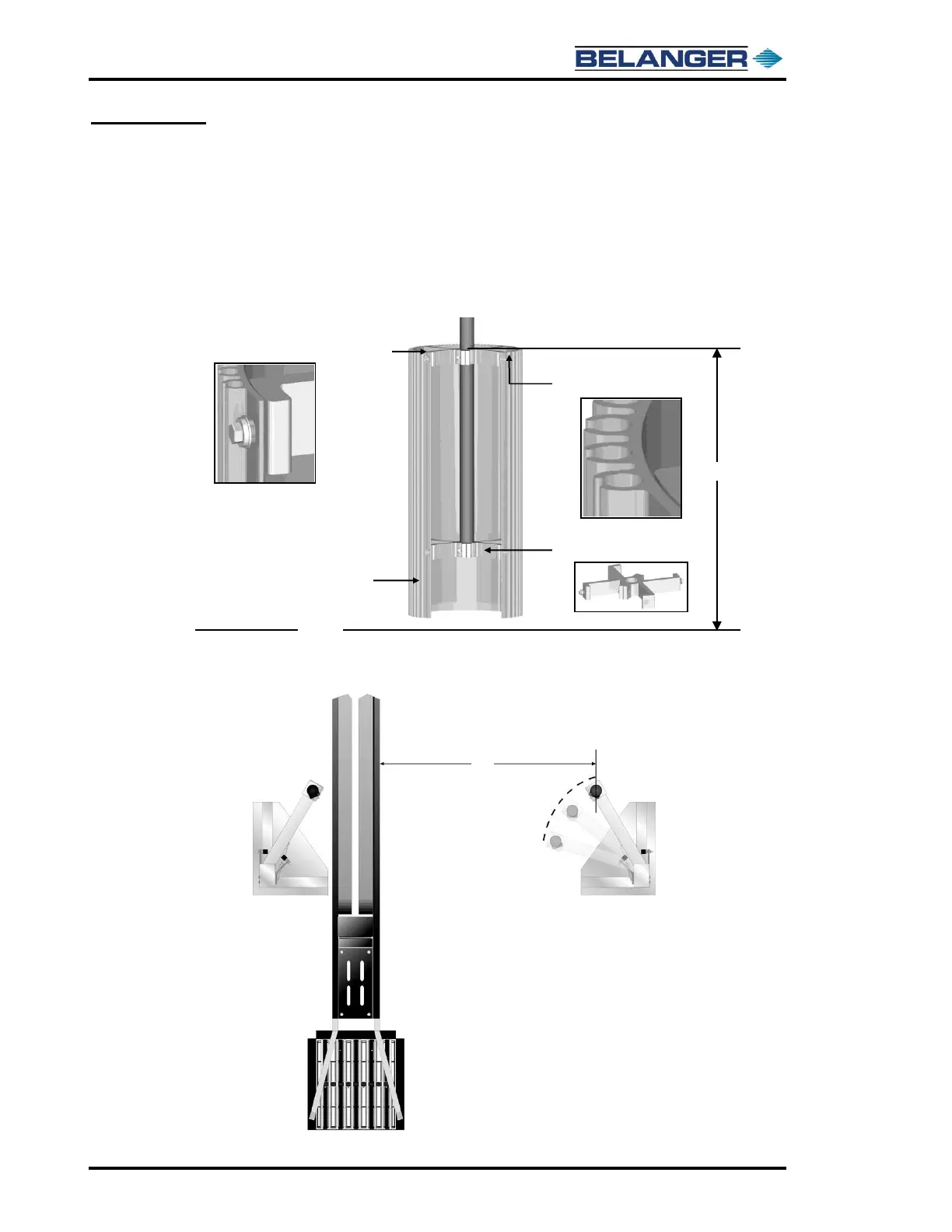

1) Mount the 12” diameter x 28-1/4” tall hub so that the top is 36” from the Conveyor surface on the
driver side by securing the “Spider” Clamps to the shaft and securing the “Skins” to the Spiders as
shown below. Be sure that the open ends of the “C” channels are facing upward.
2) On the passenger side, mount the 12” diameter x 28-1/4” tall hub at 36” from the floor while the
hub is 60” from the inside Guide Rail.
