FULL SIDE WASHER
28 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation
Neo-Tex Cleaning Material
Lower Hub

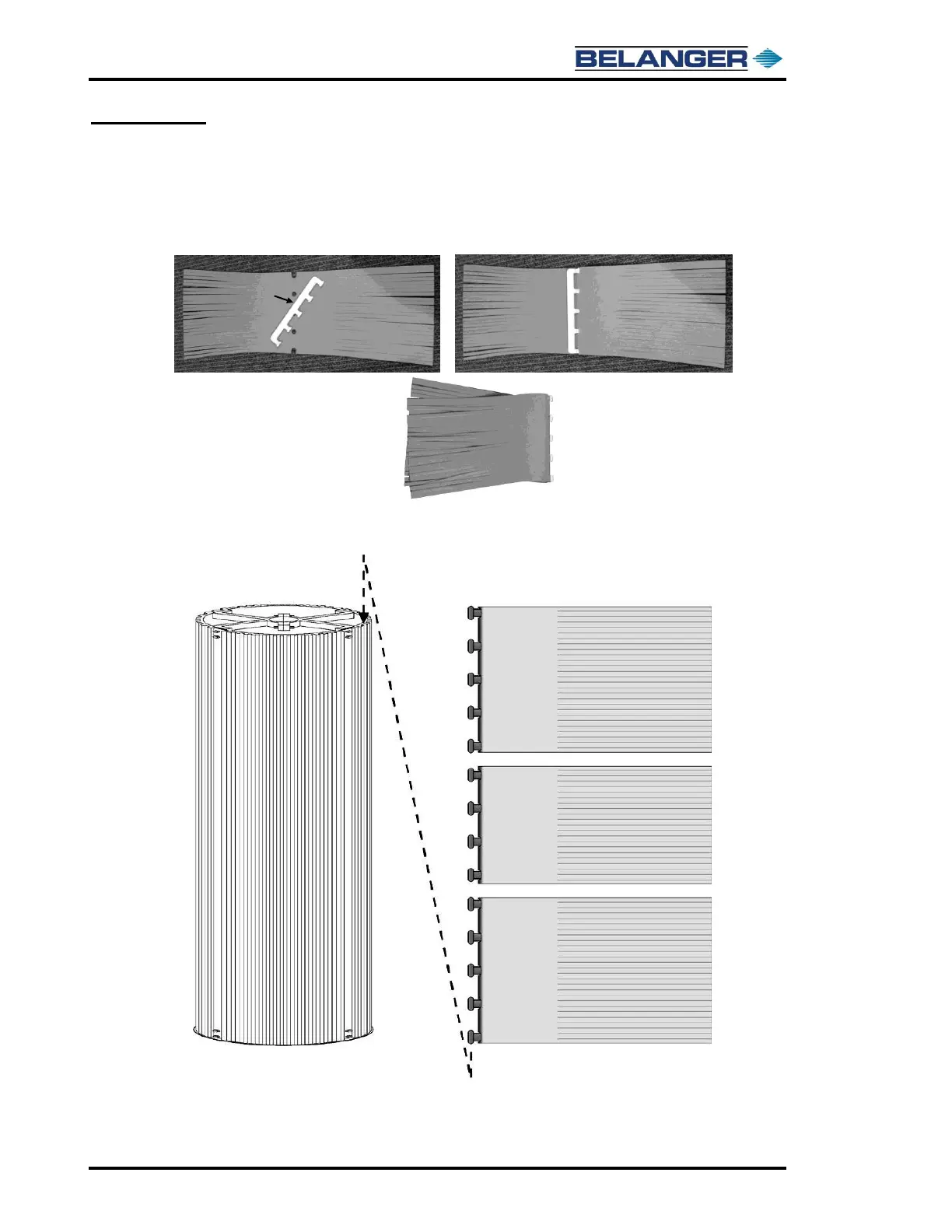

1) Locate the 33” x 10” Neo-Tex pieces. Fold them in half and slid one in every other slot of the
aluminum hub with the Wash Clip, making sure they are pushed all the way to the bottom of the
hub.
2) Following the same procedure, install 24 pieces of the 33” x 8” Neo-Tex in the center followed by
24 pieces of the 33” x 10” on top.
.
Cloth
Wash
Clip
Insert
Wash Clips
into cloth
holes
Fold cloth
in half to
slid into
hubs
When folded in
half, this piece
is 16” x 10”
When folded in
half, this piece
is 16” x 8”
When folded in
half, this piece
is 16” x 10”
