Maintenance
Torque Plate and Electric Motor Replacement
Reinstall Motor Gearbox Assembly

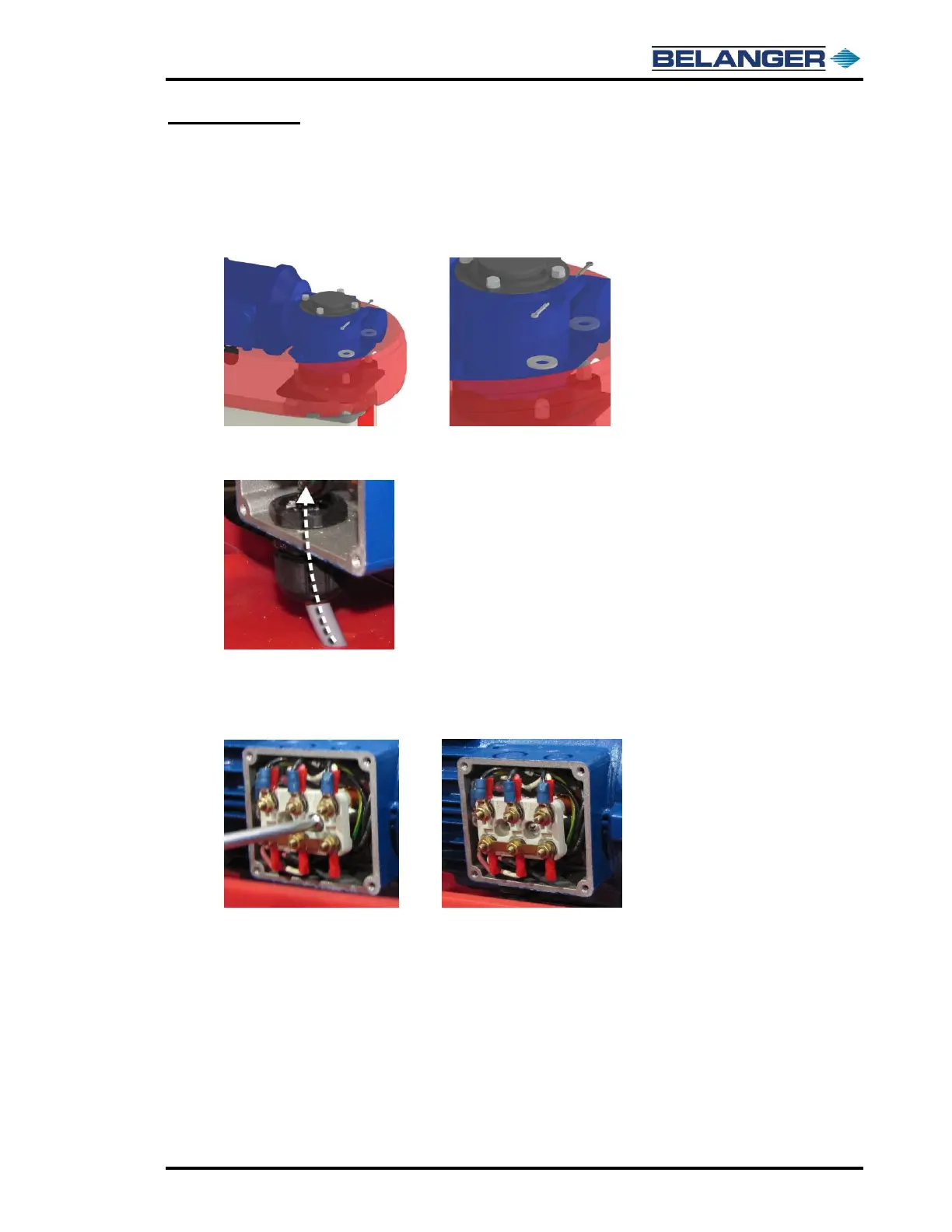

3) Locate and secure washers and the newly supplied zinc cotter pins into place. This will
secure the gearbox into position.
4) Feed the wiring up through the cover and through the plastic fitting on the motor junction
box. Make sure to tighten the fitting properly to prevent any water intrusion.
5) Once the wire is fed back into the junction box, secure the terminal block back into position
using the Phillips screw. Be careful not to crimp or crush any of the existing wiring.
Reconnect the wiring leads to the previously tagged motor leads to maintain the proper
wiring positions.
6) Replace the junction box cap while being careful not to crimp or crush any of the existing
wiring.
7) Once the motor gearbox unit is properly secured into position, power can be turned back
ON.
8) Verify wheel rotation prior to running any test vehicle through the system.
