37Bend-Tech Dragon A400
Maintenance & Troubleshooting
Drive Belt
08
4.
the Drive Belt with the left hand. Do not lift on the Drive Belt, only support it so it does not
contact the Cable Track Tray.
5. When the Belt Tension Tool clicks, observe where the top face of the lever crosses the
plane on the body of the tool. This position indicates belt tension
Drive Belt Tensioning Procedure
Tools Needed
• ¾ in. wrench
• ¾ in. deep well socket and ratchet
• Tape measure
• Belt tensioning gauge
Belt Tension 120 lb-ft
1 ft. 2 ft.

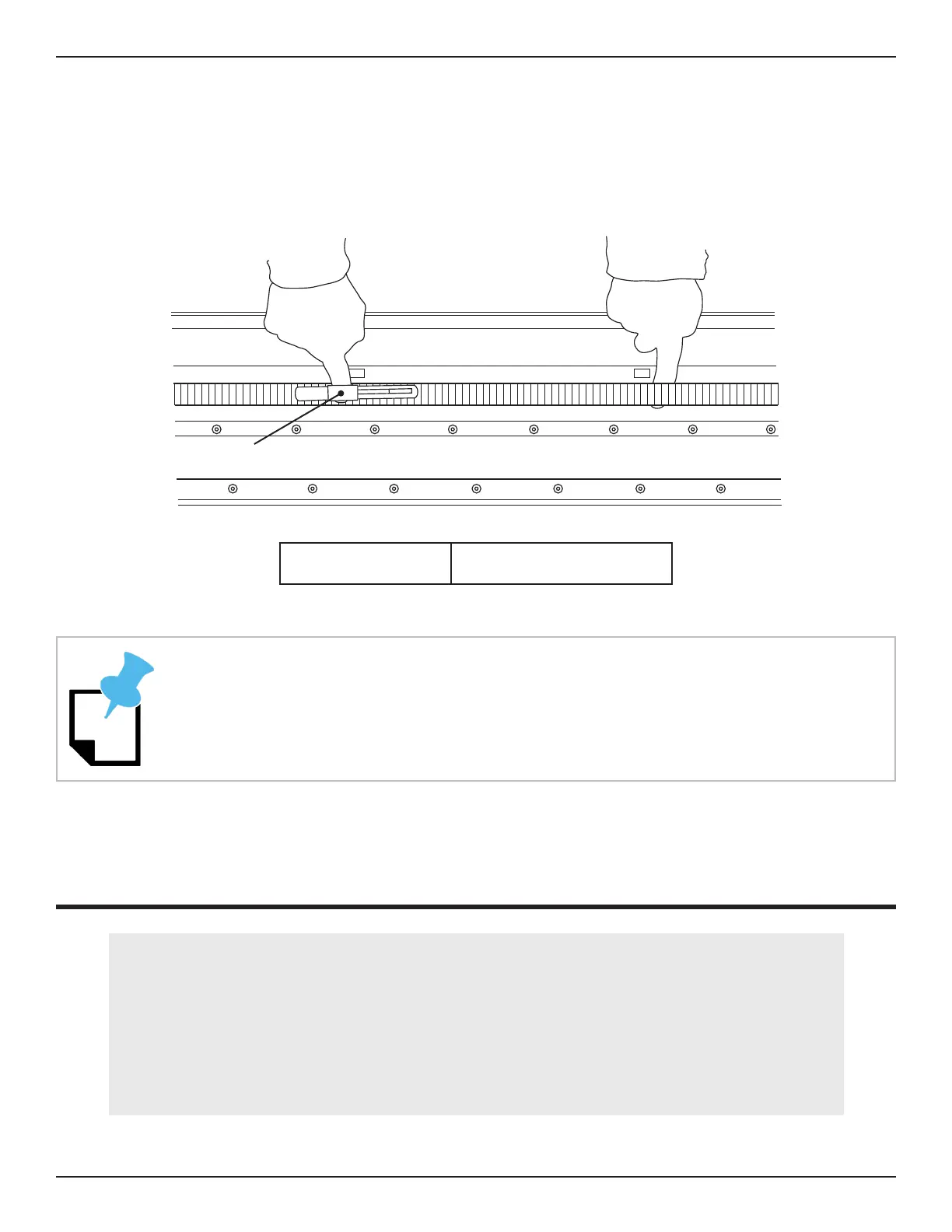

Belt Tension Tool
If the Drive Belt is tracking incorrectly on the Drive Belt Pulley call Bend-Tech Service.
