Bender CC612 User Manual

Connection
CC612(4G)_D00325_04_M_XXEN/03.2019
19
5.2.1.10 Connection to lock release modules

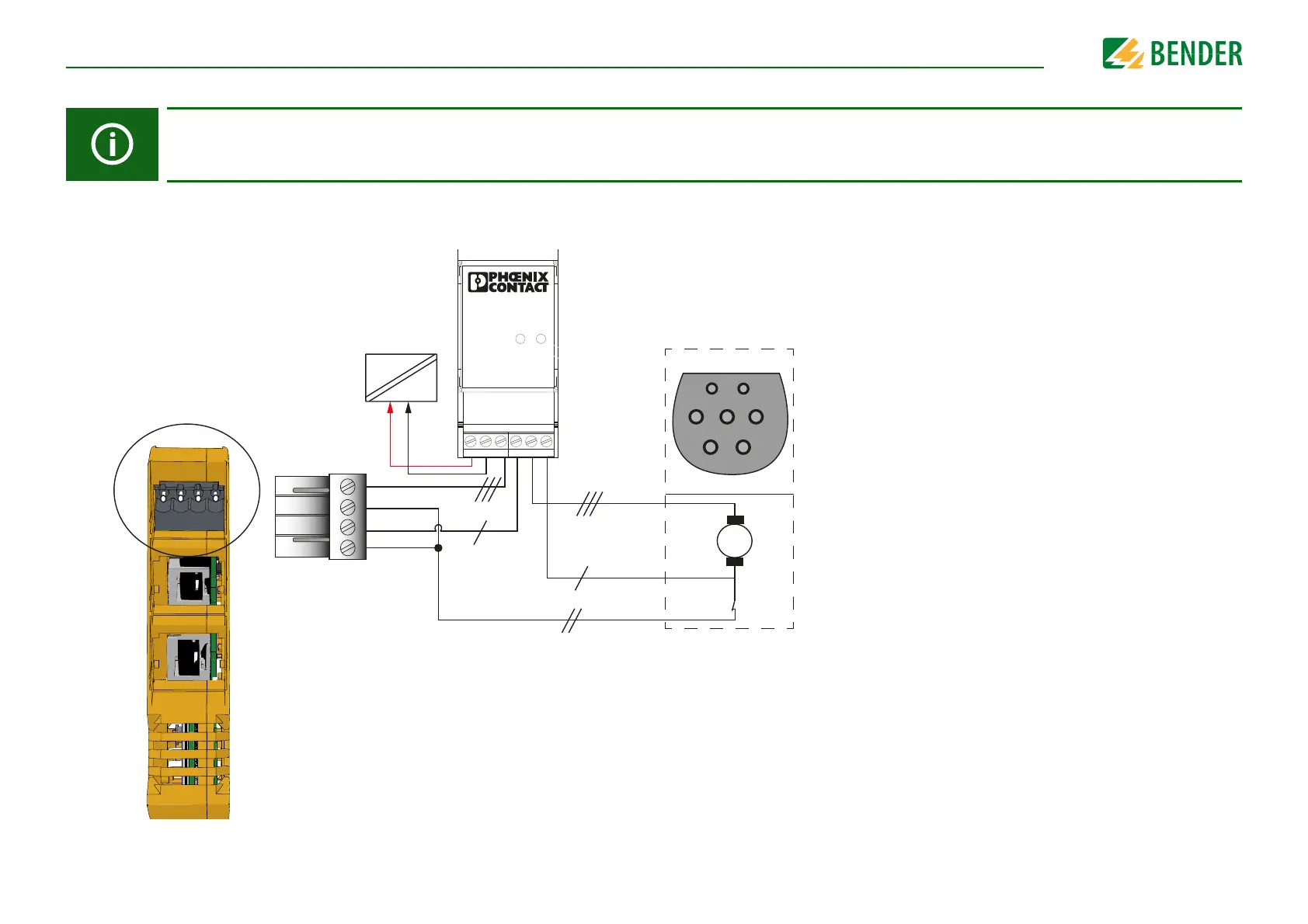

Each type 2 socket can also be used in conjunction with lock release modules from various manufacturers. A typical wiring diagram illustrating the connection between the charge con-
troller, a Mennekes/Bals/Walther Werke/Harting socket actuator and a lock release module (EM-EV-CLR-12V) from Phoenix Contact is shown below:
When using the Mennekes Actuator Control Type 30537-A, the full force is not available for the locking and unlocking process.
-
12V +IN
EV Charge
Lock Release
POWER
ERROR
-IN +OUT-OUT
GND
OUT
+
IN
M
-
+
CP
PP
L1
L2
L3
N
PE
AC
DC
IN + OUT -
To CC612
connector A
Mennekes/Bals/Walther Werke/Harting
Type 2 socket
Actuator
Wire 3
Wire 2
Wire 1
