16

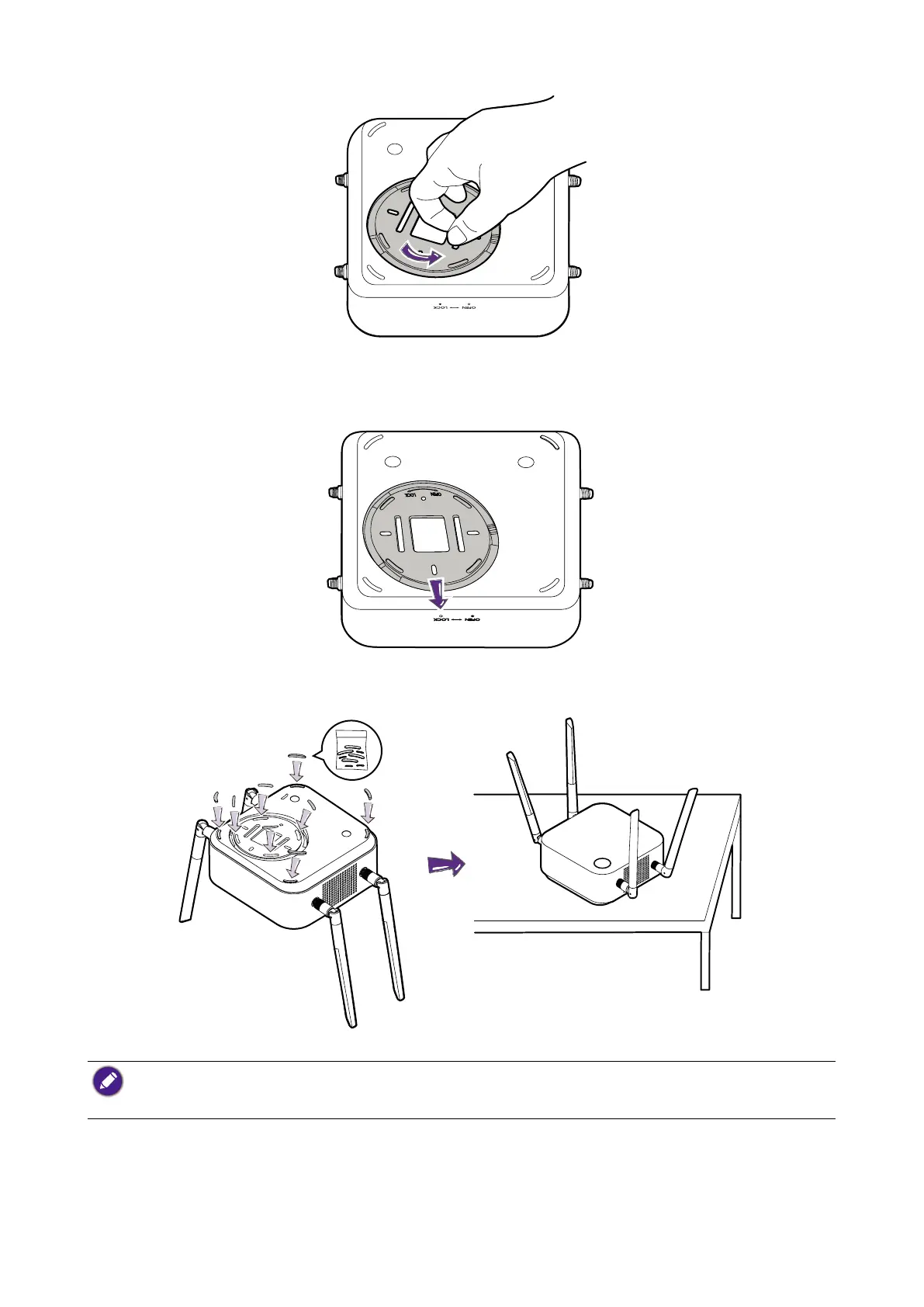

3. When the lid is correctly installed on the Host the alignment hole on the lid should be pointed
to the LOCK print at the front side of the Host.
4. Attach the rubber feet to the recesses on the lid and put the Host right next to the display.
• Please only use the rubber foot provided with the kit to attach to the Host.
• Please see Positioning the Host antennas on page 18 for guidelines on positioning the antenna to maximize
signal reception.
You can also place the Host on a mobile display trolley. See the illustration.
