110
6 - PARAMETER DESCRIPTION
Jump to Parameter I/O 00
By changing the value of this parameter and pressing [ENTER], you can jump directly to any parameter within that group.
P48,49,50 Digital Input Configuration I/O 01,02,03
LED Display LCD Display
Range LED LCD Description
OFF Off Off, Not Assigned, Input has no function. (Default DI 2 & DI 3)
StOP Stop Stop Command for 3-wire control. (Default DI 1)
FH Fault High Fault High, Fault when input is asserted, 120V applied.
FL Fault Low Fault Low, Fault when input is de-asserted, 0V applied.
Fr Fault Reset Reset when input asserted, 120V applied.
dISc Disconnect Disconnect switch monitor.
InLn Inline Cnfrm Inline contactor feedback.
bYP Bypass Cnfrm Bypass/2M, bypass contactor feedback, 2M contactor feedback in
full voltage or Wye-delta.
EOLr E OL Reset Emergency Motor Overload content reset. After an OL trip has
occurred. Reset when input asserted, 120V applied.
L-r Local/Remote Local/Remote control source, Selects whether the Local Source
parameter or the Remote Source parameter is the control source.
Local Source is selected when input is de-asserted, 0V applied.
Remote Source selected when input asserted, 120V applied.
hd IS Heat Disable Heater disabled when input asserted, 120V applied.
hEn Heat Enable Heater enabled when input asserted, 120V applied.
rSEL Ramp Select Ramp 2 is enabled when input asserted, 120V applied.
SS F Slow Spd Fwd Operate starter in slow speed forward mode.
SS r Slow Spd Rev Operate starter in slow speed reverse mode.
bd lS Brake Disabl Disable DC injection braking.
bEn Brake Enabl Enable DC injection braking.
runE Run Enable When High, starter will run. When Low, starter stops.
rund Run Disable When High, starter will stop. When Low, starter runs.
Description I/O parameters 1 - 3 configure which features are performed by the D1 to D3 terminals.
See Also Local Source (P4 / QST 04) parameter on page 77 .
Remote Source (P5 / QST 05) parameter on page 78.
Bypass Feedback Time (P64 / I/O 17) parameter on page 118.
Heater Level (P73 / FUN 08) parameter on page 123.
Theory of Operation section 7.1.10, Emergency Motor Overload Reset on page 138.
Theory of Operation section 7.3.6, Dual Acceleration Ramp Control on page 147.
Theory of Operation section 7.8, Wye-Delta Operation on page 160.
Theory of Operation section 7.13, Start/Stop Control with a Hand/Off/Auto Selector Switch on page 168.

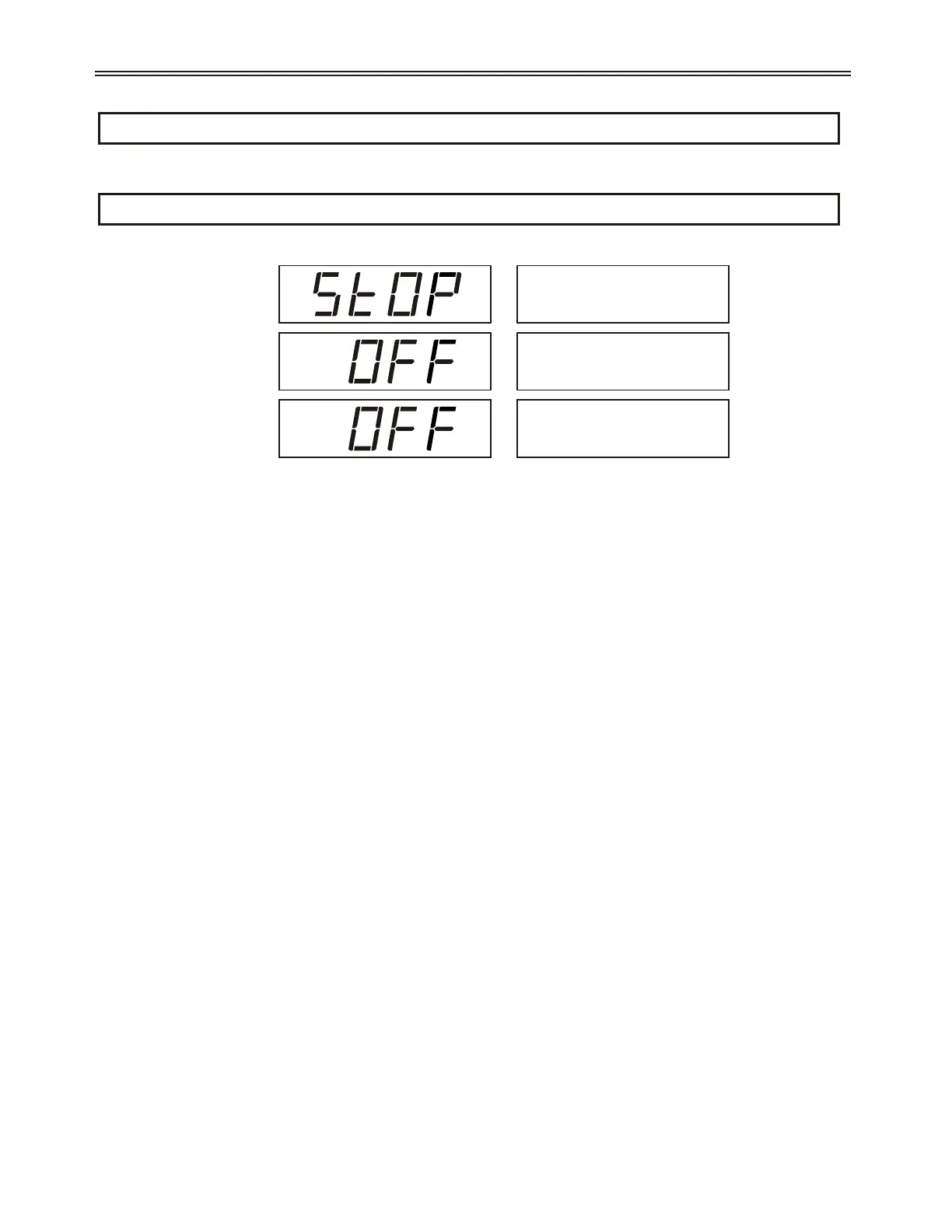

I/O: DI 3 Config
03 Off
I/O: DI 2 Config
02 Off
I/O: DI 1 Config
01 Stop
P48
P49
P50
