Setting Up the Machine
23
2022-05 EN 50400685.00A.04

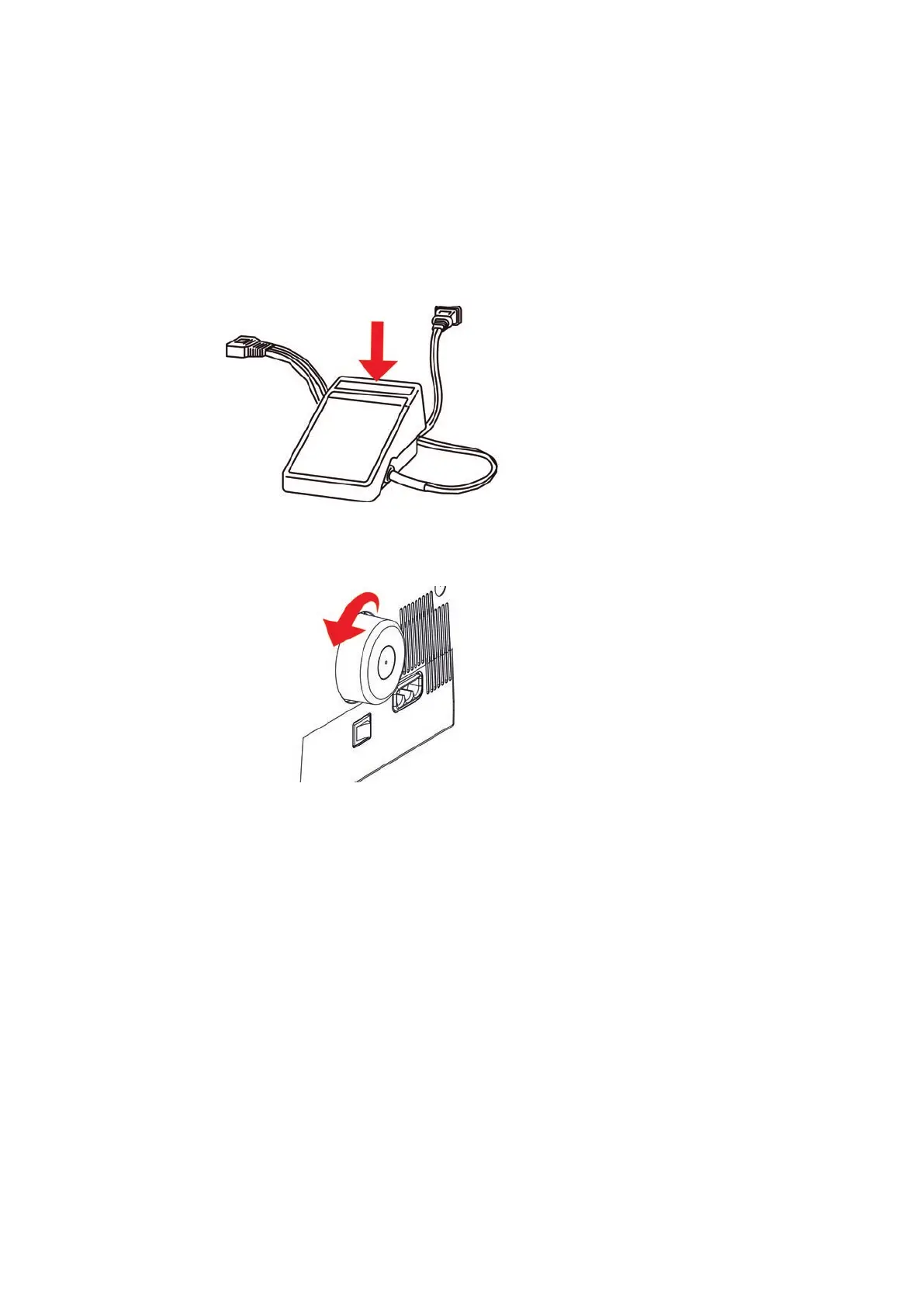

3.3 Foot Control
Press the Foot Control
By operating the foot control the needle and knife move. The sewing speed can be infinitely adjusted by
more or less pressure on the foot control.
> To start the sewing process, increase the pressure on the foot control.
> To stop the sewing process, reduce the pressure on the foot control.
3.4 Handwheel
By turning the handwheel counterclockwise, several activities can be performed.
• Slow, Precise Placement of the Needle
• Moving the Loopers
• Moving the Knife
• Mechanical Coupling of the Air Threader
3.5 Machine Covers
The machine covers protect against injuries caused by moving components and prevent fragile elements
from being damaged. All covers must be fitted or closed prior to sewing.
• Threader Cover
• Knife Cover Insert
• Coverstitch Insert for Slide-on Table
