Threading
65
2022-05 EN 50400685.00A.04

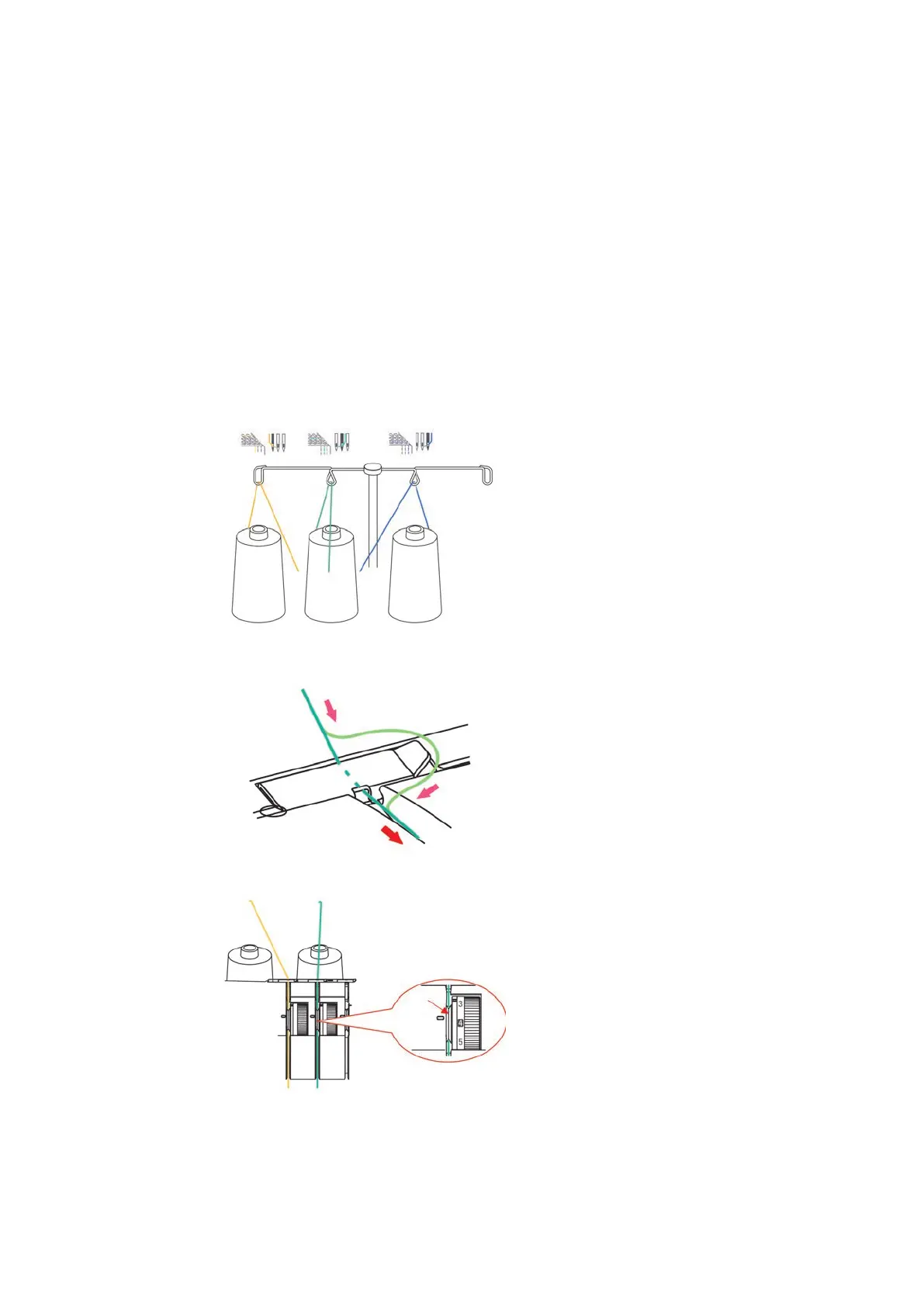

7.1 Preparing for Threading
Before threading, make sure that the machine settings match with the required stitch.
The machine has color-coded threading paths. Correct threading is ensured when following the color
markings.
Prerequisite:
• The retractable thread guide is fully extended.
• The needles are at the top position.
• All threads and needles that are not needed for the particular stitch have been removed.
> Raise the presser foot.
– The thread tensions are released and the thread can be inserted without resistance.
> Place the thread cones on the respective spool pin.
> Place the thread from the back through the thread guide.
> Engage the thread in the thread pretension.
> Place the thread along the thread path between the thread tension discs.
