Bernette b77 - 2.3 Freearm; 2.4 Sewing Table and Accessory Box

Sewing Preparation
27
2022-08 EN 5020077.40A.04

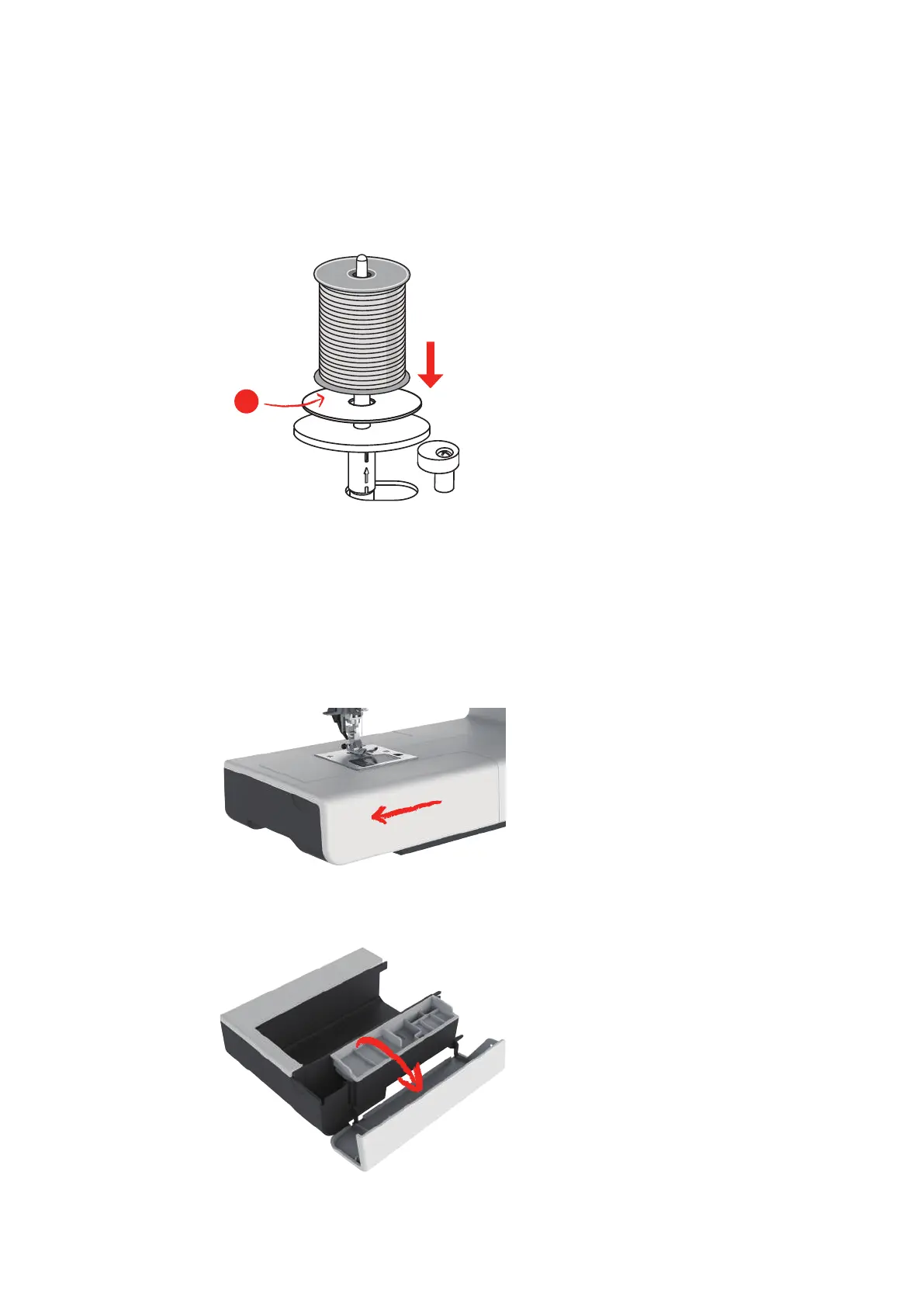

Inserting Thread Spool
The felt disc prevents the thread from sticking to the spool pin.
> Place the felt disc (1) on the second spool pin.
> Place the thread spool on the second spool pin.
1
2.3 Freearm
The bernette b77 provides a solidly freearm which offers a lot of space for large project on the right of the
needle.
2.4 Sewing Table and Accessory Box
The sewing table is used as an accessory box.
> To remove the sewing table, hold the sewing table by the handle on the left and pull in the direction of
the arrow.
> To open the accessory box, tilt the cover towards you.
> To close the accessory box, tilt the cover backwards until it clicks into place.
