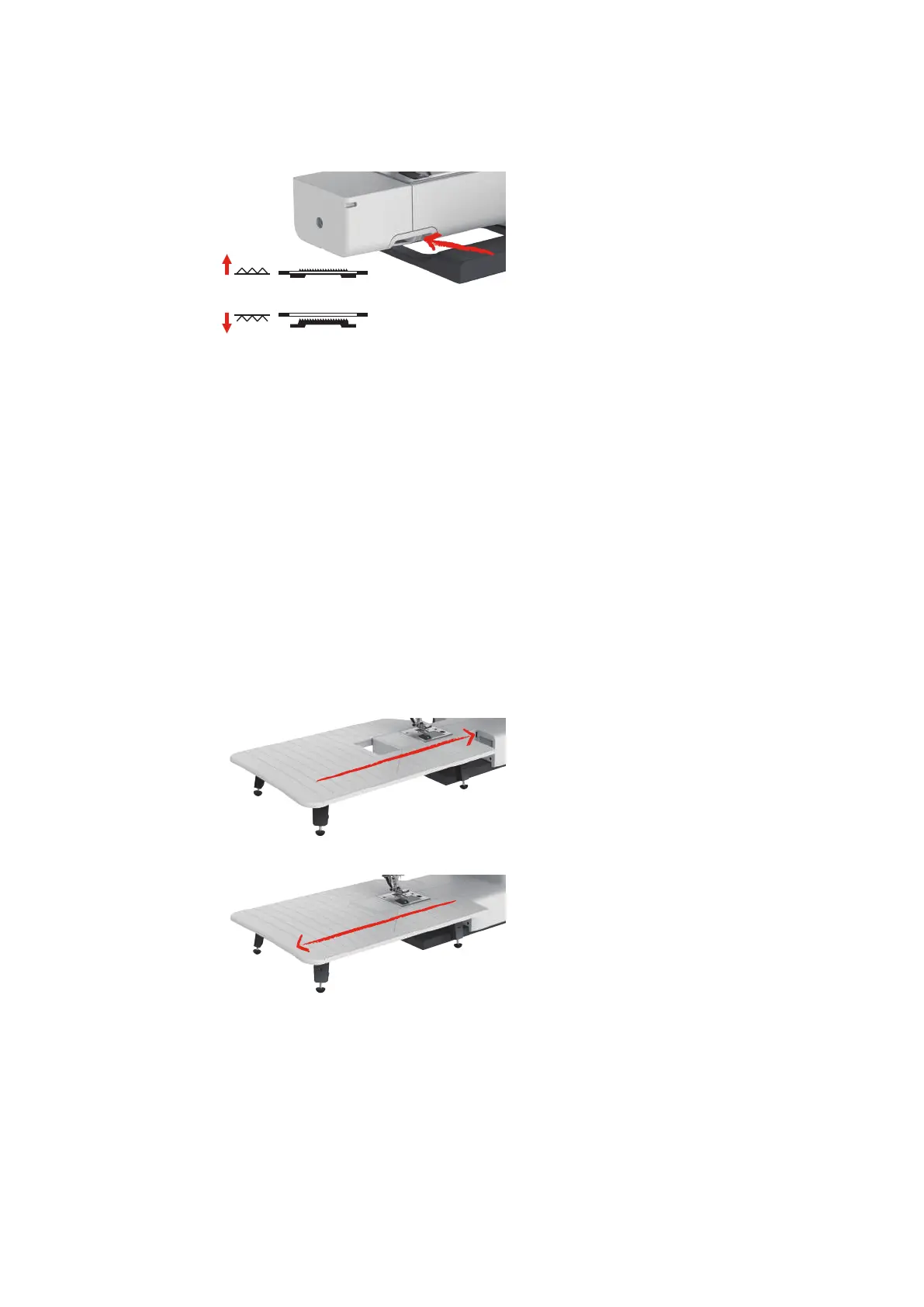

2.5 Raising or Lowering the Feed Dog
> To raise the feed dog, push the feed dog lever to the right.
– The feed dog is raised when the first stitch is sewn.
> Slide the «Feed Dog Lever» left to lower the feed dog.
– The feed dog is lowered.
2.6 Using the Slide-on Table
The Slide-on Freearm Extension Table, attached to the freearm, enables the available sewing area to be
extended.
The height of the extension table can be adjusted by turning the adjustable feet.
Prerequisite:
• The sewing table is removed.
> Raise the needle.
> Raise the presser foot.
> Switch off the machine.
> Unfold the feet on the extension table.
> Push the Slide-on Freearm Extension Table from the left to the right over the freearm until it engages.
> To remove the slide-on table, pull the slide-on table over the freearm to the left.
