Bernina deco 330 - Adjusting Tension Release Mechanism

15
Deco 330

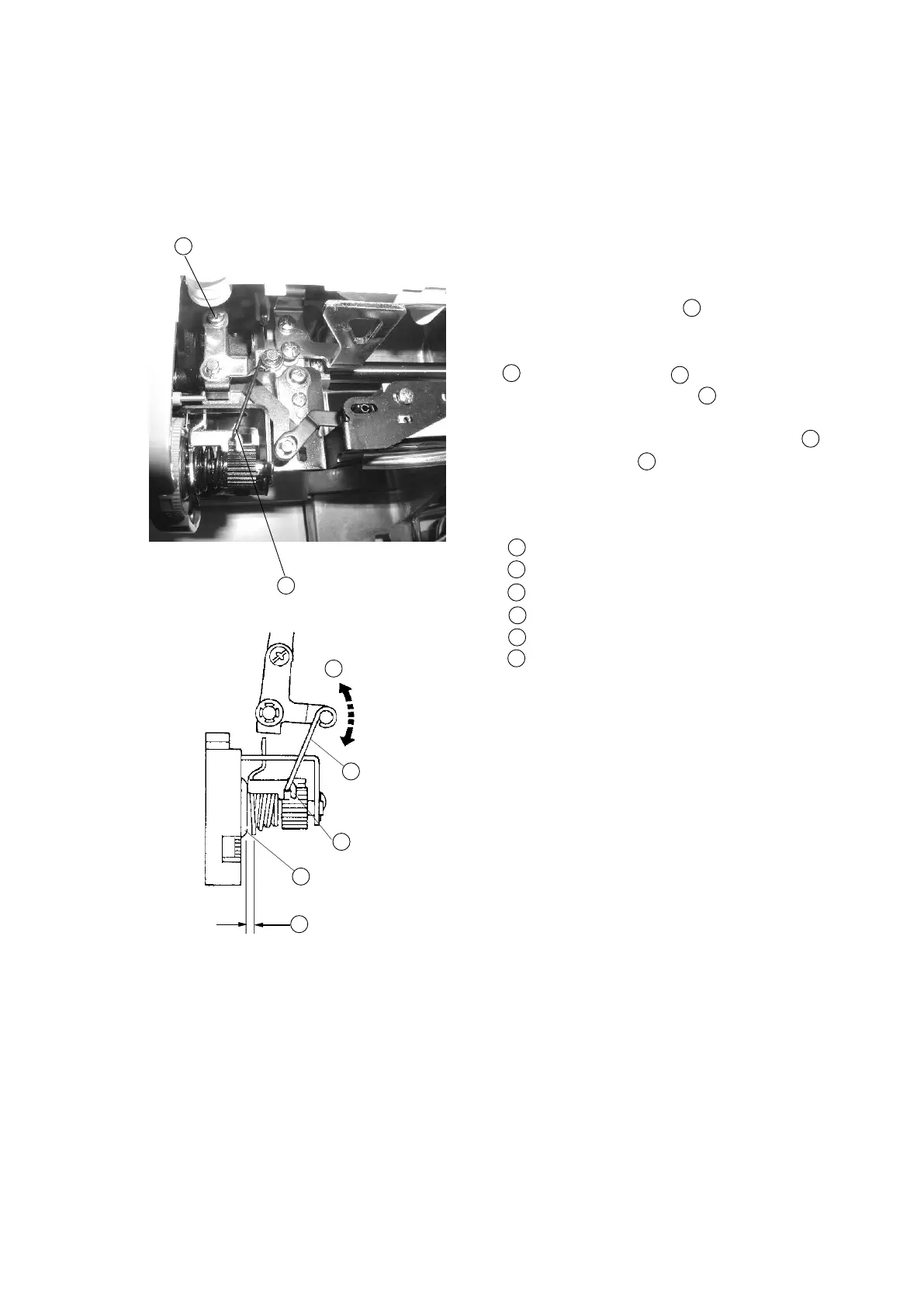

Adjusting Tension Release Mechanism
1Remove the front cover unit. (see page 6)
2Lower the presser foot lifter,setthethreadtensiondial
at “9” and loosen the Screw
1
.
3Adjusttheplaybetween the tension release rod (2)
3
and the Spring holder
4
approximately 0.3 - 0.5
mm and tighten the Screw(A) 1 .
4Raisethepresserfoot lifter, turnthethreadtension
dial from “9” to “0”, makesurethetensiondisc
5
should open 1.0 mm 6 .
5Reattachthefrontcover unit.
Screw
Tension release rod (2)
Play(0.3-0.5mm)
Spring holder
Tension disc
Clearance (approximately 1.0 mm)
1
2
3
2
4
5
6
When the presser foot lifter is raised, the tension release mechanism should work correctly.
If not, adjust as follows.
1
2
3
4
5
6
