Bernina deco 330 - Replacing Switching Power Supply

29
Deco 330
Replacing Switching Power Supply

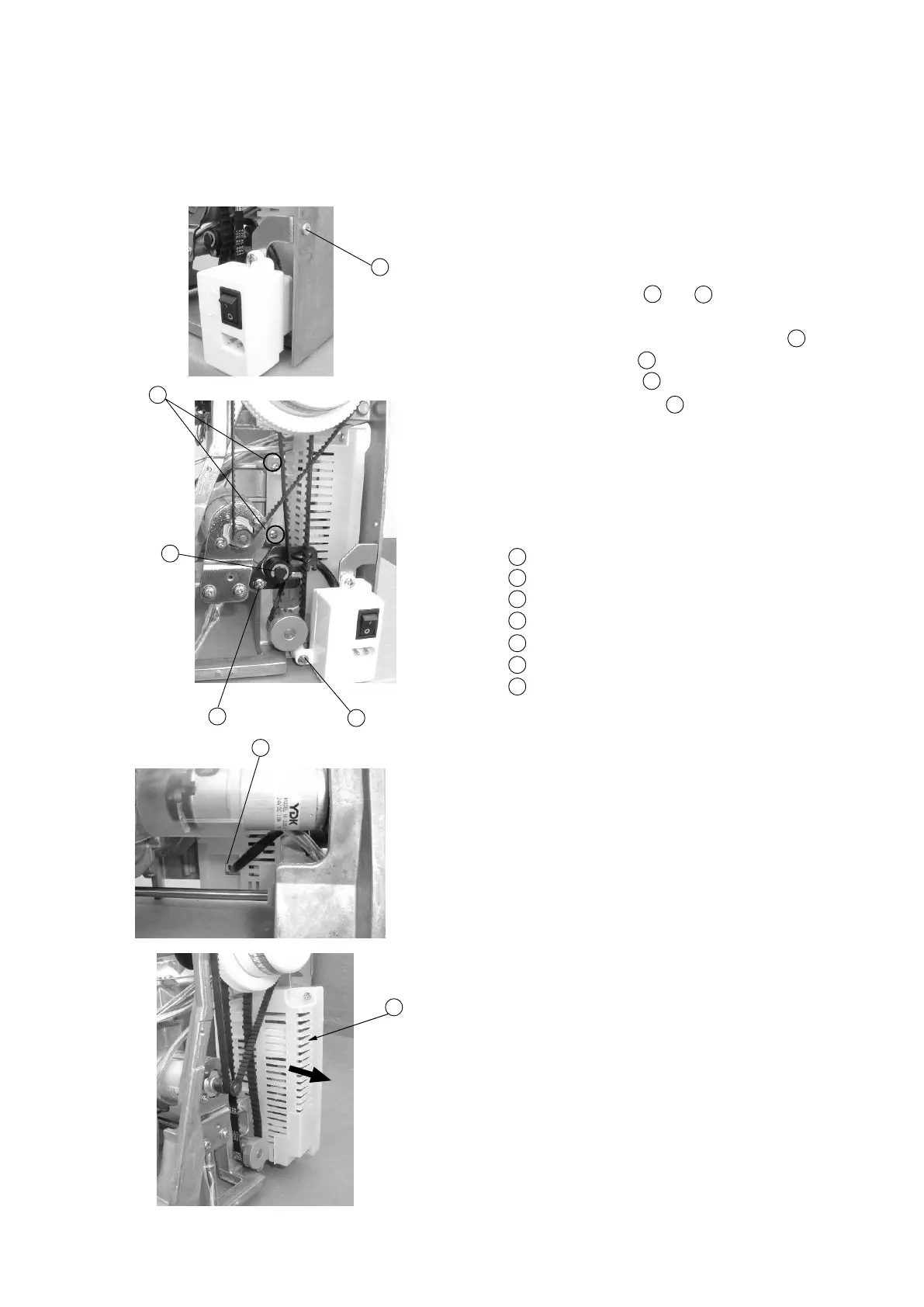

Toremove:
1 Removetheface cover,beltcover,frontcover and
rear cover.
2 RemoveScrews (A) ,(B) and removethe
machine socket and xing plate.
3 Pull out the Machine socket unit connector .
4 RemoveScrew(C) andremovetheIdler.
5 RemoveScrews (D) (2 pieces) and takeout
Switching power supply .
Toattach:
6 Followtheaboveprocedurte in reverse.
Screw(A)
Screw(B)
Screw(C)
Screw(D)
Idler
Machine socket unit connector (primarycircuit)
Switching power supply unit
