5.2.4 Softkeys
Softkeys are used to select different menu groups and operating levels within the menu
structure. Depending on the current position in the menu structure, functions are
assigned to these keys, as shown on the display above the respective key.
5.2.5 Menu Structure
The menu structure is illustrated on the following pages. Push <more> to select the
various menu groups. From there you get to the respective menu by pushing <sk1> or
<sk2>. Within the menu, push <more> to go to the individual windows and at the end
of the menu push <done> to return to the menu group.
sk1 and
sk2
Go to the indicated menu
more Go to next display or menu group
done Shows the end of the menu and
takes you back to the menu group
^^^
T
ext: scrolls through the various
selection options
Numerical values: increments the
number marked by the cursor by 1

Moves the cursor to the left and at
the end of the input field again to the
start position
+ and -
Scrolls forward / back in a result list
or in the live display

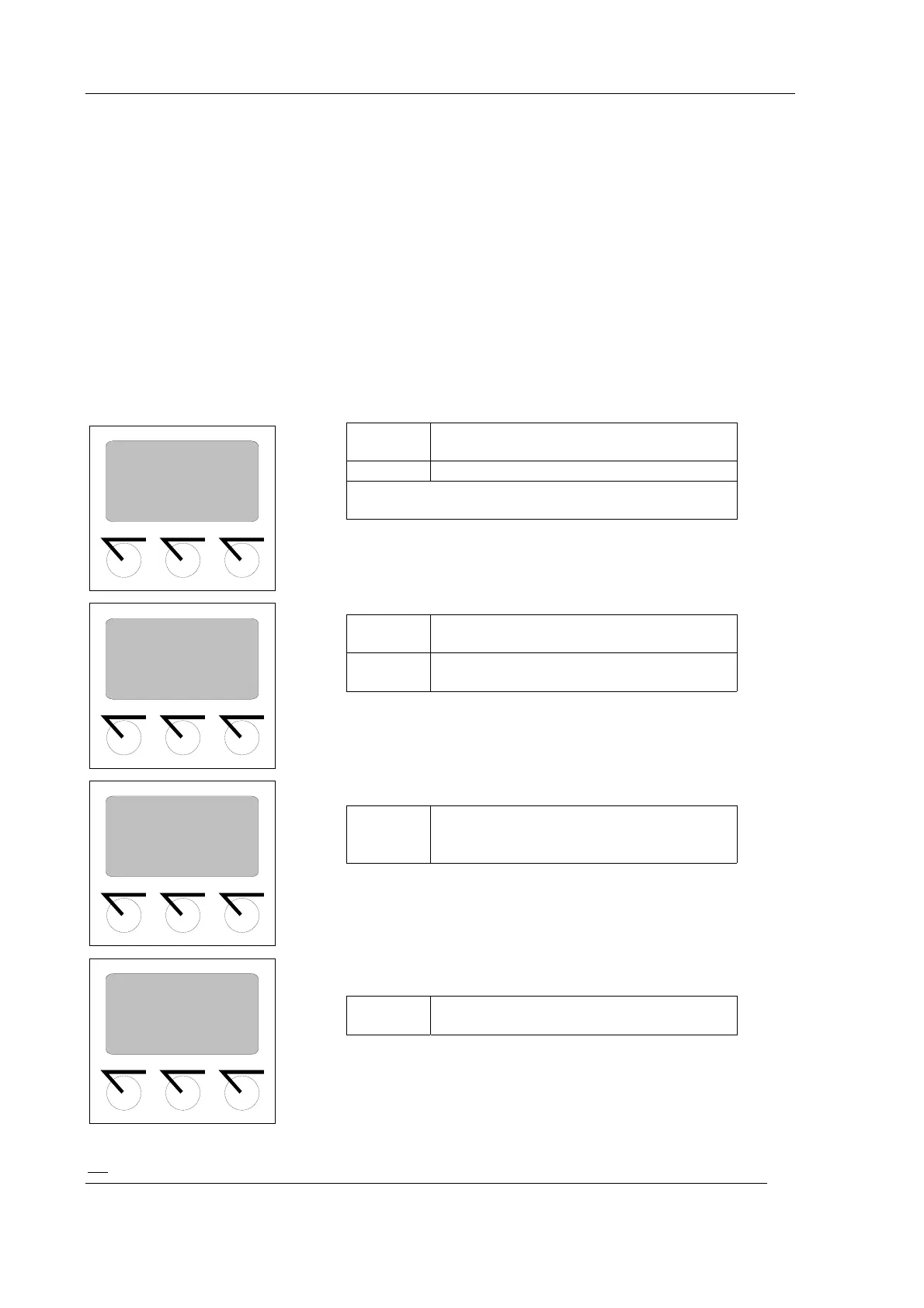

Figure 10: Softkey functions
sk1: General Data
sk2: Operating Mode
sk1 sk2 more
Relay 2
Minimum 50%
Hysteresis 5%
<-<-<-
^^^
mo re
Time constant
Value 20s
^^^ <-<-<- more
HV (500): 20/s
HV (560): 123/s
HV (560): 620/s
+ - exit
