ADJUSTMENTS
32
GB
ADJUSTING THE SPRING
PRELOAD
To adjust the spring preload, use the pro-
cedure described below.

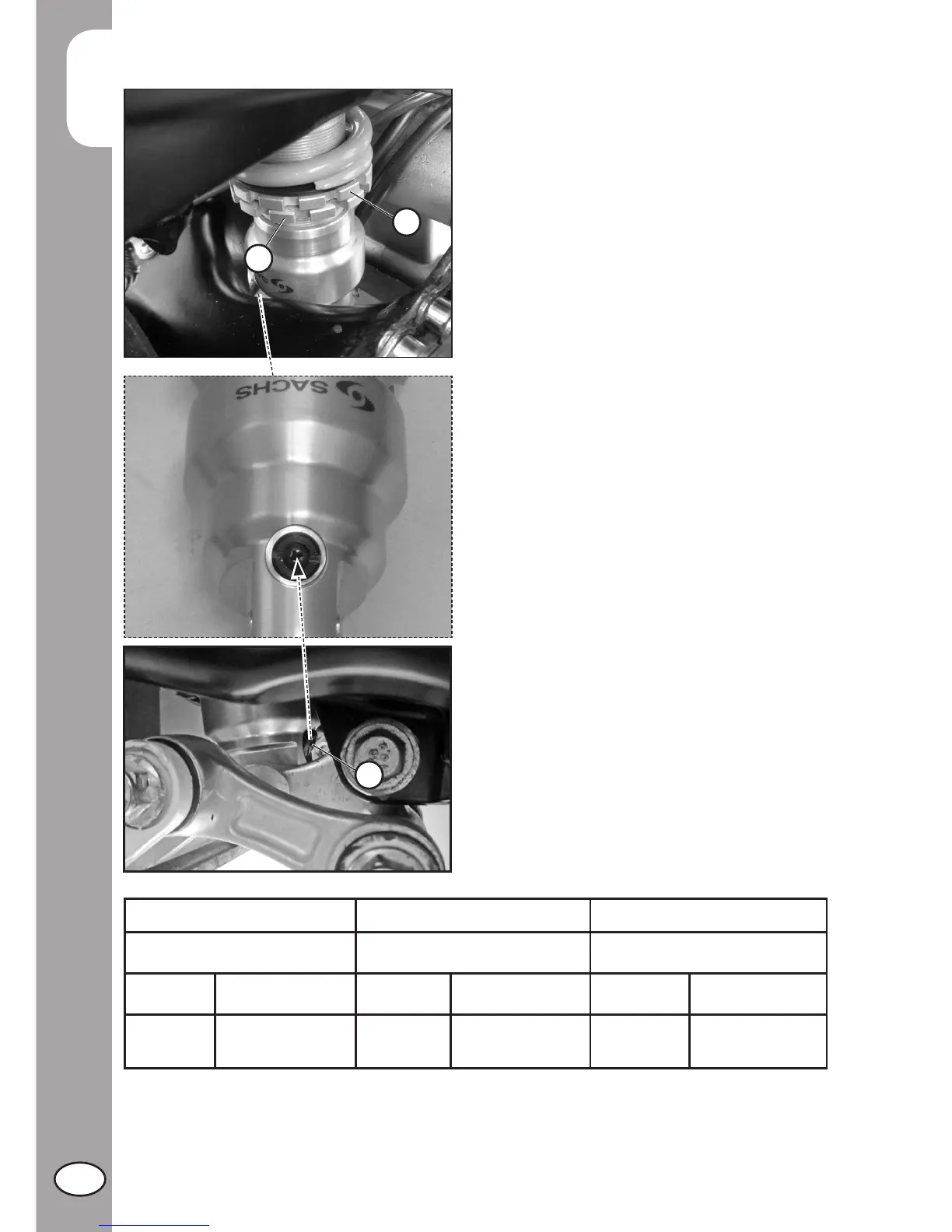

Loosen counter-ring 1, rotate ring 2 clock-
wise to increase the spring preload (and
consequently the shock absorber preload)
or anticlockwise to decrease it.
After obtaining the desired preload, turn
counter-ring 1 until it stops against adjust-
ing ring 2.
For standard calibration, refer to page
11.
NOTE: for movement of the rings use a
specific sector key with square pin.
ATTENTION! Do not move the screw 3
under any circumstances.
SUSPENSION ADJUSTMENT
ACCORDING TO THE
MOTORCYCLIST’S WEIGHT
The following table shows the approximate
calibration of the suspension adjustment
according to the motorcyclist’s weight.
p < 70 Kg 70 Kg < p < 80 Kg 80 Kg < p
Adjustment Adjustment Adjustment
Fork Shock absorber Fork Shock absorber Fork Shock absorber
Standard Standard
+ 5 turns
preload
+ 1,5 turns
preload
+ 10 turns
preload
+ 3 turns
preload
2
3
1
ATTENTION! Shock absorber pre-load
max permitted = +6 turns.

Beta EVO 2T Specifications

General

Displacement	249 cc
Cooling System	Liquid cooled
Transmission	6-speed
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Dry Weight	67 kg
Engine Type	2-stroke single
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	2.5 liters
Frame	Aluminum
