CHECKS AND MAINTENANCE
41
GB

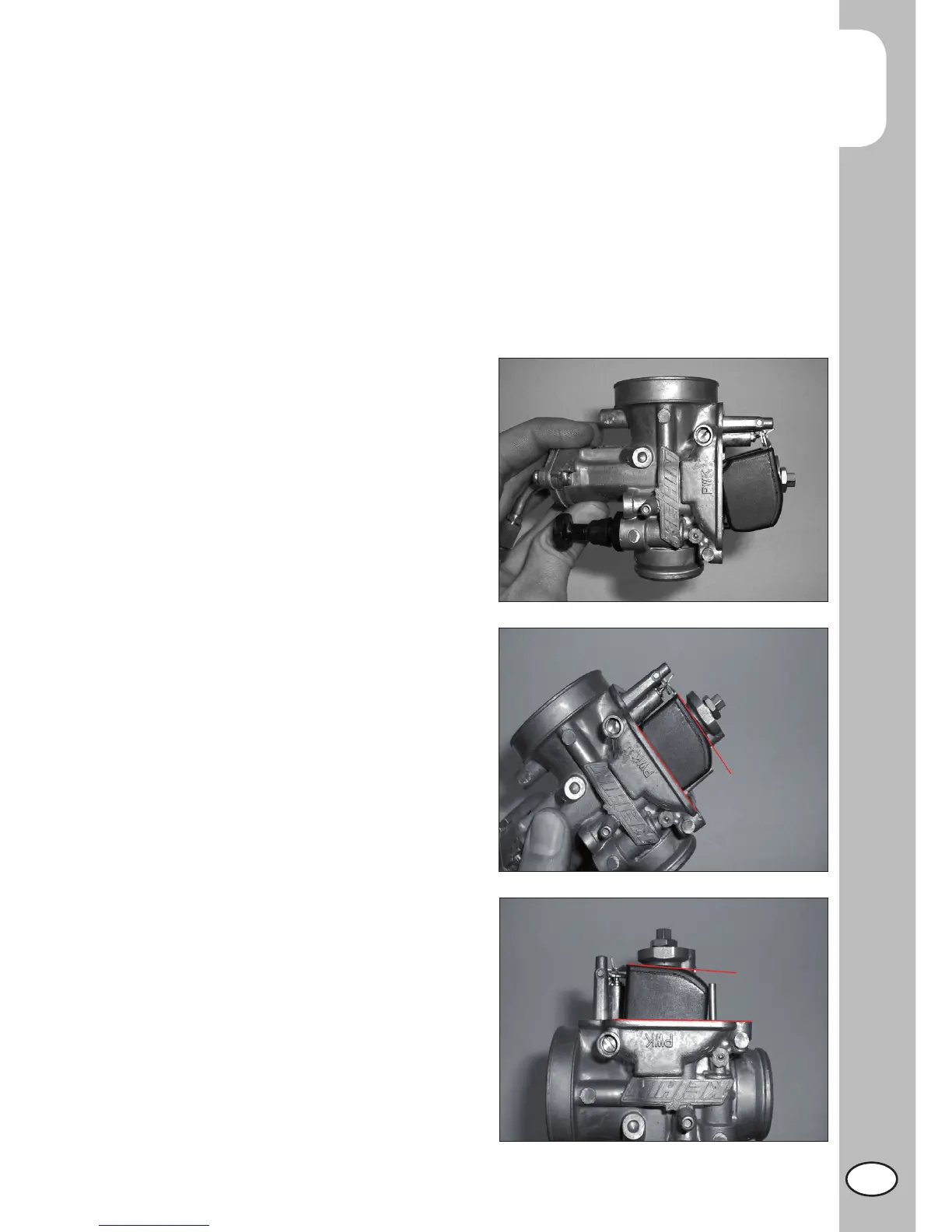

FLOAT LEVEL CHECK
Remove the carburetor from the vehicle
after following the procedure for emptying
the carburetor bowl.
Remove the bowl and place the carburetor
as in the figure.
Start turn it in anticlockwise direction and
stop immediately when the float assy closes
the fuel valve needle.
The float level is correct if the plan surface
over the float assy is parallel to the float
chamber division plan. See the two red
lines in the picture.
ATTENTION: It’s important to avoid putting
carburetor in vertical position, otherwise
the weight of the float assy compresses
the spring into the fuel valve needle and
the position will look incorrect.
Replace the bowl to the carburetor.
Reassemble the carburetor to the vehicle,
making sure to tighten the metal clamps
on the sleeves.
WARNING:
before starting the vehicle to check for play
on the throttle (page 29).
Fuel must not come into contact with the skin, eyes, and clothing. Do not breathe
in the fuel vapours. If contact occurs with the eyes, rinse immediately with plenty
of water and seek medical advice. If contact occurs with skin, immediately clean
contaminated areas with soap and water If fuel is swallowed, contact a doctor im-
mediately. Change clothing that is contaminated with fuel.
