CHECKS AND MAINTENANCE
34
GB
GEAR OIL

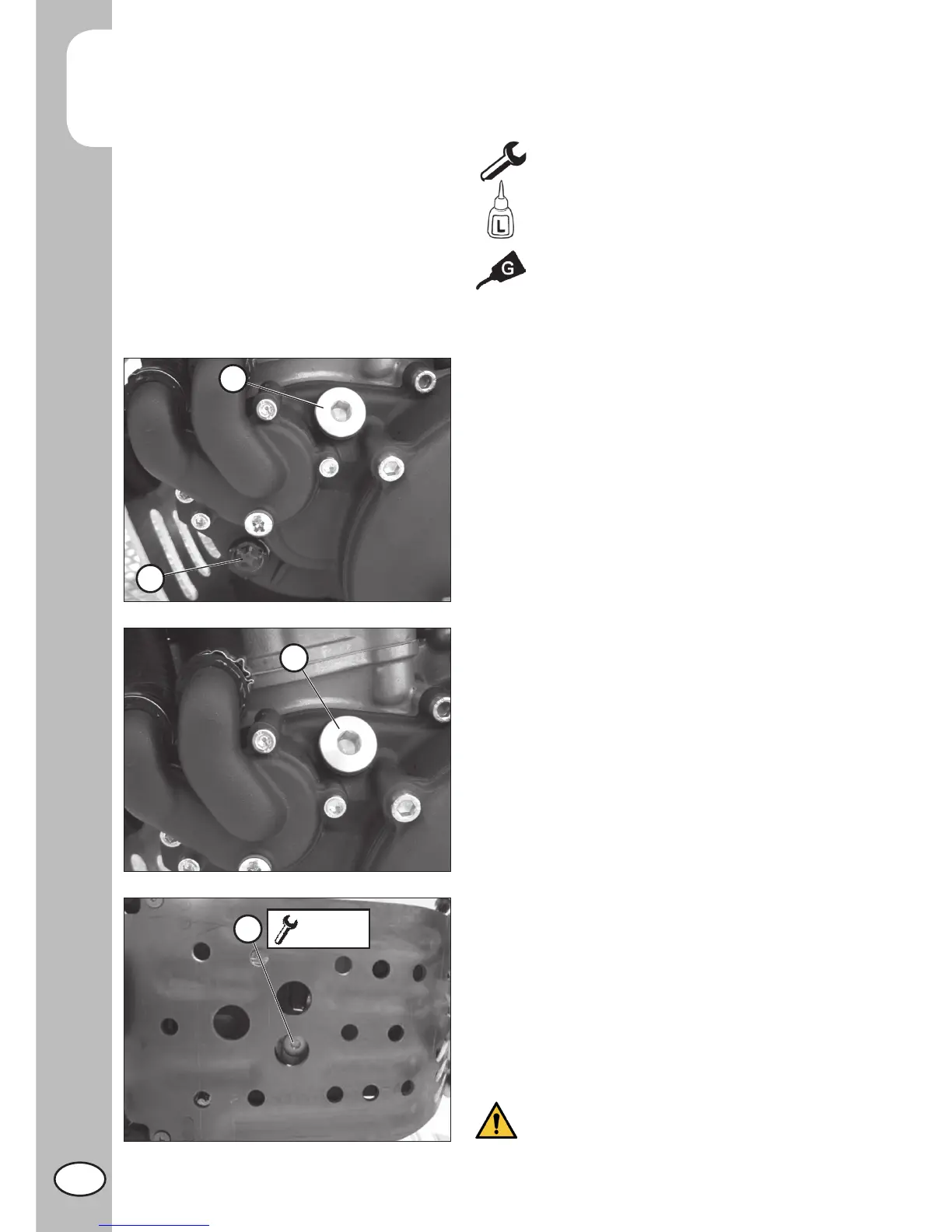

CHECK THE LEVEL
Keep the vehicle in vertical position relative
to the ground.
When engine is cold check the oil level by
means of porthole 1. The oil level must be
always visible from the porthole.
In contrary case restore the oil level through
filler cap 2.
Use the liquid indicated on page 18 in the
“Recommended lubricants and liquids” table.
REPLACEMENT
Always perform the replacement when
engine is hot:
- Position the drive on a flat base ensuring
stability
- Place a container under the engine
- Unscrew the filler cap 1 and the drain
plug 2
- Completely empty the crankcase
- Close the cap 2
- Introducing the quantity of liquid shown
at page 10.
Use the liquid indicated on page 18
in the “Recommended lubricants and
liquids” table.
- Close the filler cap 1.
WARNING:
Hot oil can cause severe burns!
2
1
1
KEY TO SYMBOLS
Tightening torque
Threadlocker Medium
Grease
2
10Nm
