Beta RR 125 LC - Camshaft and Rocker Arm Service

CAMSHAFT
EAS23730
CAMSHAFT

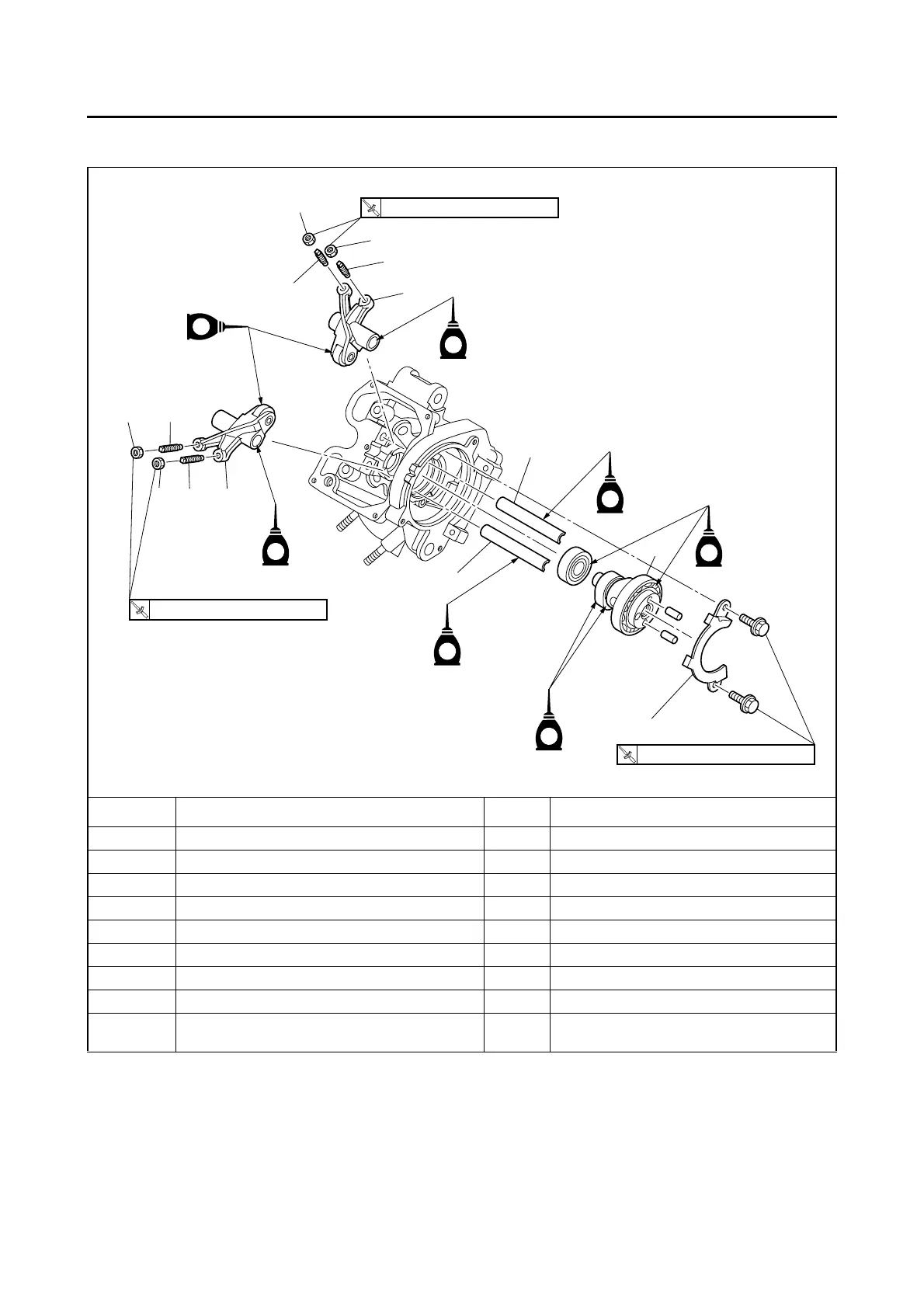

Removing the rocker arms and camshaft
Order Job/Parts to remove Q’ty Remarks
Cylinder head
1 Locknut 4
2 Adjusting screw 4
3 Camshaft retainer 1
4 Rocker arm shaft 2
5 Intake rocker arm 1
6 Exhaust rocker arm 1
7 Camshaft 1
For installation, reverse the removal proce-
dure.
M
M
M
1
1
2
2
4
4
7
3
1
1
2
2
5
E
E
E
6
M
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
