Beta RR 125 LC - Page 77

TRANSMISSION

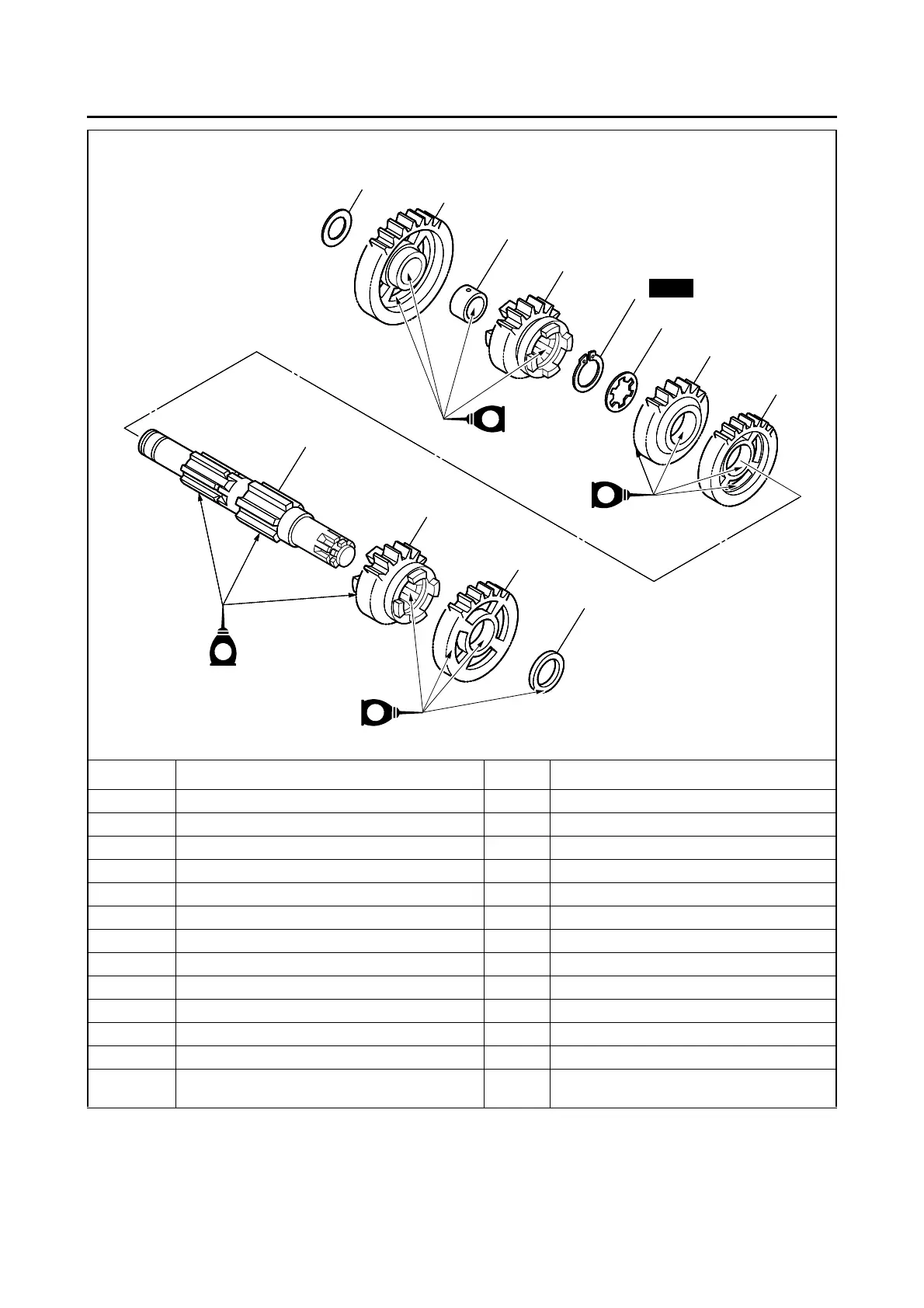

Disassembling the drive axle
Order Job/Parts to remove Q’ty Remarks
1Washer 1
2 2nd wheel gear 1
3 6th wheel gear 1
4Washer 1
5 1st wheel gear 1
6 Spacer 1
7 5th wheel gear 1
8 Circlip 1
9 Toothed washer 1
10 4th wheel gear 1
11 3rd wheel gear 1
12 Drive axle 1
