OPERATION
17
GB

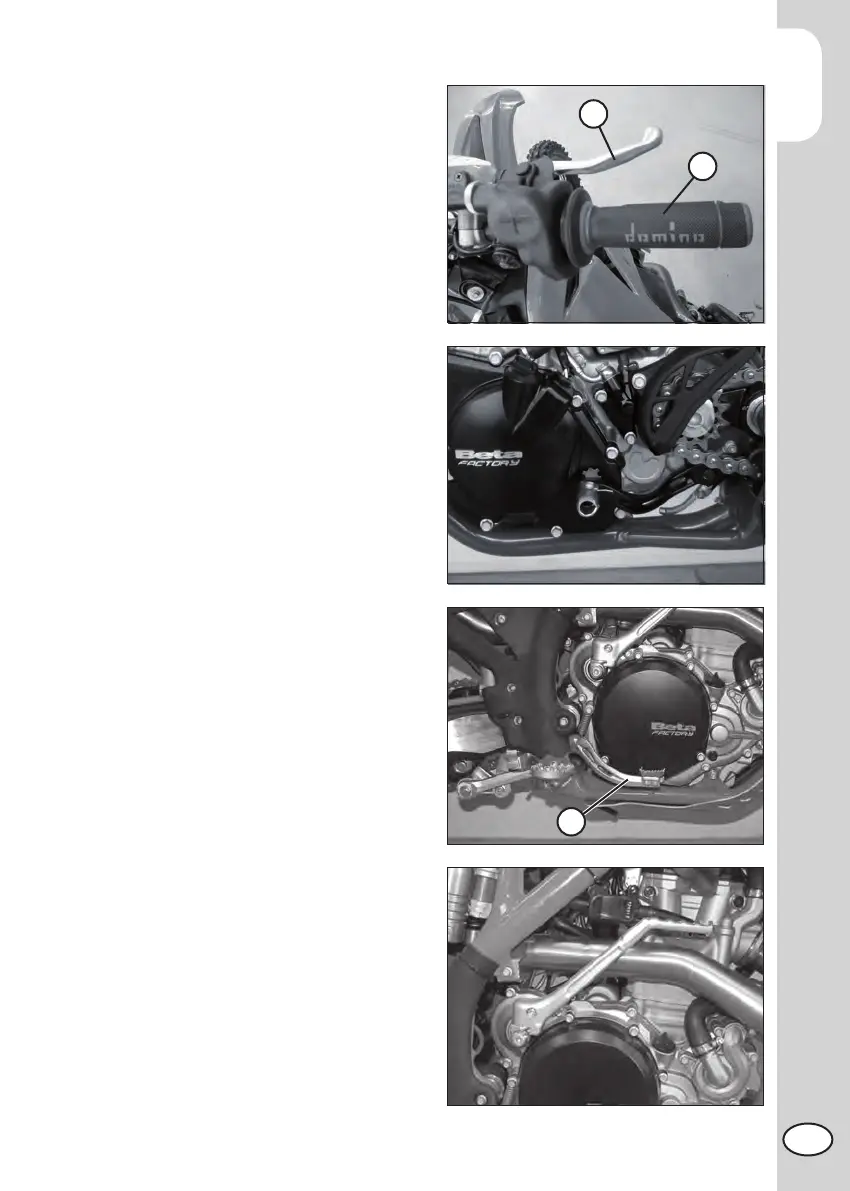

FRONT BRAKE LEVER AND GAS
CONTROL
The front brake lever A and the gas throt-
tle B are located on the right side of the
handlebar.
A
B
GEAR CHANGE LEVER
Gear change lever is fi tted to the left side
of the engine.
The positions corresponding to the different
gears are shown in the fi gure.
1
2
3
4
5
6
BRAKE PEDAL
Brake pedal 9 is located in front of the
right-hand footrest.
9
KICKSTART
The kick-starter pedal is located on the
right side of the engine. The upper part
is rotatable. To start, depress the kick-
starter outward and with a quick movement
downward.
The pedal will automatically return up-
wards. After starting, manually fold the
pedal in the rest position.
N
