3
ADJUSTMENTS
34
GB

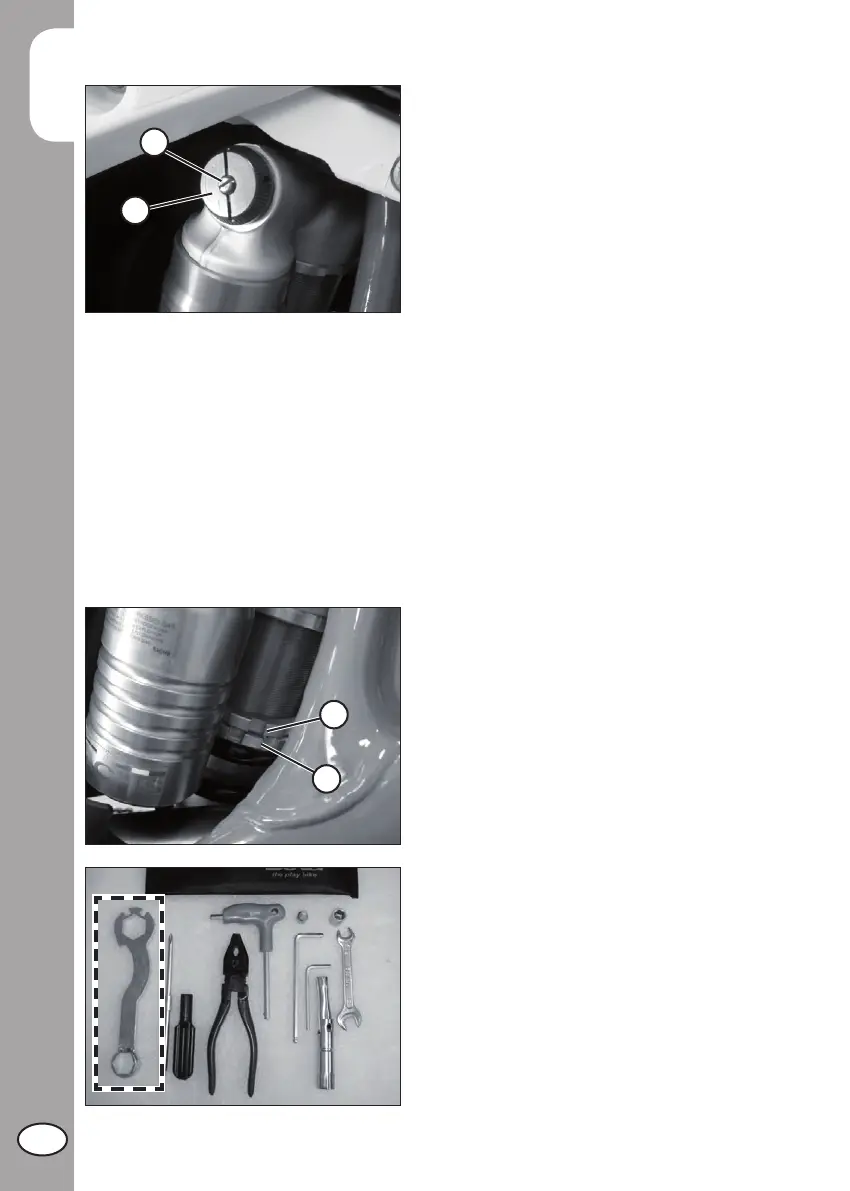

ADJUSTING THE SPRING PRELOAD
Loosen counter-ring E, rotate ring F clock-
wise to increase the spring preload (and
consequently the shock absorber preload)
or anticlockwise to decrease it. After ob-
taining the desired preload, turn counter-
ring E until it stops against adjusting ring F.
For standard setting, refer to page 12.
NOTE: for the handling of ring nuts use the
specifi c wrench provided in the standard
tool kit shown in the fi gure.
ADJUSTING THE HYDRAULIC
COMPRESSION DAMPER (HIGH
AND LOW SPEEDS)
Adjustment for low compression speed:
Using a screwdriver, loosen screw C
by turning it clockwise to increase the
hydraulic compression damper.
For standard setting, refer to page 12.
Adjustment for high compression speed:
Turn knob D anticlockwise to decrease the
hydraulic compression damper.
For standard setting, refer to page 12.
WARNING
Starting from the standard position, turn
the knob anticlockwise (with a closing ac-
tion), the center screw will have an integral
movement, then will rotate with the knob.
For standard setting, refer to page 12.
C
D
F
E
