FAMILIARIZING WITH THE VEHICLE

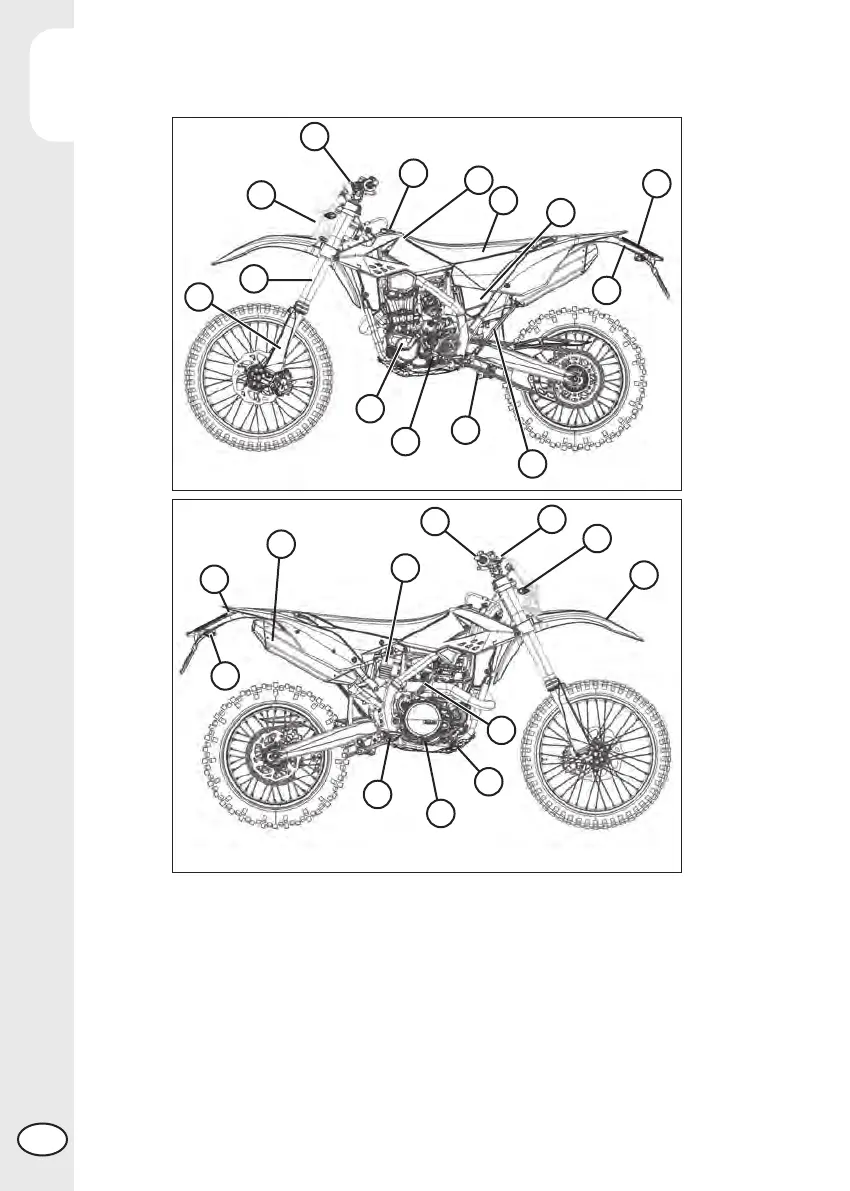

MAIN PARTS:
1 - Fuel tank
2 - Tank cap
3 - Silencer
4 - Rear shock absorber
5 - Headlight
6 - Rear light
7 - Side stand
8 - Fork
9 - Rider’s footrests
10 - Lower bumper
(Bumper kit)
11 - Saddle
12 - Engine
13 - Front mudguard
14 - Number-plate holder
15 - Kick-start
16 - Gear lever
17 -
Rear brake lever
18 - Front brake lever
19 - Clutch lever
20 - Throttle
21 - Fork covers
22 - Rear mudguard
23 - Cover air fi lter
24 - Front indicators
25 - Rear indicators
