3
ADJUSTMENTS
31
GB

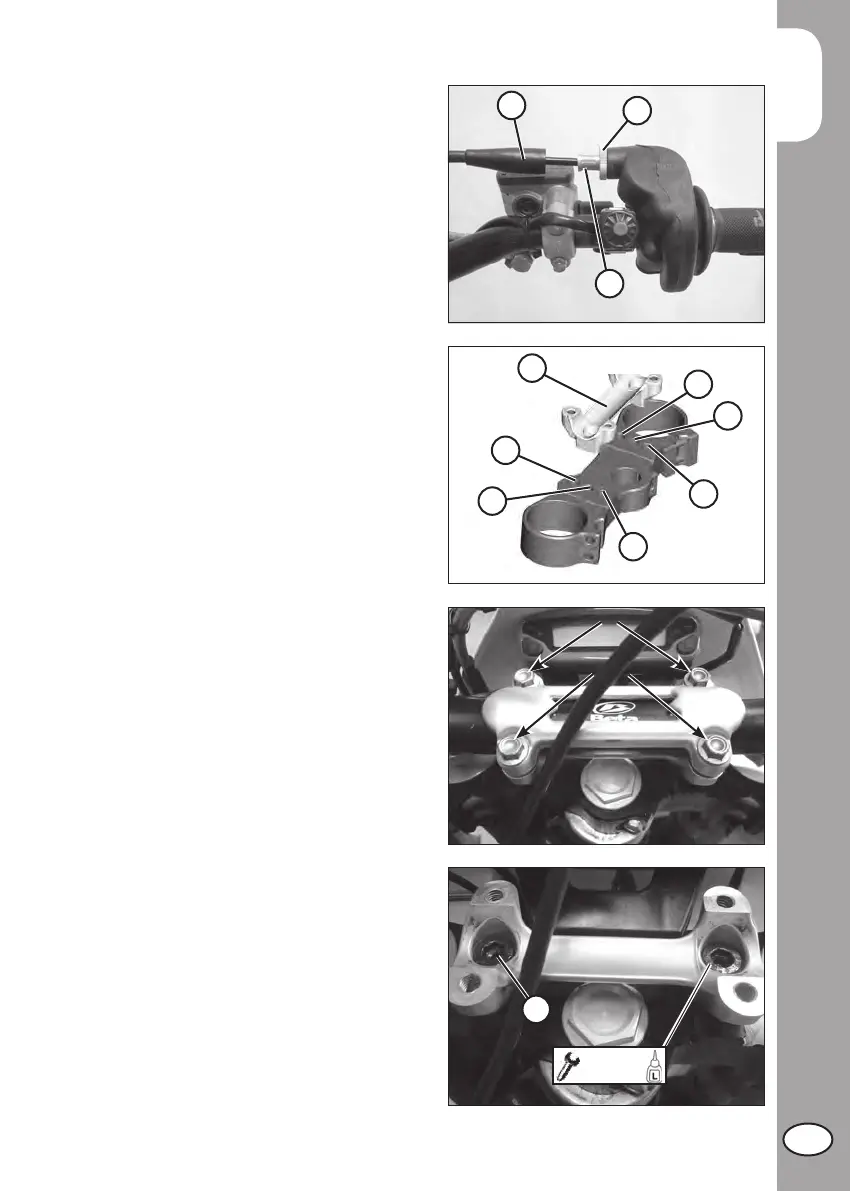

HANDLEBAR ADJUSTMENT
U-BOLT POSITION ADJUSTMENT
The lower bracket 1 can be mounted on
the holes nr. 2, 3 or 4 respectively.
1
2
2
3
4
3
4
ADJUSTMENT OF GAS
CLEARANCE
The throttle control cable should always
have a 3-5 mm play. In addition, the idle
speed should not change when the han-
dlebars are fully rotated to the left or right.
Push back protective cap 1. Loosen coun-
ternut 2 and turn adjusting screw 3.
Tighten the counternut and check that the
throttle twist grip turns smoothly.
2
3
1
To adjust the position of the u-bolt remove
the screws shown in the fi gure.
Remove the handlebar.
Remove the screws 5.
Note: Before removing the screws 5 heat
the area with a hairdryer of the type used
by coachbuilders.
Position the U-bolt as required.
At the end refi t the screws 5 after the ap-
plication of thread lock fl uid and tighten
to the torque indicated.
40Nm
5
