3
ADJUSTMENTS
30
GB
CLUTCH

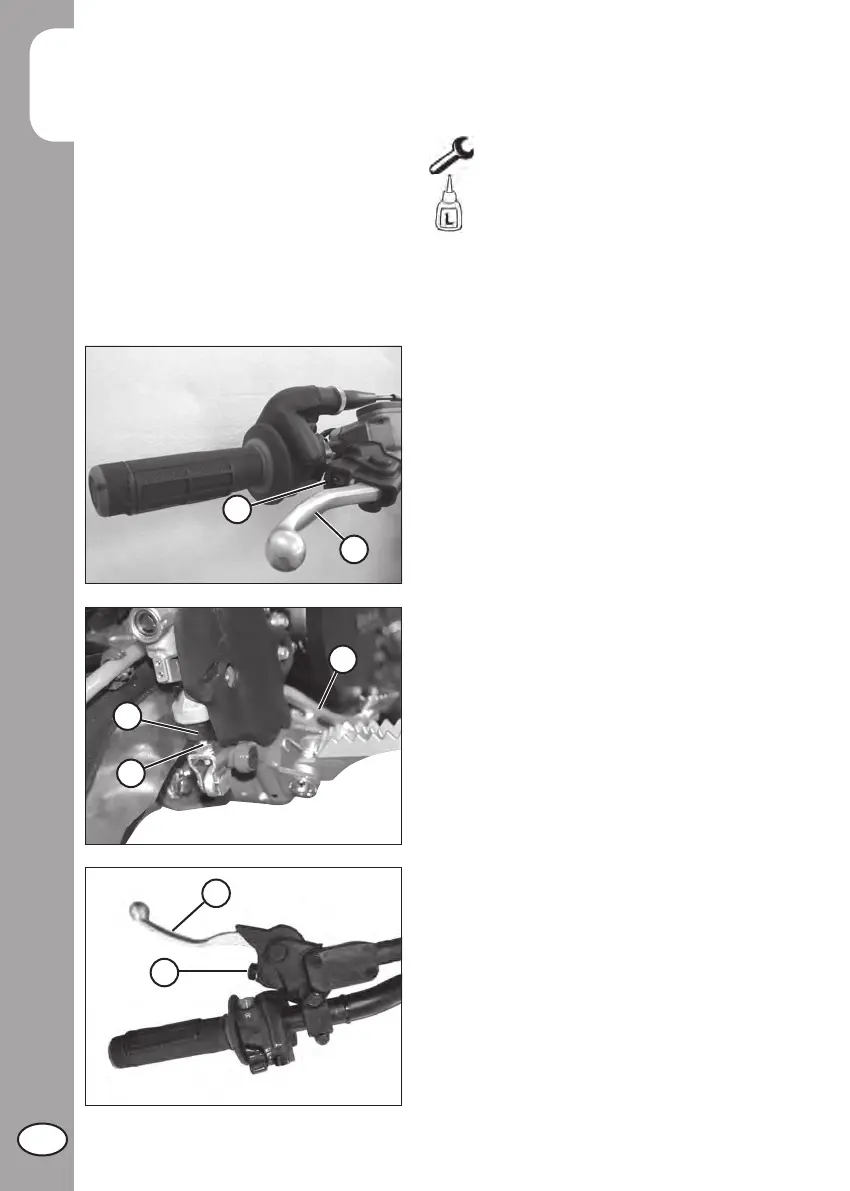

The adjustment screw 6 allows adjustment
of the distance of lever 7 from the knob.
The empty run is recovered automatically.
BRAKES
FRONT BRAKE
The front brake is disk type with hydraulic
control.
The home position of brake lever 2 can be
adjusted by means of screw 1.
REAR BRAKE
The home position of brake pedal 3 can
be altered by turning adjusting screw 4 af-
ter loosening the counternut located under
dust cap 5. Loosen the counternut and turn
the adjusting screw until the desired height
is obtained. Retighten the counternut after
completing the operation.
1
2
3
4
5
6
7
KEY TO SYMBOLS
Tightening torque
Threadlocker Medium
