CLUTCH CONTROL
CHECK THE LEVEL

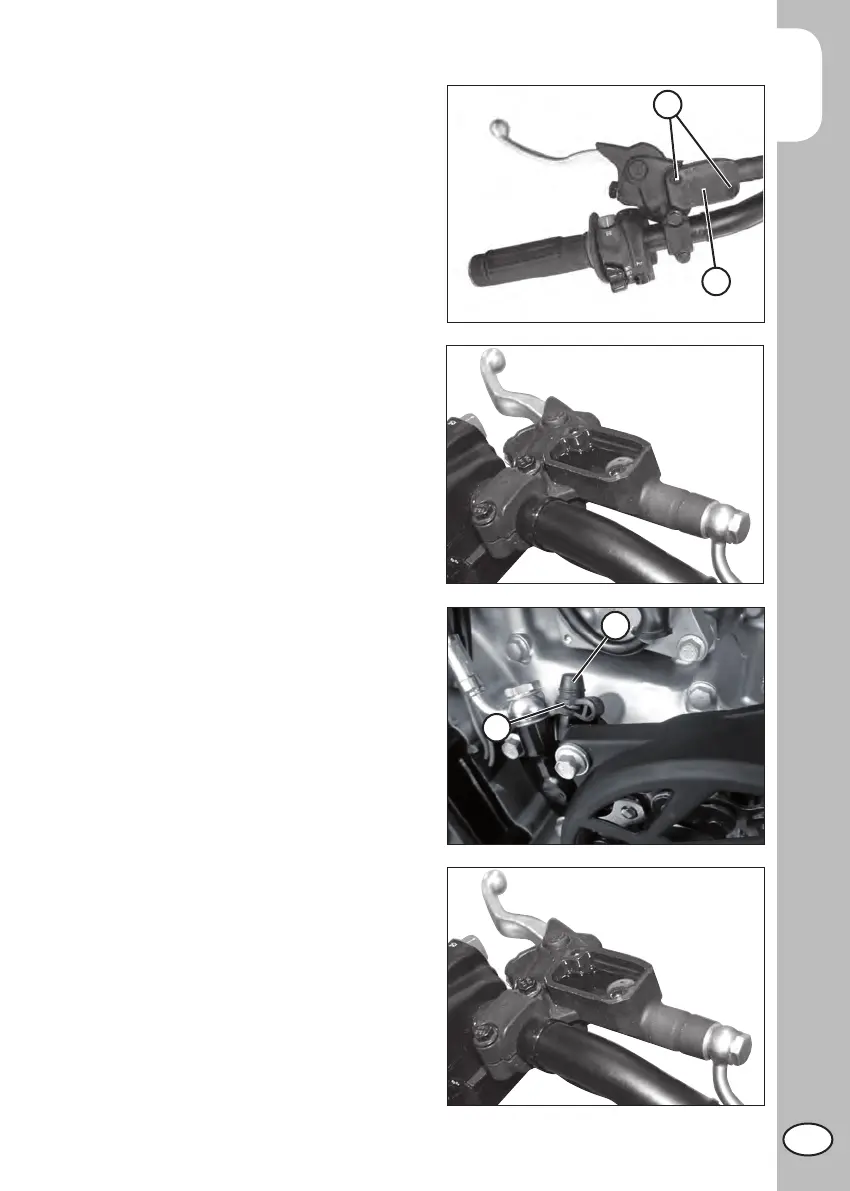

To check the oil level in the clutch pump,
fi rst remove cover 1.
Remove the two screws 2 and take off
cover 1 together with the rubber bellows.
With the clutch pump in a horizontal posi-
tion, the level of the oil should be 5 mm
below the upper rim.
In the case where the level is lower than
specifi ed top up.
Use the liquid indicated on page 14 in
the “Recommended lubricants and liquids”
table.
WARNING
The clutch fl uid is extremely corrosive. Take
care not to spill it on the paintwork.
BLEEDING
To bleed air from the clutch pump, proceed
as follows:
•Remove the rubber cap 1 from the valve 2.
•Open the sump cap.
•Place one end of a small transparent tube
into the valve 2, and the other end inside
a container.
•Pump with the clutch lever 2/3 times and
keep the lever pressed.
•Unscrew the valve and let the oil drain.
•If are still visible in the tube repeat above
operation until obtaining a continuous
outfl ow of oil within no air bubbles.
•Close the valve and release the lever.
NOTE:
During this procedure, continuously top up
the pump tank to replace the liquid that is
out fl owing.
• Remove the tube.
• Replace the rubber cap.
