5
REPLACEMENTS
65
GB

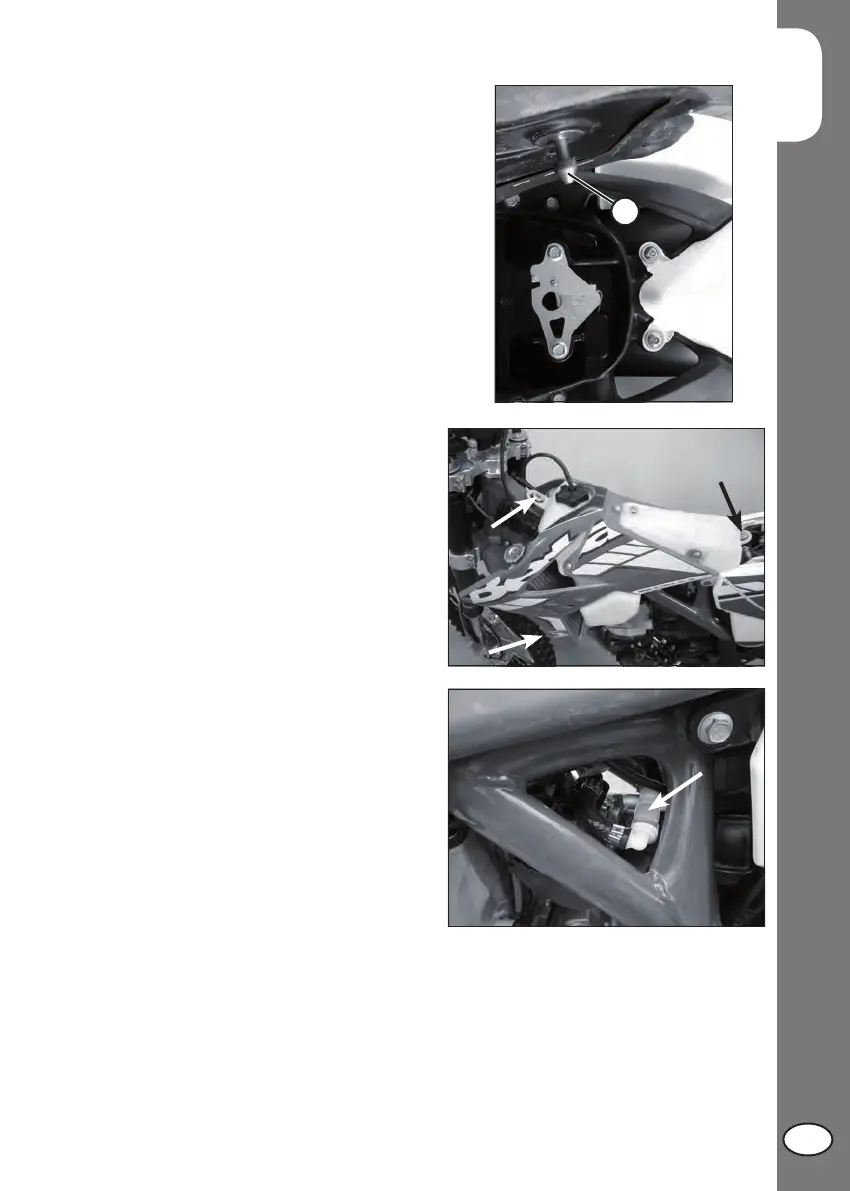

WARNING
Make sure the bayonet joint 3 is fi rmly
inserted into the button lock
Disconnect the fuel hose by pressing the
appropriate button of the quick coupling.
Lift the tank.
REMOVAL AND REFITTING
OF THE TANK
Remove the saddle (page 64).
Remove the two screws fastening the tank
to the frame and the screw (one per side)
securing the fairing to the radiator.
3

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Beta RR 350 and is the answer not in the manual?

Beta RR 350 Specifications

General IconGeneral
Bore x Stroke88 mm x 57.4 mm
IgnitionDC-CDI
LubricationWet sump
Transmission6-speed
ClutchWet multi-disc
Front Brake260 mm disc
Rear Brake240 mm disc
Front Tire90/90-21
Rear Tire140/80-18
Seat Height940 mm
Ground Clearance320 mm
Dry Weight107 kg
Rear SuspensionSachs shock absorber
Fuel Capacity9.5 liters
