5
REPLACEMENTS
66
GB

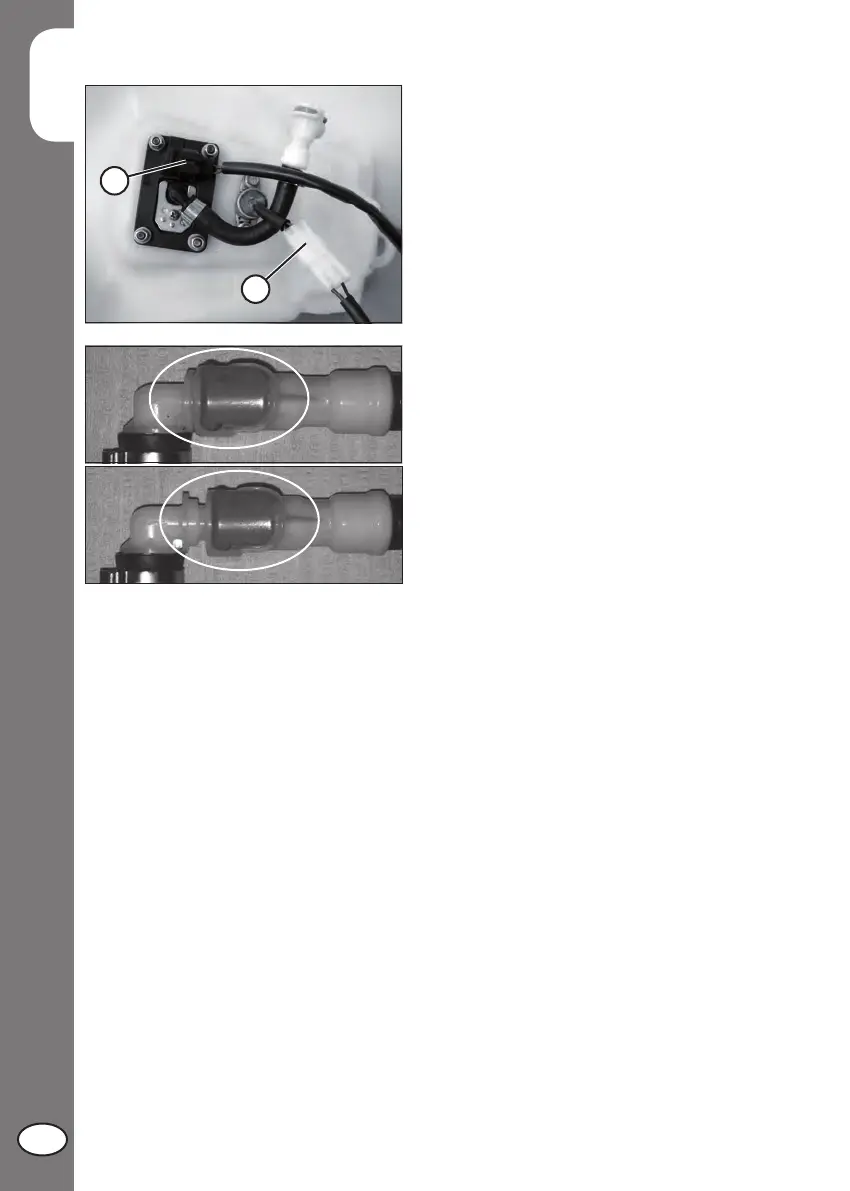

Disconnect the electrical connector 3
and 4.
Remove the tank with its fairings.
Reassemble proceeding in the reverse
order.
WARNING
For safety reason, the fuel fl ow is stopped
when the connector is even partially en-
gaged.
Make sure that the fuel quick release fi ttings
are well inserted.
4
3
OK
NO
