Repair work at the humidifying and dehumidifying system
9.2.3 Components of the humidification module (-9A1)

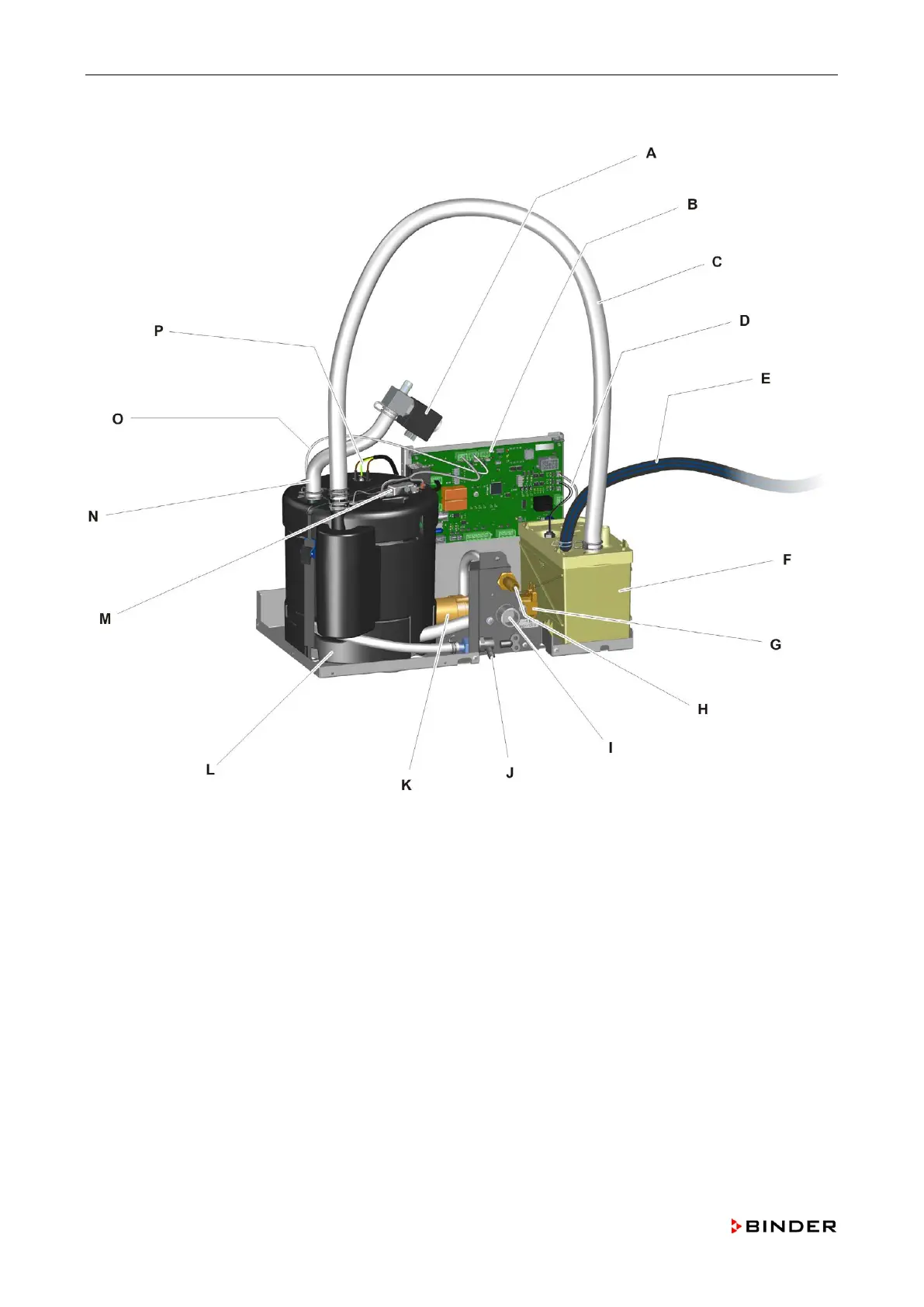

Figure 51: Components of the humidification module
A Steam valve (-Y2) I Connection water inlet
B Controller board J Drain tap
C Riser hose K Drain pump (-M1)
D Safety level sensors L Boiler
E Condensate drain hose M Safety thermostat (130 °C)
F Drain tank N Steam hose
G Inlet valve (-Y1) O Level sensor
H Connection water outlet P Heating connection
106 Service Manual KBF (E5.2) 04-2015
