Repair work at the inner and outer chamber

7 Repair work at the inner and outer chamber

7.1 Replacing the glass door

Spare parts: Glass door 115 complete, (order no. 8010-0088)

Glass door 240 complete, (order no. 8010-0143)

Glass door 720 complete, (2x), (order no. 8010-0086)

Distance plate (order no. 4020-0483)

Fastener block (order no. 6002-0124)

Necessary tools Crosstip screwdriver, size 2

1. Hold on to the glass door (B).

2. Remove the screws (D) of the hinges (C).

3. Remove the glass door after unscrewing the screws.

4. Install the glass door by following steps 1 to 3 in reverse order. Align the glass door before tightening the

screws.

5. Check whether the glass door gasket sits close to the inner chamber. Otherwise you need to adjust the

door. Use for this purpose the distance plates, which you can place below the hinges or the glass door

lock.

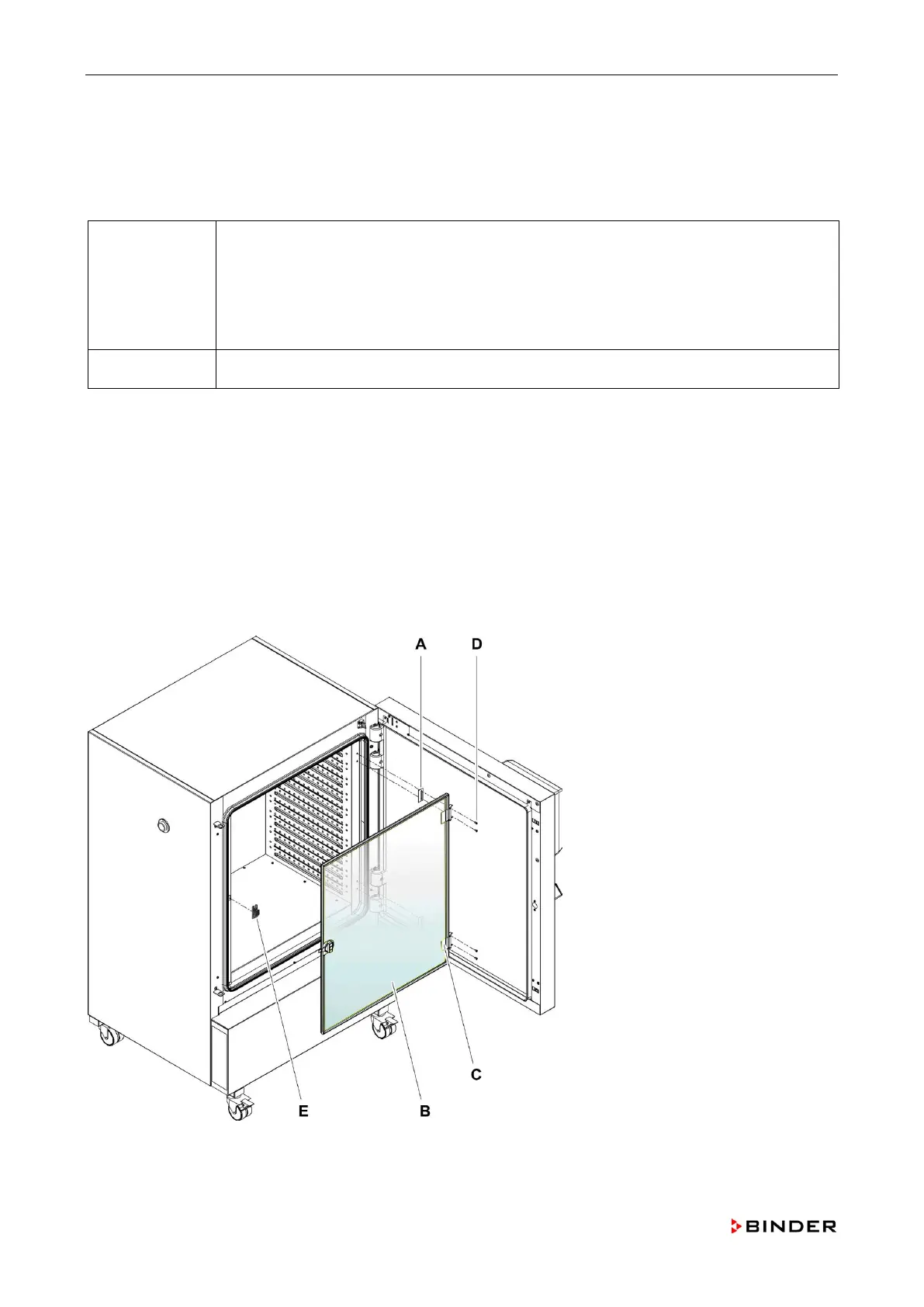

A Distance plate (when required)

B Glass door

C Hinge

D Screws

E Fastener block

Figure 17: Replacing the glass door
