Repair work at electric and electronic components
8.7 Components of the electric mounting plate (optional plate)
A
K J
E
F
G
H
I
D
B
C
L
M

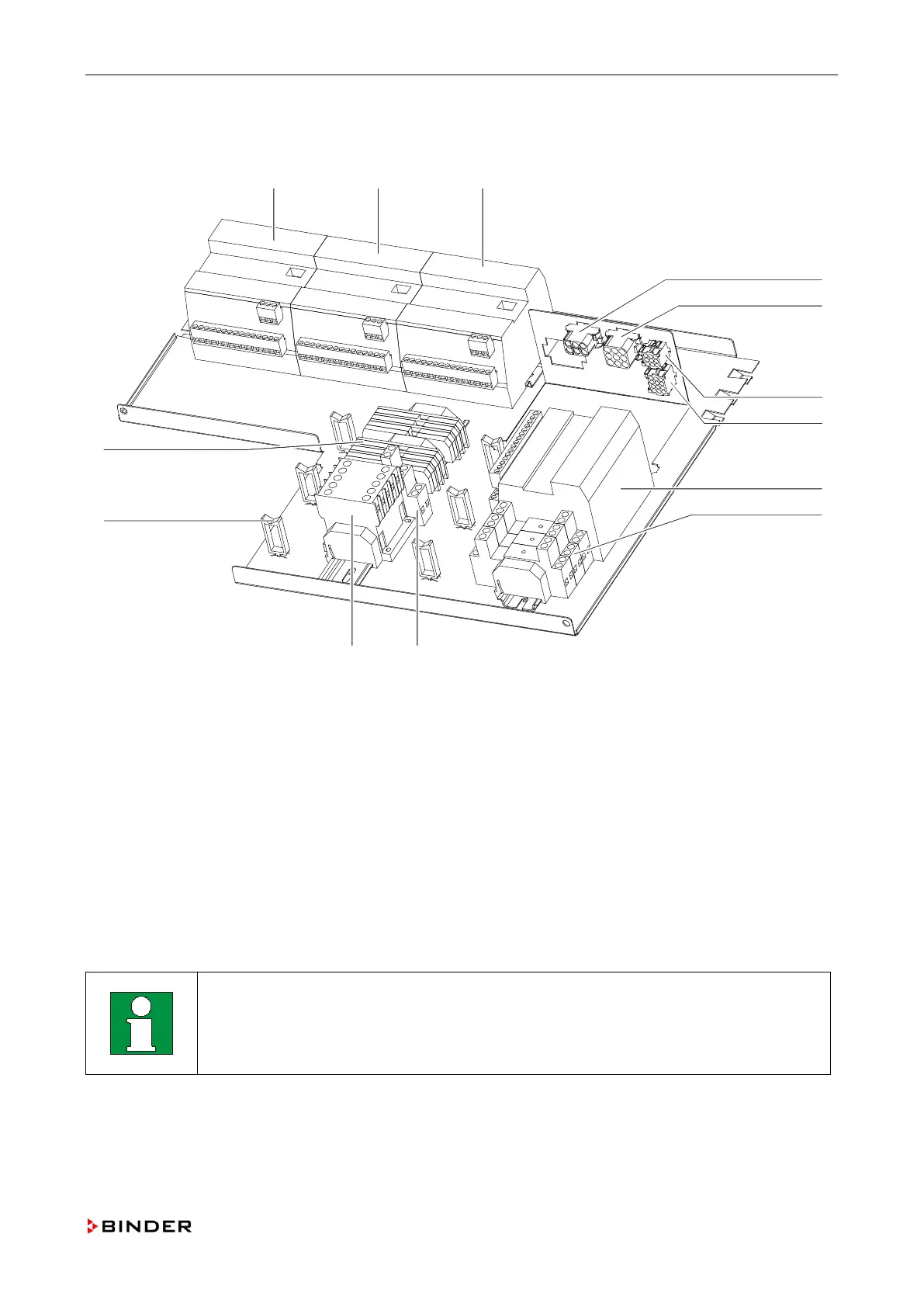

Figure
39: Components of the electric mounting plate (optional)
A Controller mTRON 4025 analog output
B Controller mTRON 4025 analog output
C Controller mTRON 4015 relay
D Connector socket 6-poles
E Connector socket 9-poles
F Connector socket 9-poles
G Connector socket 12-poles
H Controller mTRON 4030 logic relay
I Relay (2 W / 8 A) 24 VDC
J Relay (1W / 10A) 230VAC + relay socket
K Power contactor (3H/1Ö) 230 VAC - 2,2 kW
L 4-wire through terminal
M Cable clamp, white 35 mm / 1.38 in
Depending on the optional equipment the components of the electric mounting plate may
be different to those shown in the above figure.
If required please refer to the appropriate valid optional wiring diagram for further infor-
mation on the structural component or component parts used in the unit.
