Repair work at electric and electronic components
8.1 Activating and replacing the miniature circuit breaker (-1F1)
Spare parts: Miniature circuit breaker (order no. 5006-0075)
Necessary tools Flathead screwdriver, size 2
1. Disconnect the unit from the power supply.
2. Remove the housing cover on the lower front (chap. 5.1).
3. Check the miniature circuit breaker.

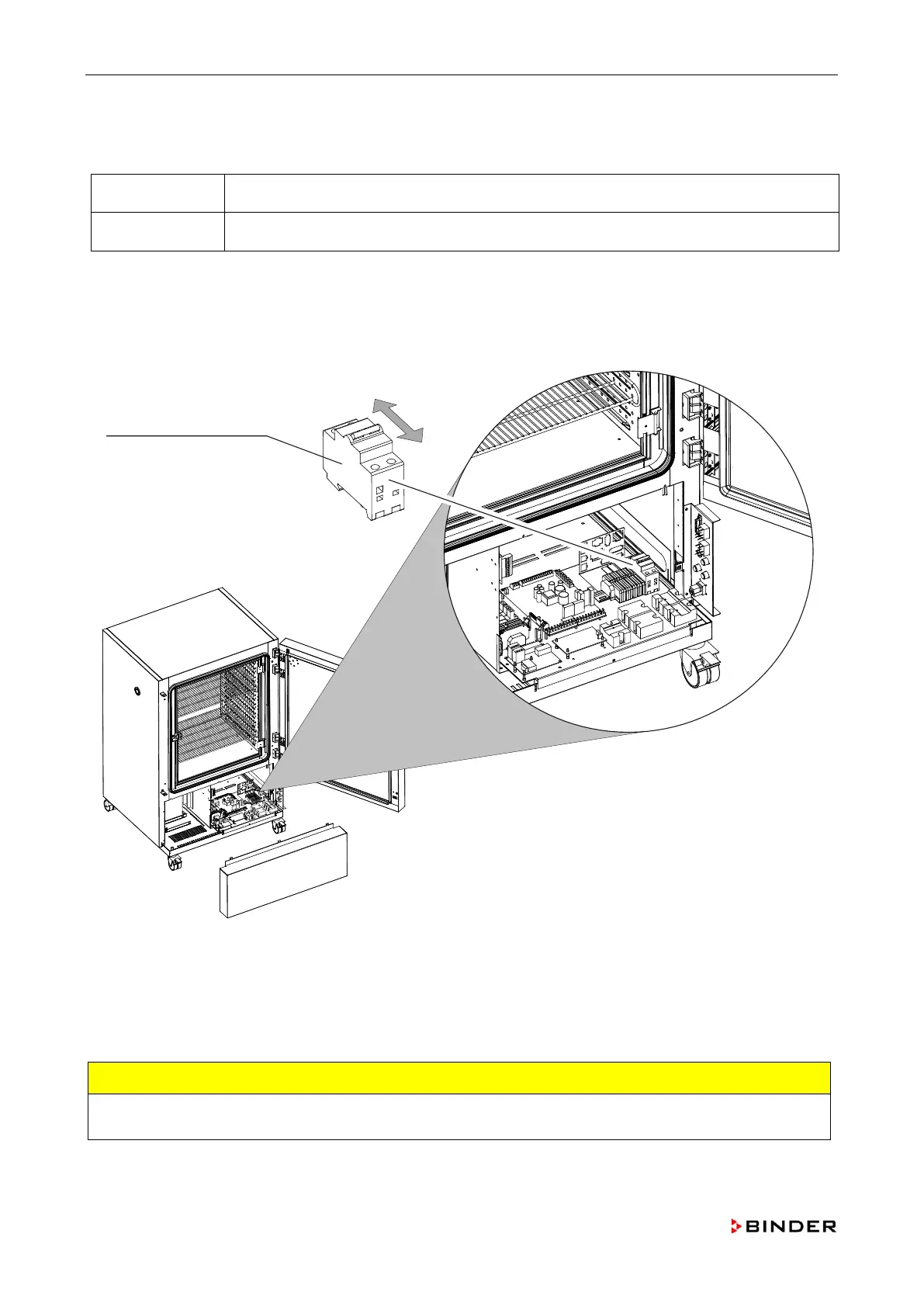

Figure 33: Miniature circuit breaker (-1F1)
A Miniature circuit breaker
If the miniature circuit breaker has responded, identify and remove
the cause before taking the unit into operation again!
76 Service Manual KBF (E5.2) 04-2015
