Repair work at the housing
5.3 Replacing the rear panel
Spare parts: Rear panel (order no. 4001-0616)
Necessary
tools:
Torx screwdriver, size T20
Danger of cutting injuries by sharp edges!
Wear protective gloves against cutting injuries during mounting and dismantling
of inner chamber parts because the sheet metal components are sharp-edged.
1. Disconnect the unit from the mains.
2. Remove the screws (B) of the rear panel (A).
3. Hint: Remove the screws crosswise to avoid jamming of the rear panel.
4. Mount the rear panel by following steps 1 to 2 in reverse order.
A Rear panel
B Screws

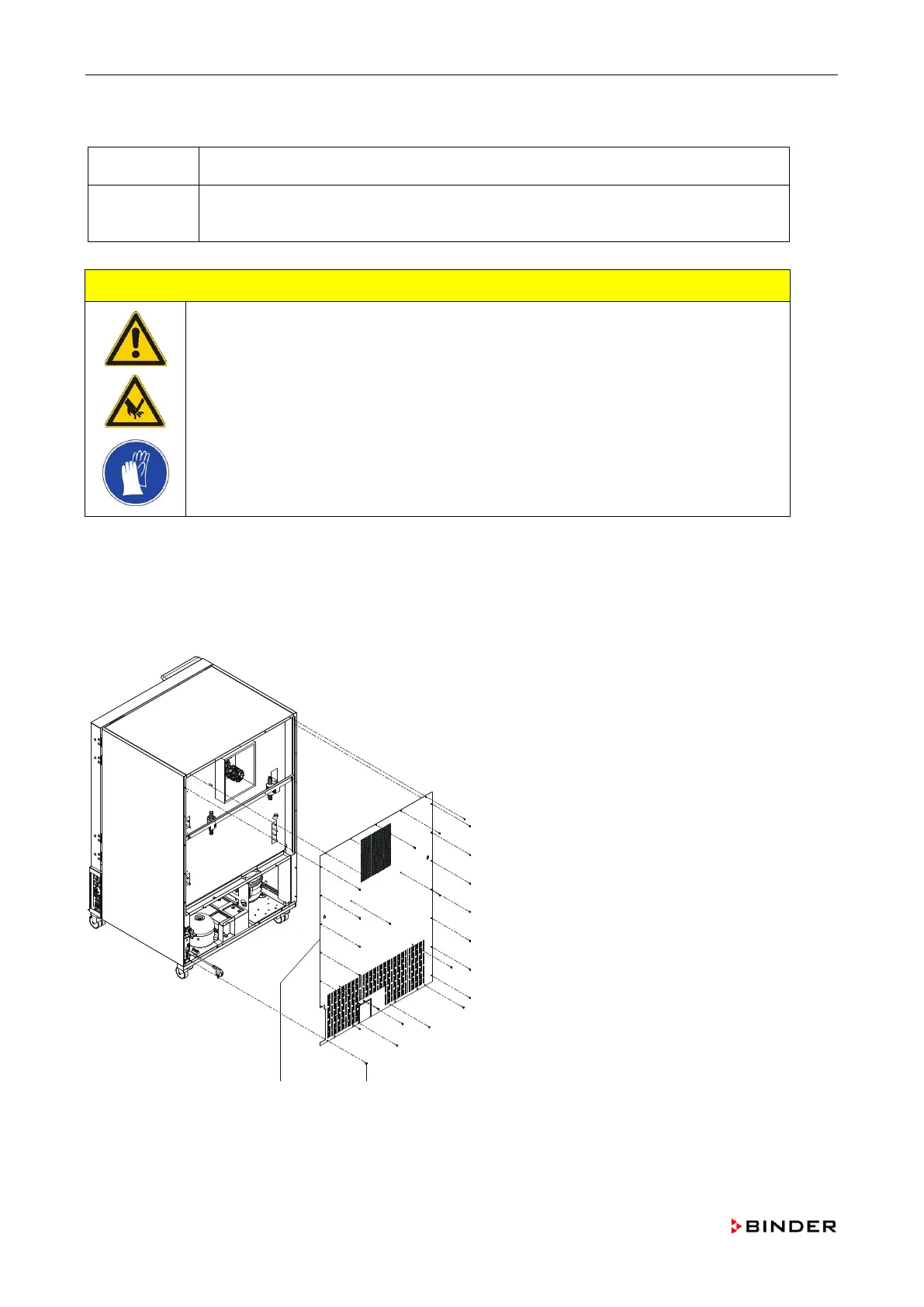

Figure 3: Replacing the rear panel
36 Service Manual KBF (E5.2) 04-2015
