Calibrating and adjusting the temperature and humidity control
11.5 Calibrating and adjusting the humidity controller
1. Set the temperature set-point to that value the calibration of the temperature control is performed at
(chap. 11.3).
2. Set the humidity set-point to that value the calibration of the temperature control is performed at (chap.
11.3).
3. Reset the humidity controller adjustment (chap. 11.5.1).
4. Calibrate the humidity controller at the first calibrating and adjusting point (chap. 11.5.2).
5. Set the humidity set-point to the other selected value for the humidity calibration and adjustment (chap.
11.2.2).
6. Calibrate the humidity controller at the second calibrating and adjusting point (chap. 11.5.2).
7. If necessary, adjust the humidity controller (chap. 11.5.3).
11.5.1 Resetting the humidity controller adjustment
Before the unit can be re-adjusted the current adjustment has to be reset and input value correction has to
be switched off.

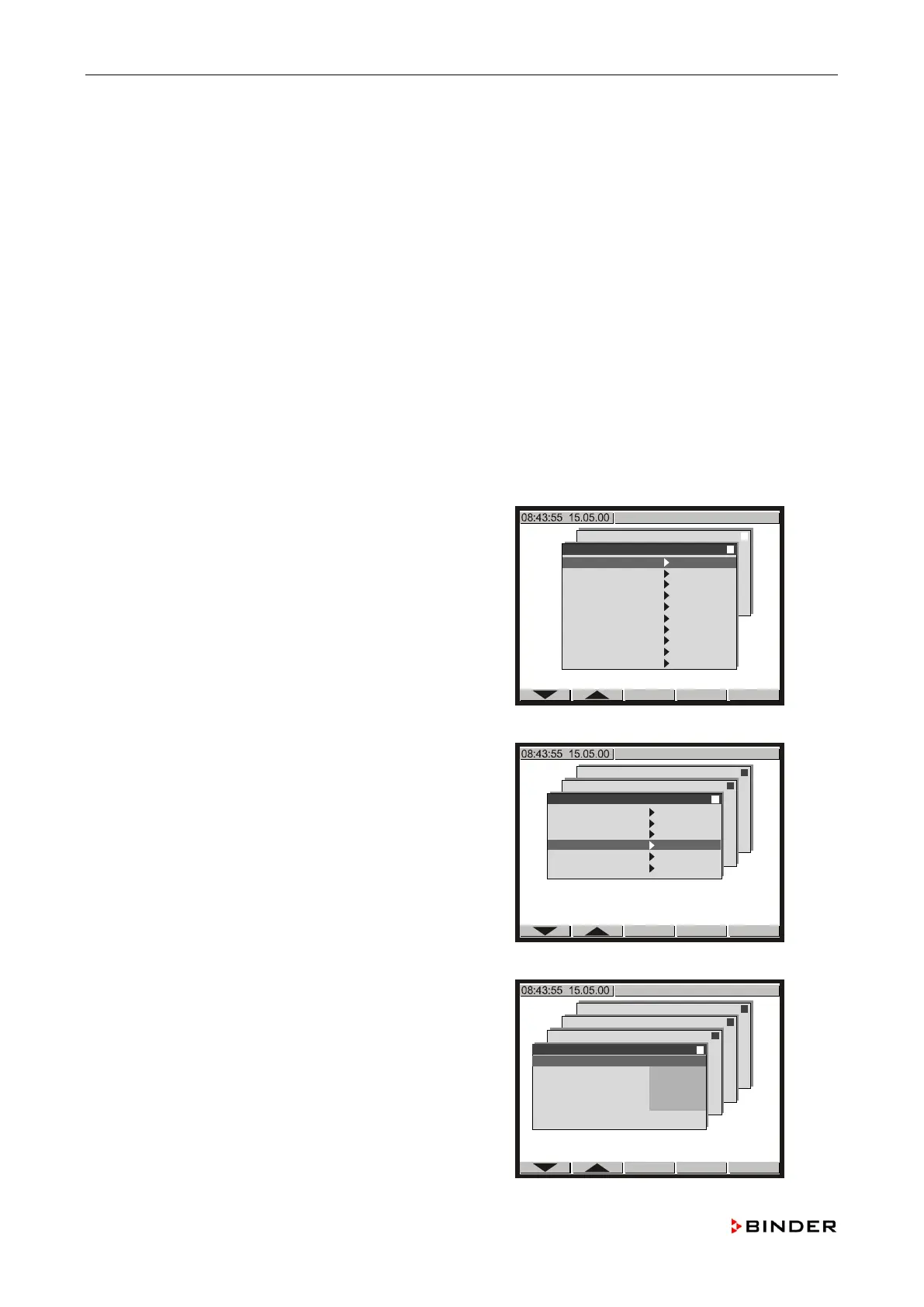

1. Enter the menu “Inp.Val. correct.“
(see steps 1 to 0, chap. 11.3.1).
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level
Inp.Val. correct.
Analogue Inputs
Analogue Outputs
Bin. Inputs
Bin. Outputs
Anal. Inp. mTRON
Anal. Out. mTRON
Bin. Inp. mTRON
Bin. Out. mTRON
Memory Display

↓
Use the buttons  or  to select the menu item
“An
alogue Input 4” and confirm with <ENTER>.
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

↓
Use the buttons  or  to select a menu item and confirm
with <ENTER>.
For each menu item a submenu will be
opened.
Use the buttons
, , and  to key in the
values d
escribed below and confirm with <ENTER>.
State: Off
Start value X: 0.0
Start value W: 0.0
End value X: 1000.0
End value W: 1000.0
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

Analogue input 4
State Off
Start Value X + 0.0
Start Value W + 0.0
End Value X +1000.0
End Value W +1000.0

