Calibrating and adjusting the temperature and humidity control

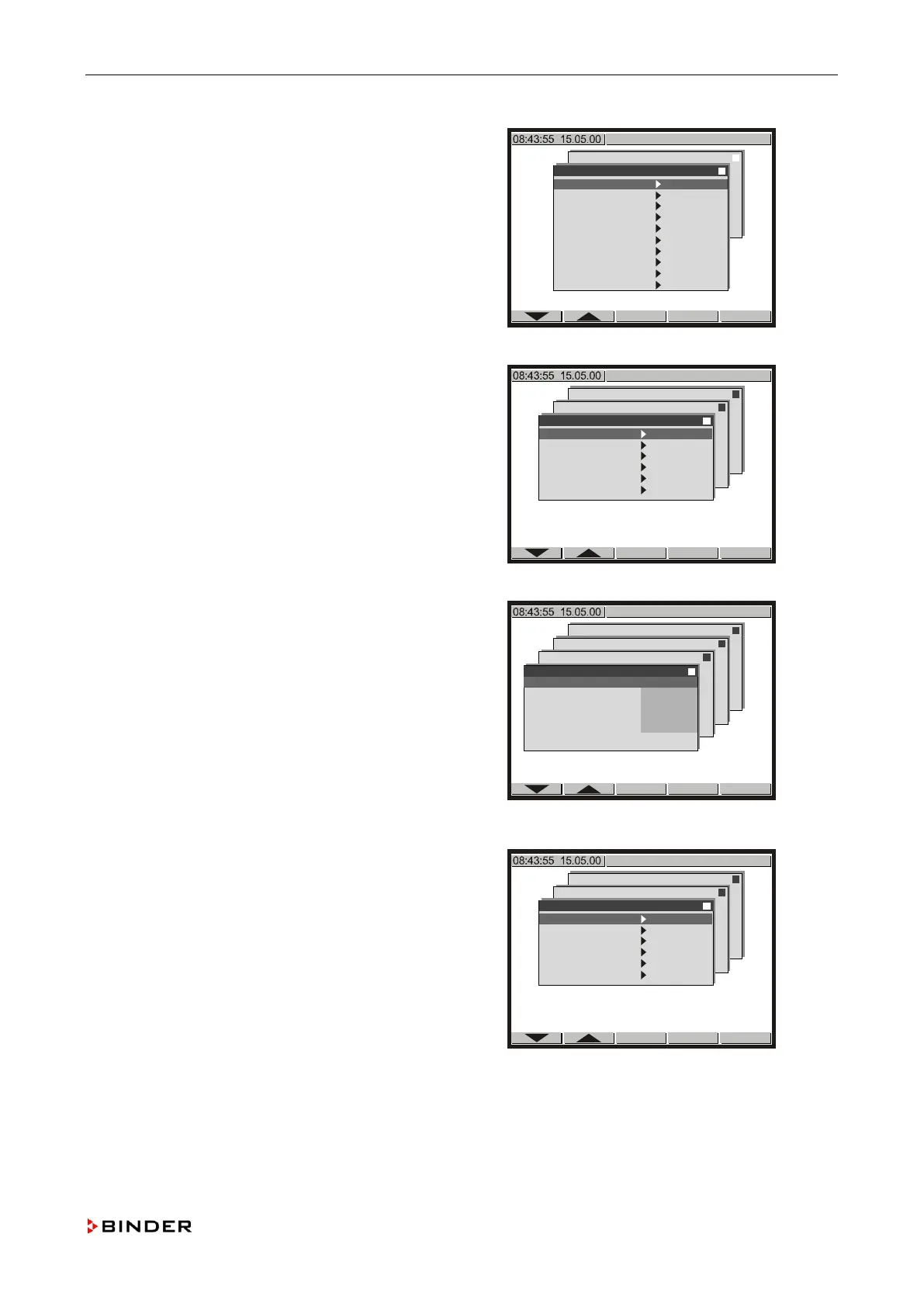

Use the buttons  or  to select the menu item
“Inp.Val. correct.” and
confirm with <ENTER>.
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level
Inp.Val. correct.
Analogue Inputs
Analogue Outputs
Bin. Inputs
Bin. Outputs
Anal. Inp. mTRON
Anal. Out. mTRON
Bin. Inp. mTRON
Bin. Out. mTRON
Memory Display

↓
Use the buttons  or  to select the menu item
“Analo
gue Input 1” and confirm with <ENTER>.
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

↓
Use the buttons  or  to select a menu item and confirm
with <ENTER>.
For each menu item a submenu will be opened.
Use the buttons
, , and  to key in the values given
below and confirm with <ENTER>.
State: Off
Start value X: 0.0
Start value W: 0.0
End value X: 1000.0
End value W: 1000.0
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

Analogue input 1
State
Off
Start Value X + 0.0
Start Value W
+ 0.0
End Value X +
1000.0
End Value W +1000.0

↓
Push <EXIT> to return to the menu
“Inp.Val. co
rrect.“.
Use the buttons
 or  to select the menu item
“Safety controller” and confirm with <ENTER>.
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

↓
