Repair work at the housing
1. Disconnect the unit from the mains.
2. Remove the lower housing cover at the front (chap. 5.1, page 34)
3. Remove the rear panel (chap. 5.3, page 36)
4. Lift the unit from the front or the rear with a fork lifter or lifting truck as much as necessary to
replace the castors.
5. Drive the axles (D) with a drift punch and a rubber mallet through the fixing disk (C) and re-
move the castors from the bottom.
6. Install the new castors from the bottom and let down the unit with the fork lifter or lifting truck.
Mind that the unit is standing on all its four castors.
7. Secure the axles from the top with new fixing disk (C)

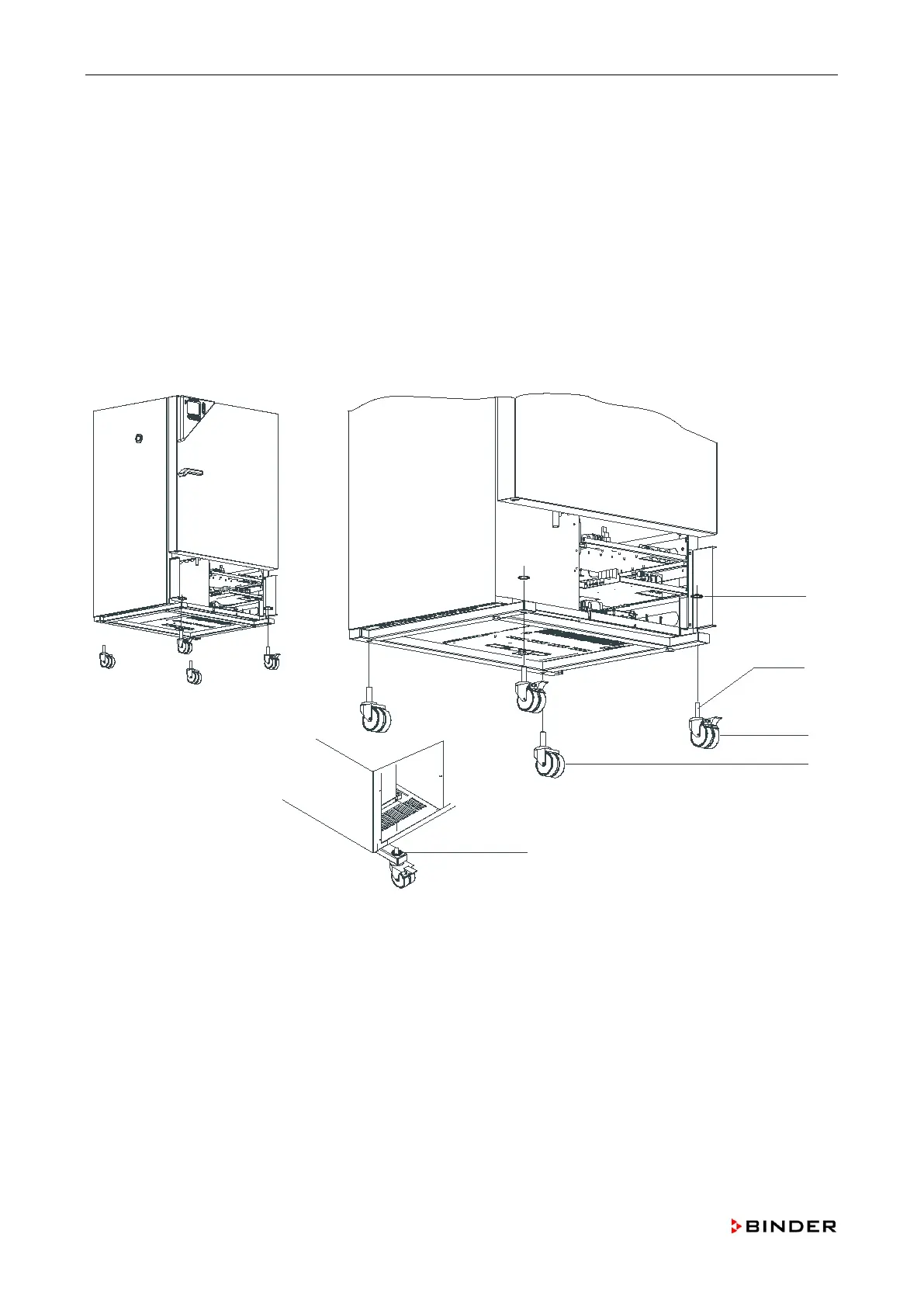

Figure 5: Replacing the castors
A Castors with lock
C Fixing disk
