Repair work at the inner and outer chamber
Following installation, fill the open spot around the connections with insulating foam.
Before mounting the inner chamber, check the distance between the heating element (D) and the rear panel
of the outer chamber (A). The heating element spacer (F) must be oriented with its long side towards the rear
panel of the outer chamber.

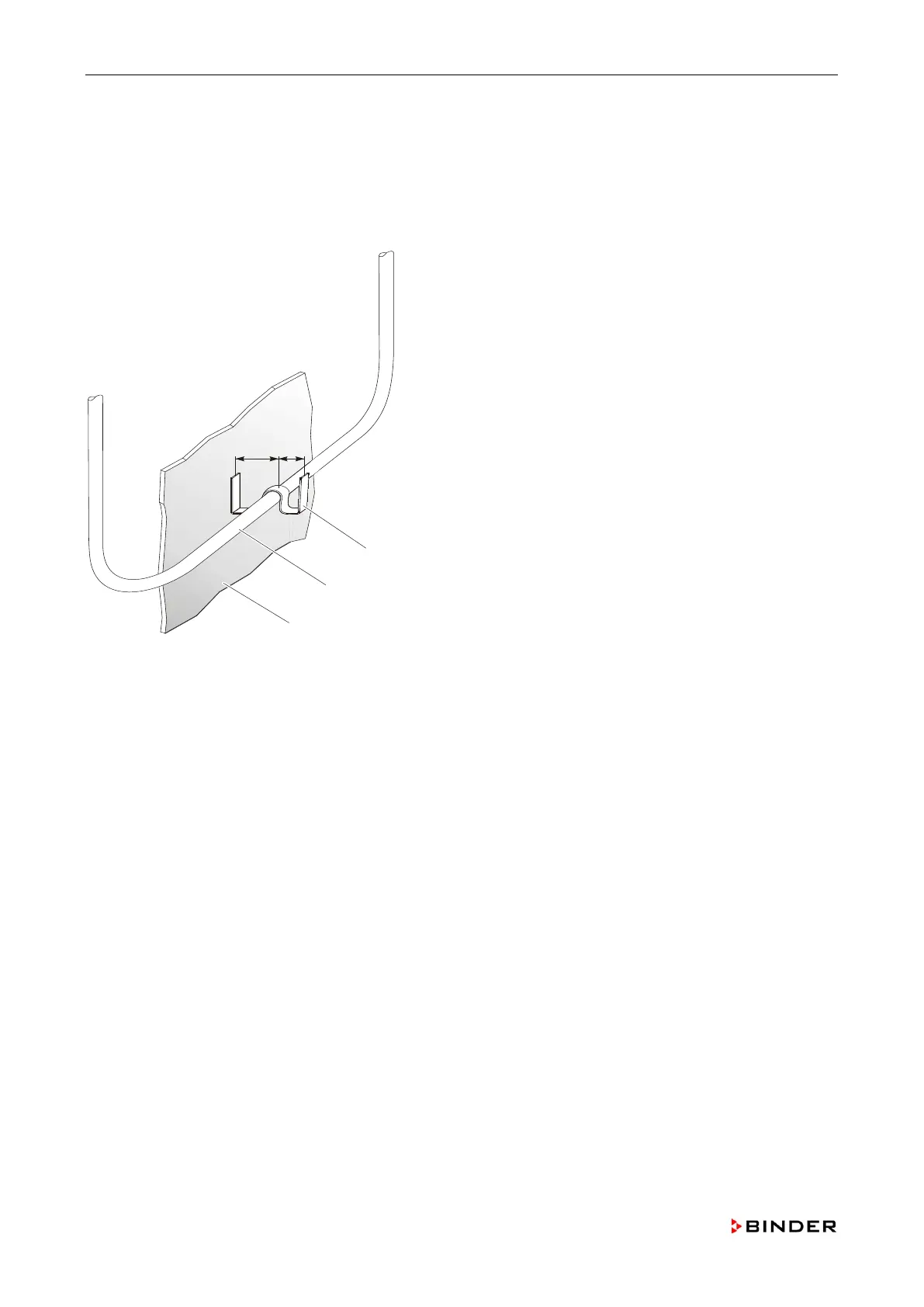

Figure 29: Mounting the heating element spacer
A Rear panel of the outer chamber
D Heating element
F Heating element spacer
