Repair work at the humidifying and dehumidifying system

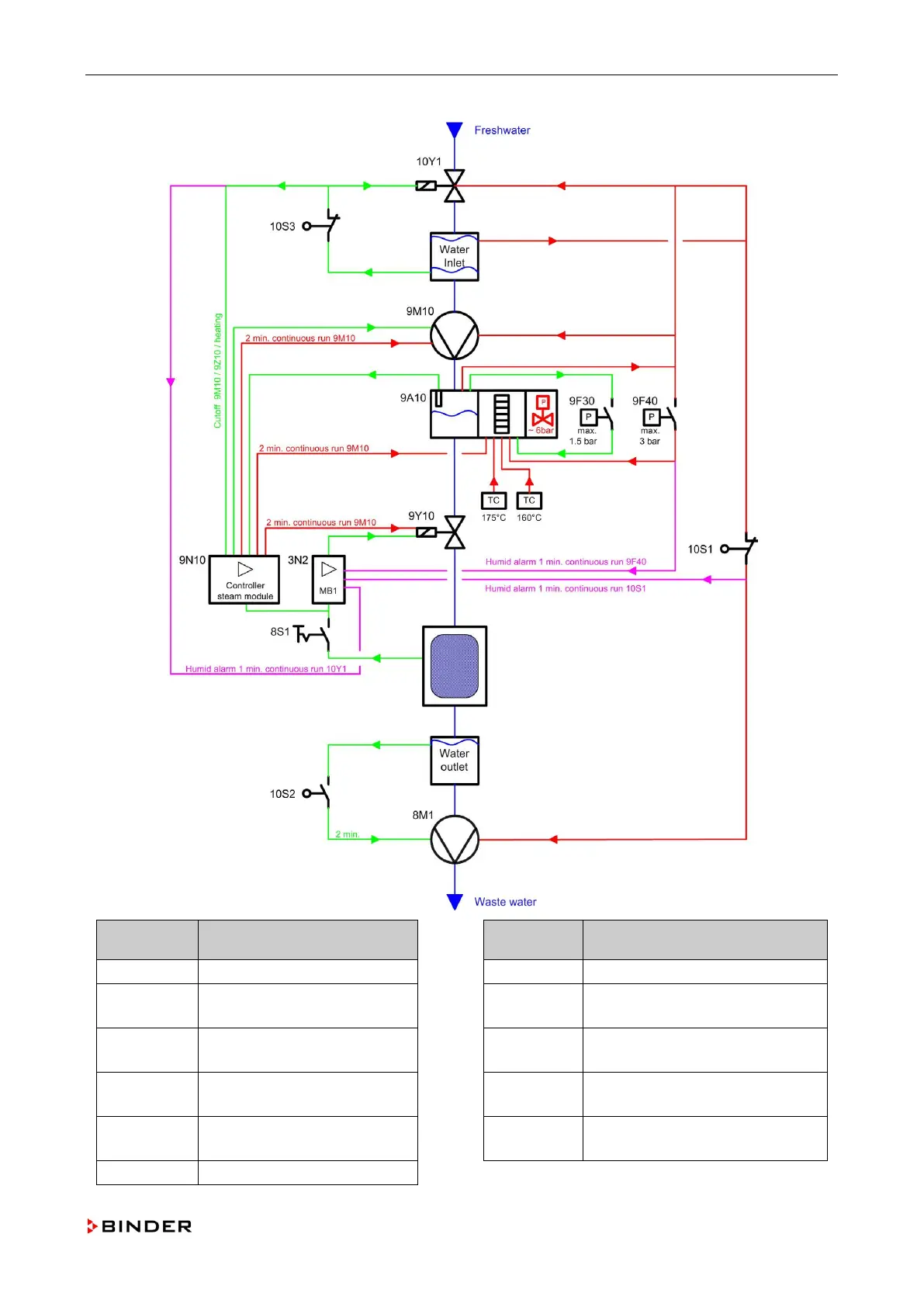

9.1.2 Flow chart humidity system
Equipment
code
Designation
Equipment
code
Designation
(-3N2)
Controller MB1 I / O board
(-9Y10)
Solenoid valve steam release
(-8M1)
Evacuation pump
(-10S1)
Float switch for filling level and
overflow sensor
(-8S1)
Humidity switch
(-10S2)
Side mounted float switch outlet
tank
(-9A10)
Steam boiler
(-10S3)
Side mounted float switch inlet
tank
(-9N10)
Control board humidification
module
(-10Y1)
Freshwater inlet valve
(-9M10)
Water pump
