Instruction manual A400 / A400FB Maintenance
6.054.98.5.10.06 en 8 - 3
8
Conveyor belt A400FB

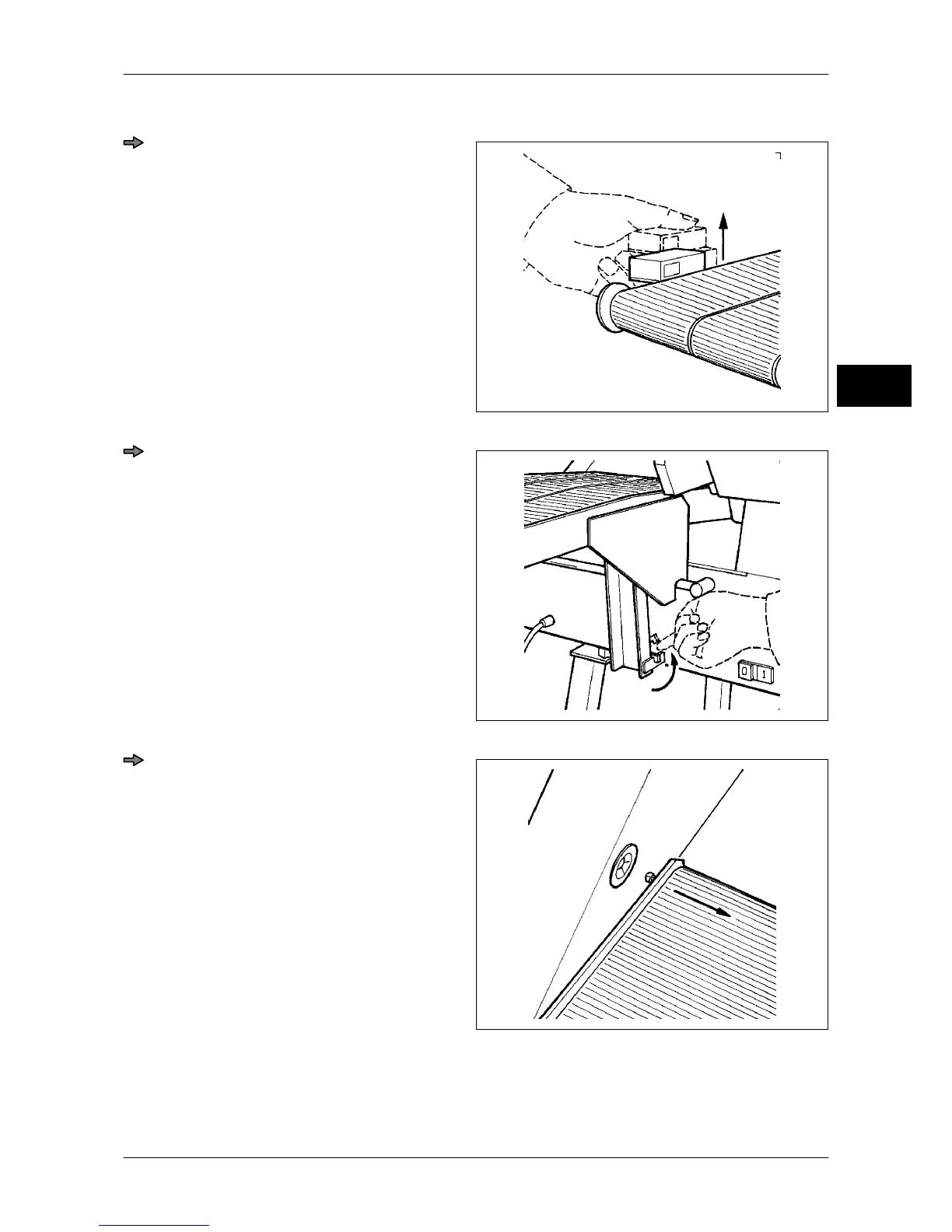

Fig. 37: Light sensor
Pull the light barrier upwards out of the
holder and hang in to the holder of the
machine.
Fig. 38: Unlock conveyor belt
Tilt the lock on the belt support back-
wards in the direction of the arrow.
Fig. 39: Decouple conveyor belt
Pull conveyor belt on support bar to-
wards operator.
The belt has been decoupled from shaft.
