Maintenance Instruction manual A400 / A400FB
8 - 16 6.054.98.5.10.06 en
8
Conveyor belt A400FB

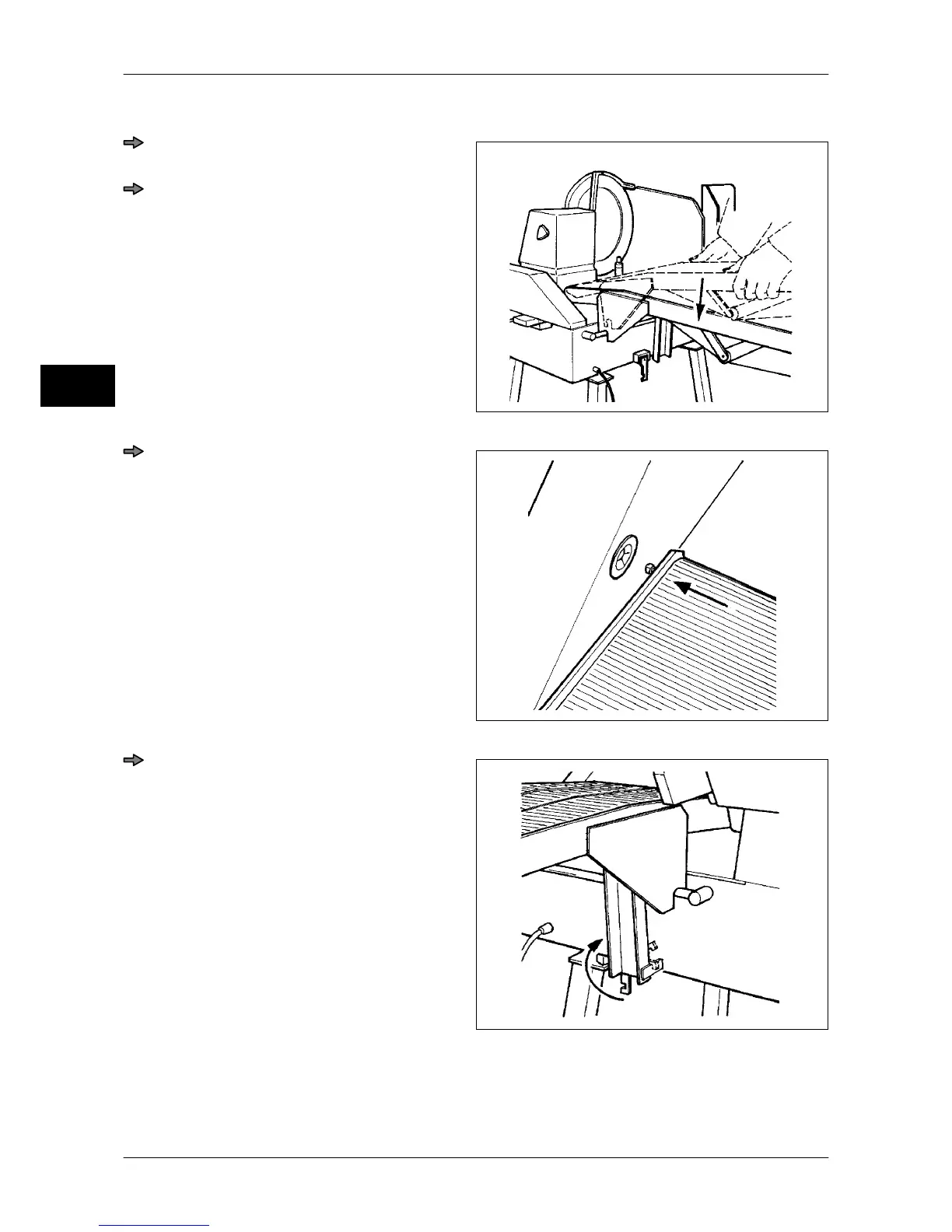

Fig. 67: Insert conveyor belt
Use both hands to hold the conveyor
belt on its sides.
Put the belt bearing down onto the take-
up pin, keeping it in a slight tilted posi-
tion.
Fig. 68: Couple conveyor belt
Push the belt as far as it will go towards
the coupling, if necessary turn the drive
shaft until it connects with the coupling
bolts.
Fig. 69: Lock conveyor belt
Secure the conveyor belt by setting the
lock at the belt support.
