Instruction manual A400 / A400FB Maintenance
6.054.98.5.10.06 en 8 - 15
8

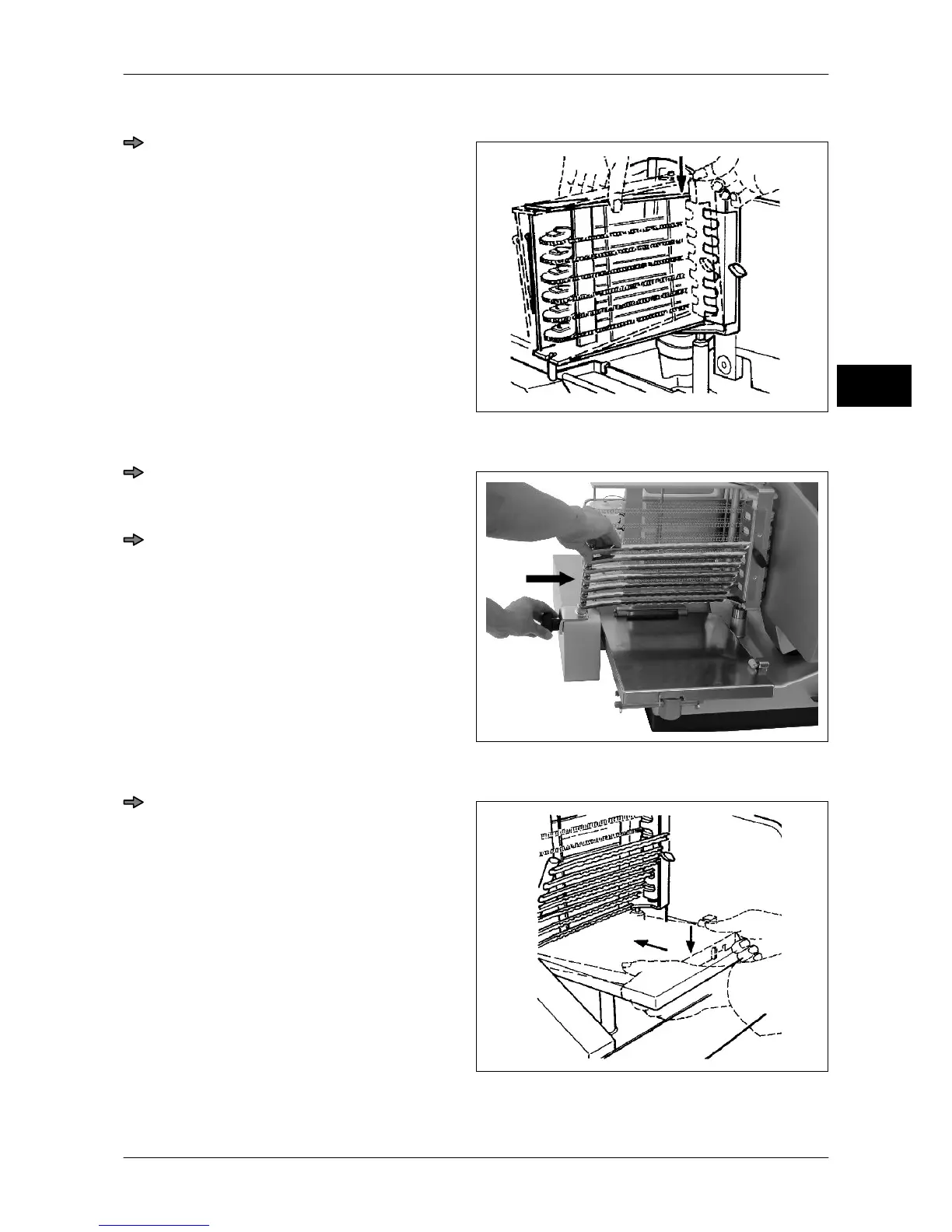

Chain frame
Fig. 64: Chain frame
Install chain frame with swiveled in feed
roller from the top in the holding fixtures
and drive shaft.
Depositing arm
Fig. 65: Depositing arm
Push depositing arm onto carriage shaft
and turn until the hub catches the
groove.
Fasten with three-square knob.
Depositing table A400
Fig. 66: Attaching the depositing table
Insert in a slightly slanting position into
the guide and push downwards to the
take-up.
